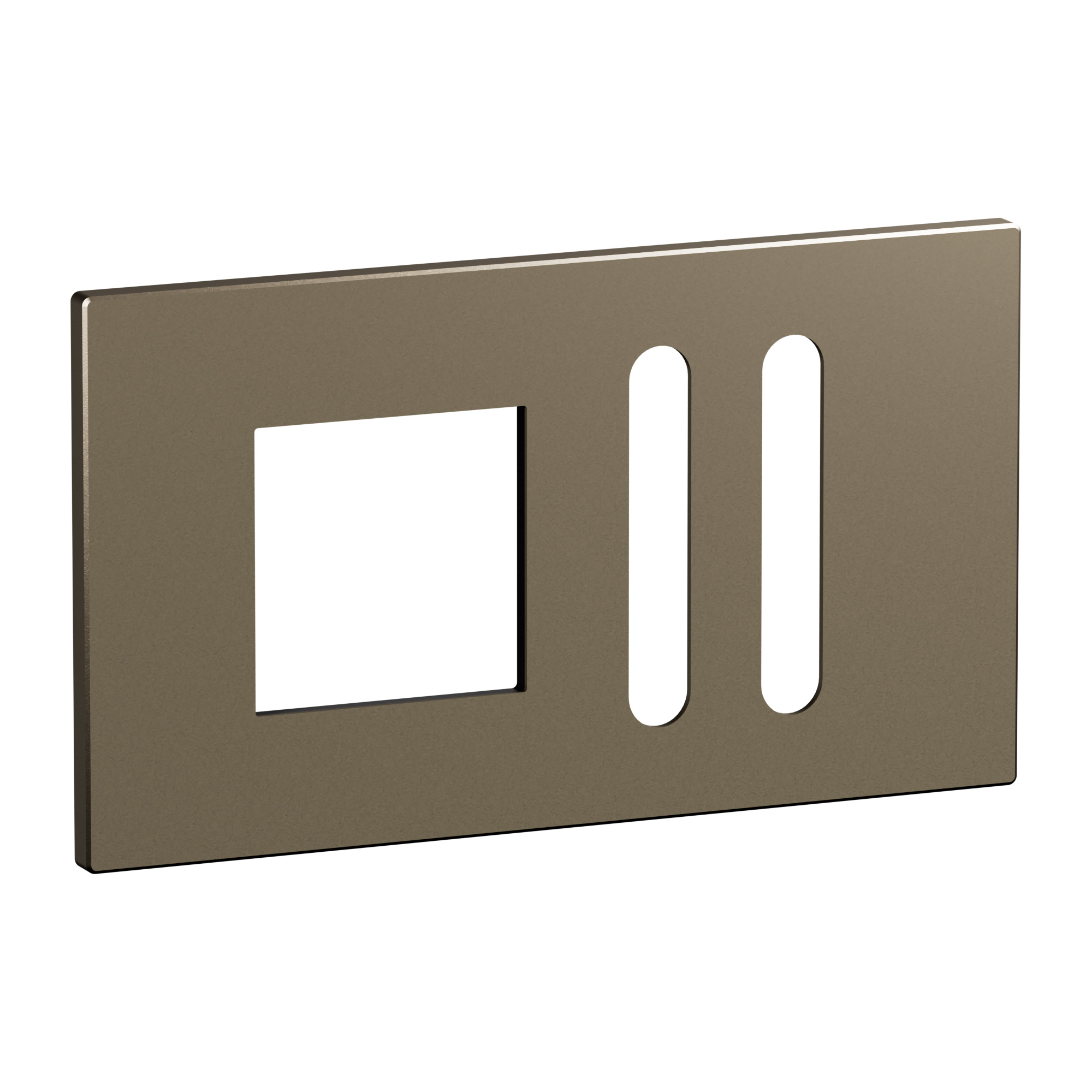

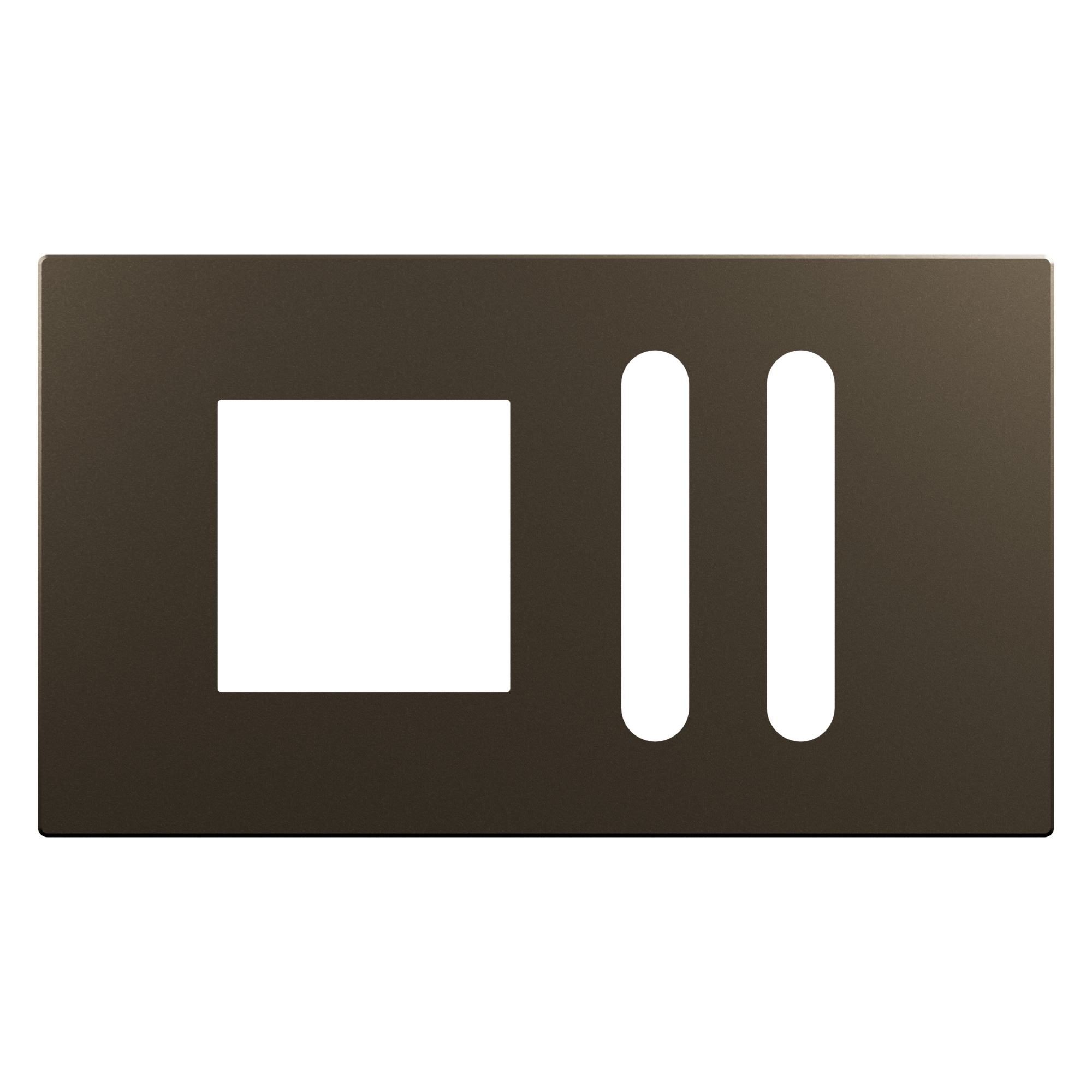

Arteor Advance - 4M hybrid plate for 2 modules + 2x1 module slender switches solid dark bronze - Matt lacquered aluminum

Arteor Advance Legrand

Arteor Advance - 4M hybrid plate for 2 modules + 2x1 module slender switches solid dark bronze - Matt lacquered aluminum

REF. AB1100SZ EAN. 3414972975353
This 4M hybrid plate in solid dark bronze combines refined design with a deep bronze metal finish. Its hybrid configuration supports 2 modules plus 2x1 slender switches and ensures precise flush-mounted installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4M hybrid plate in solid dark bronze combines refined design with a deep bronze metal finish. Its hybrid configuration supports 2 modules plus 2x1 slender switches and ensures precise flush-mounted installation.

Product characteristics
  • 4-module hybrid cover frame for 2 modules + 2x1-module slender switches, horizontal mounting, for domestic switching devices
  • Solid dark bronze, matt lacquered aluminum plate delivering a deep bronze finish with a refined, minimalist aesthetic
  • Front plate made of crystal polycarbonate for high surface quality and dimensional stability
  • Hybrid design integrating modular functions with slender switches to balance form and utility in Arteor Advance installations
  • Snap-on fastening, flush-mounted installation, halogen-free construction, IK02 impact resistance, 157x90x8.5mm, operating temperature -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep bronze finish evoking classic ambiance with cool sensation of metal
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04497EN-00.pdf pdf (0.52 Mo)
