Arteor Advance - 4M hybrid plate for 2 modules + 2x1 module slender switches - Brushed antique brass - Matt metal

Arteor Advance Legrand

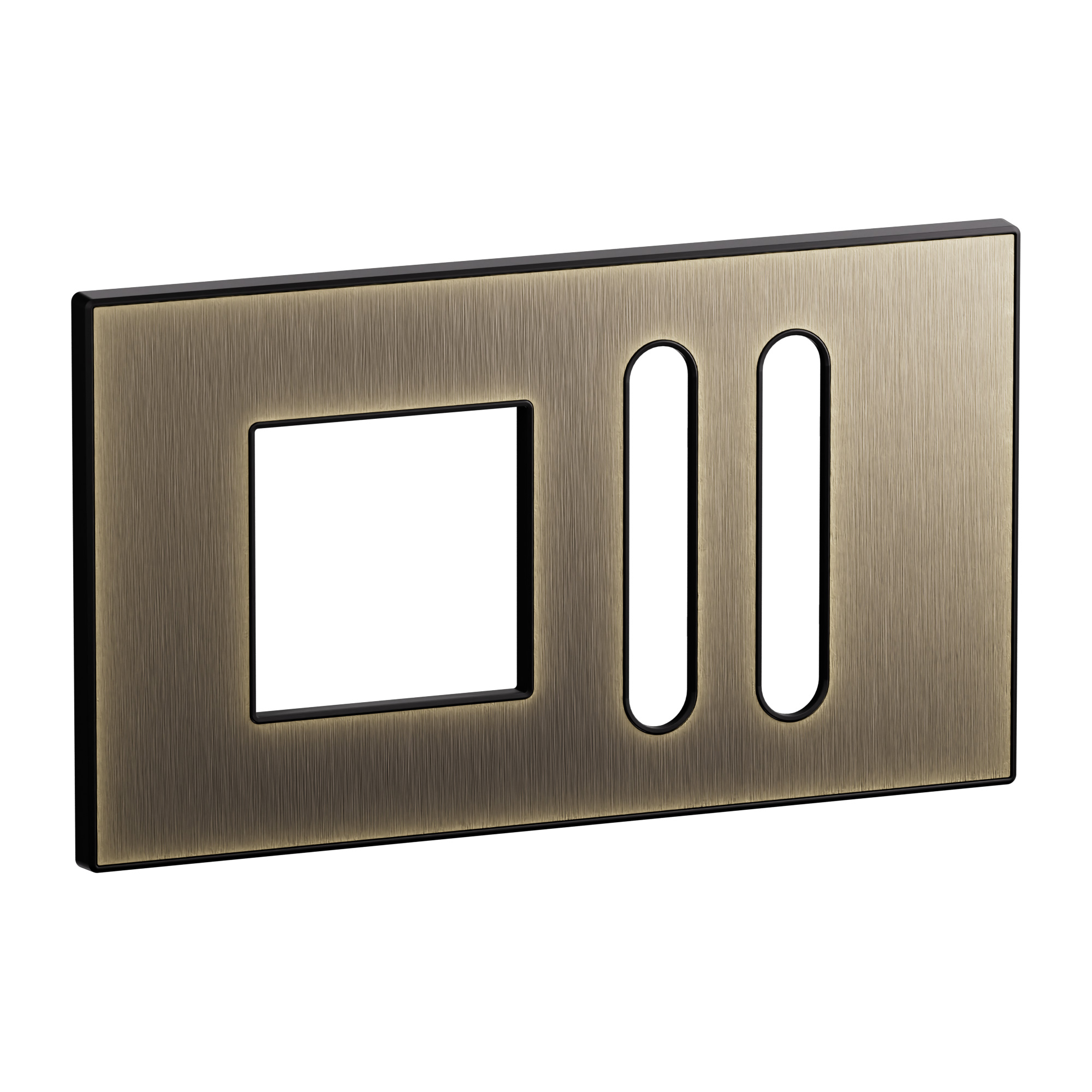

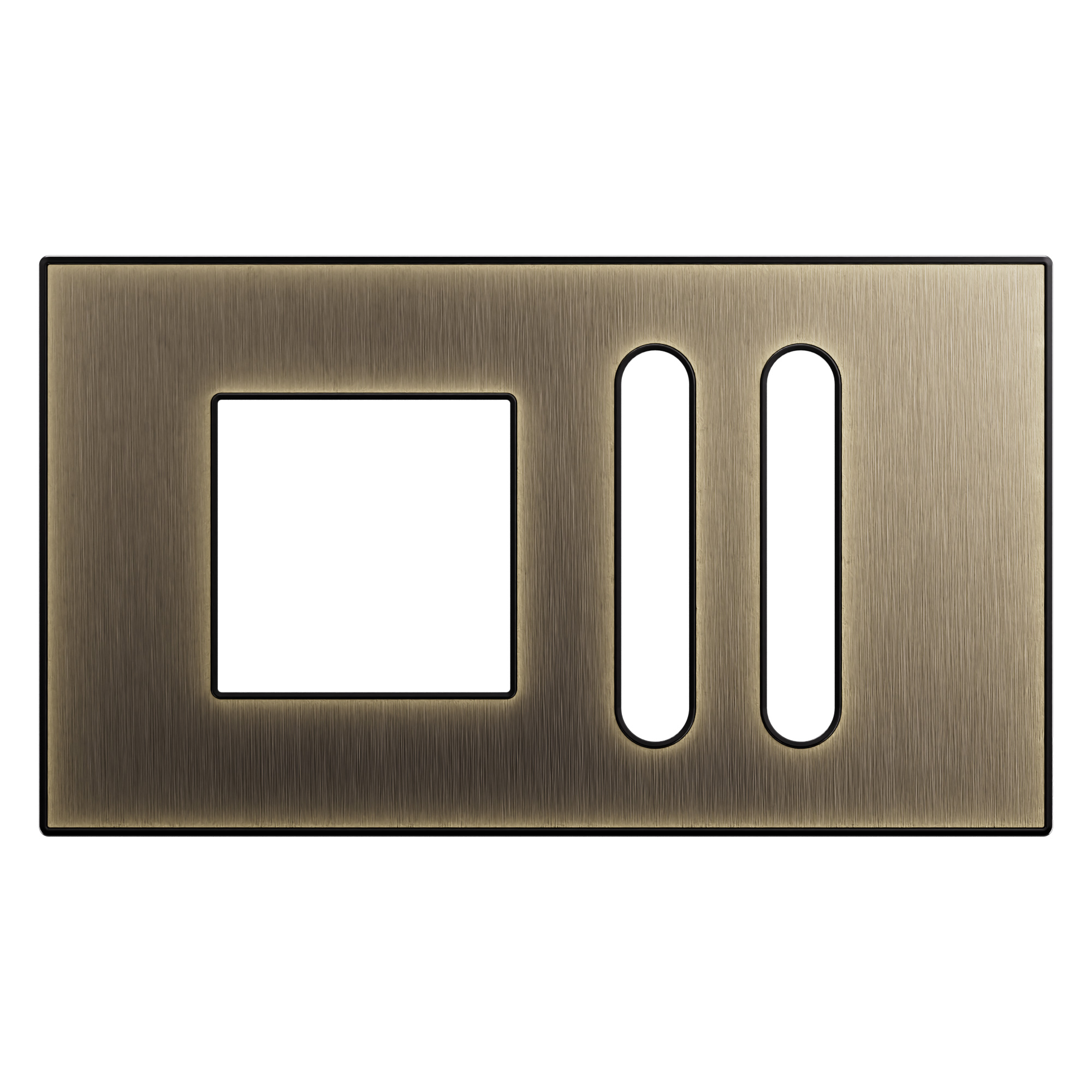

Arteor Advance - 4M hybrid plate for 2 modules + 2x1 module slender switches - Brushed antique brass - Matt metal

REF. AB1100AB EAN. 3414972975209
This 4M hybrid plate in brushed antique brass offers 2-module capacity with 2x1-module slender switches. Its matt lacquered brass finish delivers vintage character, while snap fastening and integrated adjuster ensure precise.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4M hybrid plate in brushed antique brass offers 2-module capacity with 2x1-module slender switches. Its matt lacquered brass finish delivers vintage character, while snap fastening and integrated adjuster ensure precise.

Product characteristics
  • Cover frame for domestic switching devices, 4-module hybrid plate configured for 2 modules+2x1-module slender switches
  • Brushed antique brass, matt lacquered finish delivering a refined, vintage aesthetic with soft golden highlights
  • Plate made of metal, high-quality brass, halogen free, ensuring robust mechanical performance and compliance with demanding interior specifications
  • Hybrid design integrating modular functions with minimalist geometry, optimized for horizontal flush-mounted installation (157x90x8.5mm)
  • Snap-on fastening with integrated adjuster for precise wall alignment; recommended for indoor use within -5 to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • The antique brass finish with the brushed effect, blends darkened shades with soft golden highlights for a vintage character
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Brass
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Brass
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04495EN-00.pdf pdf (0.52 Mo)
