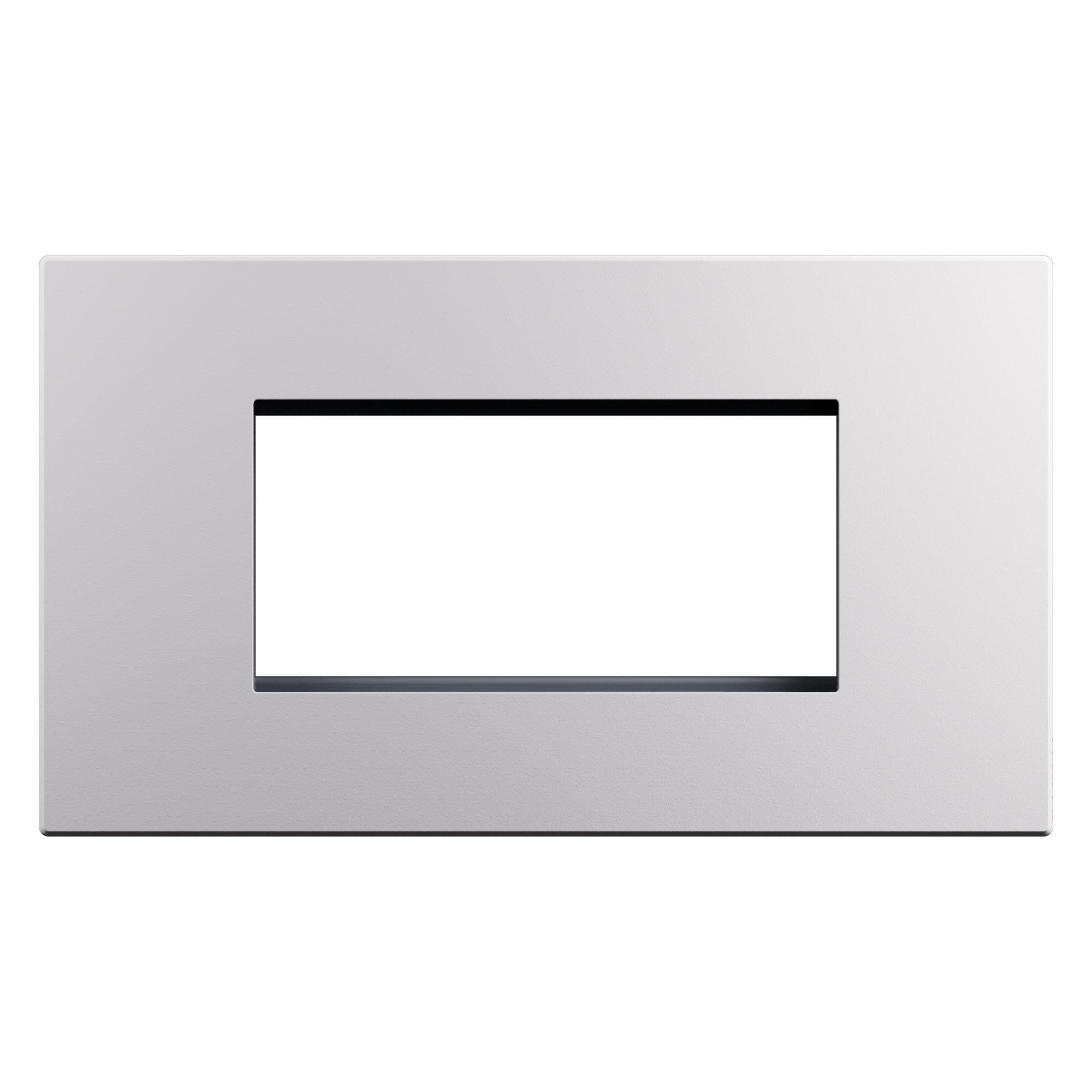

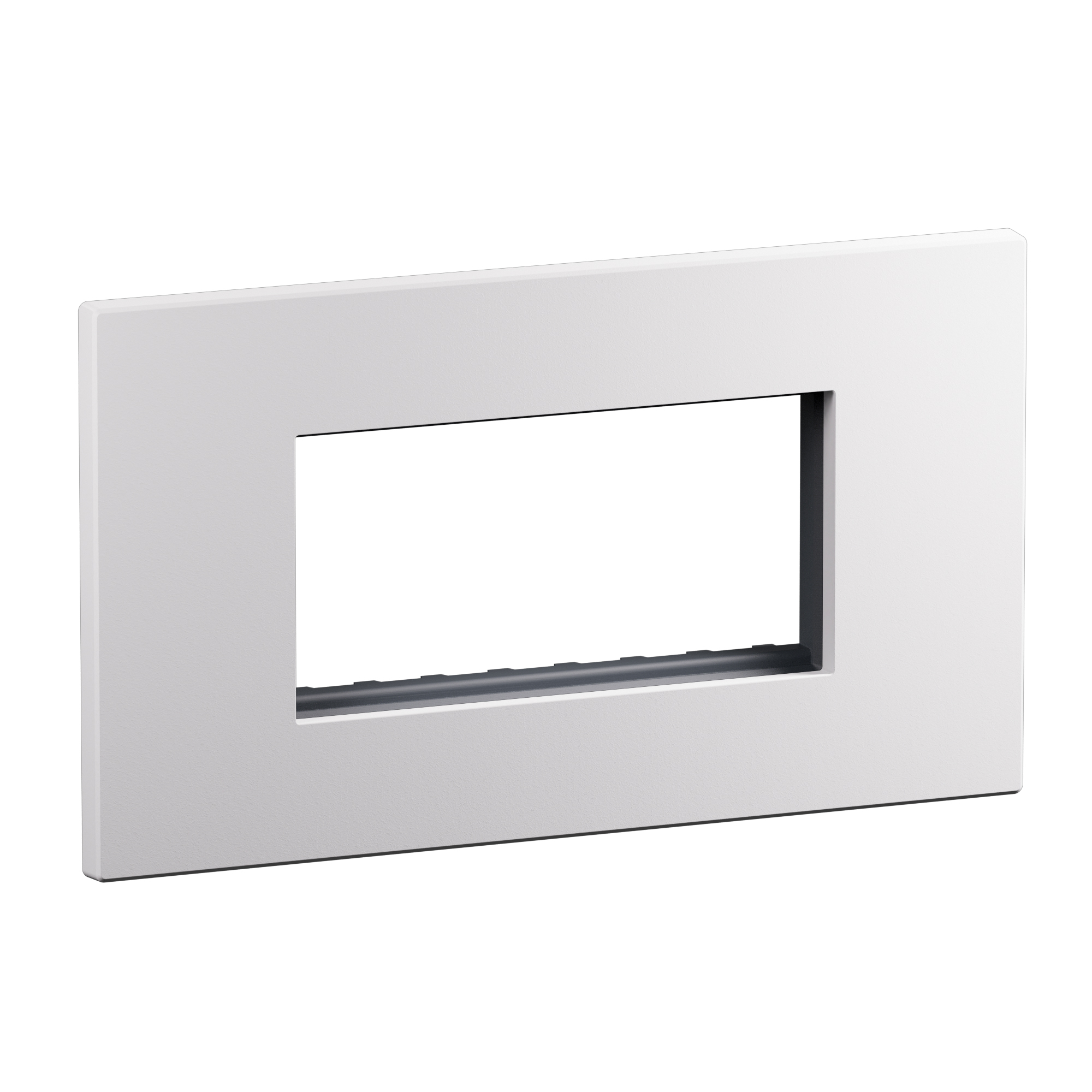

Arteor Advance - 4 modules plate+frame matt white - 4 modules horizontal flush-mount cover frame - Halogen-free thermoplastic

Arteor Advance Legrand

Arteor Advance - 4 modules plate+frame matt white - 4 modules horizontal flush-mount cover frame - Halogen-free thermoplastic

REF. AC1203MW EAN. 3414972738088
This 4 modules plate+frame matt white offers four-module capacity and halogen-free thermoplastic construction for robust, flush-mounted installations.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4 modules plate+frame matt white offers four-module capacity and halogen-free thermoplastic construction for robust, flush-mounted installations.

Product characteristics
  • Four-module cover frame for domestic switching devices, providing a 4x1 horizontal module configuration for compact multi-gang installations
  • Matt white finish (similar to RAL 9003) with a powdery, smooth aspect for a contemporary, low-glare appearance
  • Plate and frame made of halogen-free thermoplastic polycarbonate for enhanced mechanical strength and improved fire behavior
  • Square, minimalist design enabling modularity and flexibility in a compact configuration for modern wiring device layouts
  • Flush-mounted, snap-on plate+frame assembly with integrated adjuster to ensure precise wall alignment; dimensions 157x90x8.5mm, operating from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Powdery white with a smooth matt aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
