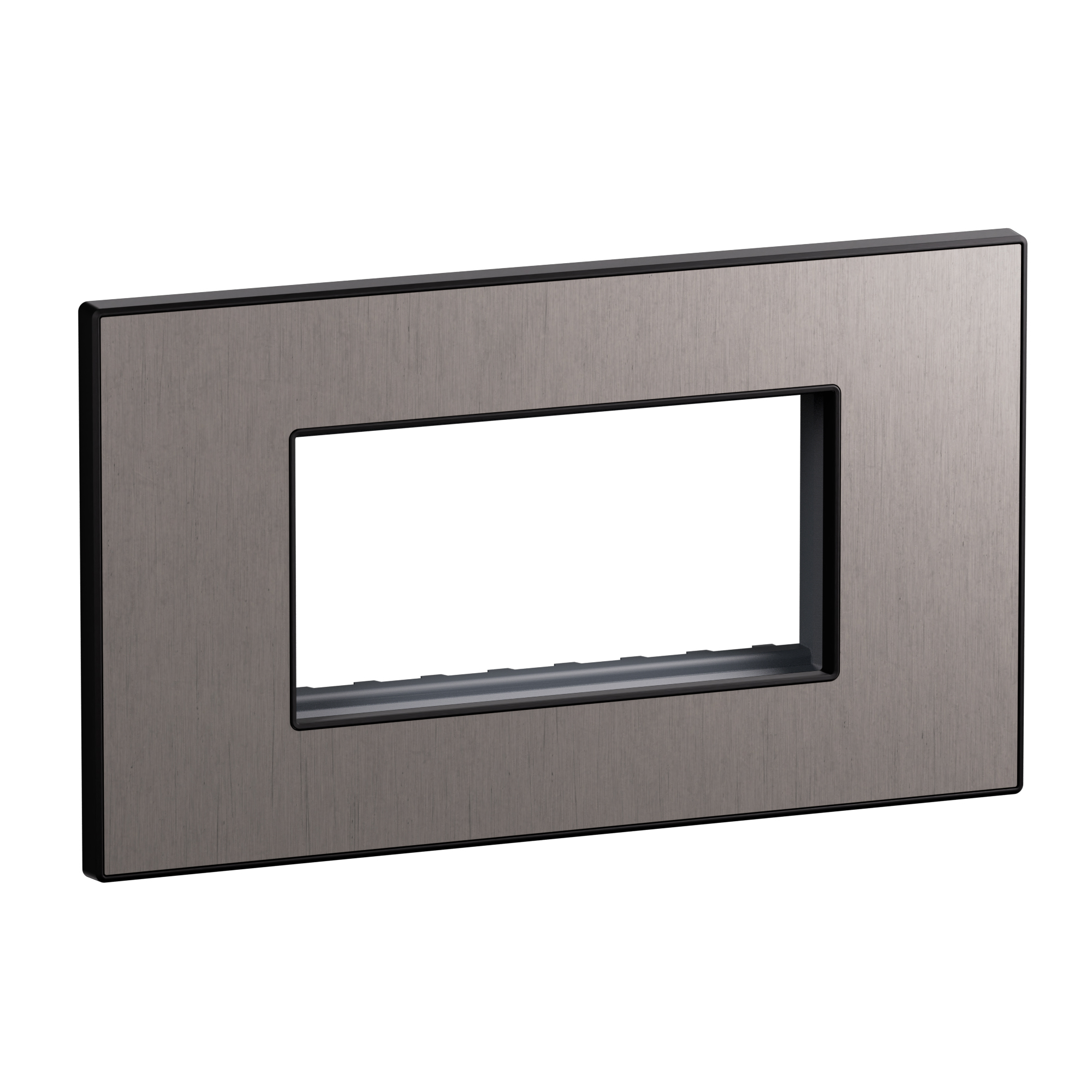

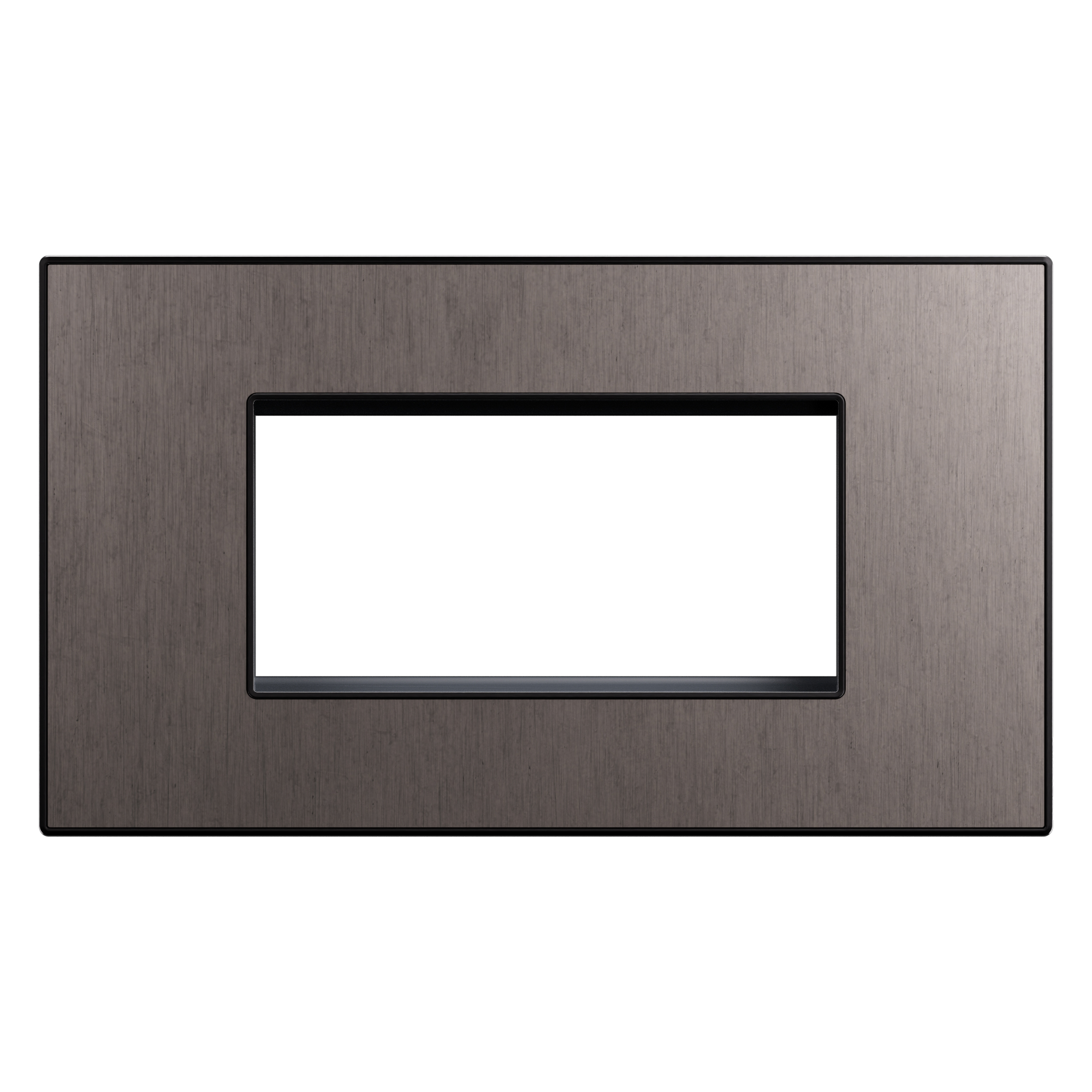

Arteor Advance - 4 modules plate+frame dark aluminum - 4-module horizontal cover frame - Brushed matt grey aluminum

Arteor Advance Legrand

Arteor Advance - 4 modules plate+frame dark aluminum - 4-module horizontal cover frame - Brushed matt grey aluminum

REF. AC1203DA EAN. 3414972737968
This 4 modules plate+frame dark aluminium offers refined, square design and real brushed aluminum with a matt warm grey reflection. Its snap fastening ensures precise flush-mounted installation. Halogen-free construction and -5° C to 35° C
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 4 modules plate+frame dark aluminium offers refined, square design and real brushed aluminum with a matt warm grey reflection. Its snap fastening ensures precise flush-mounted installation. Halogen-free construction and -5° C to 35° C

Product characteristics
  • 4 modules horizontal plate and frame for domestic switching devices, providing a single 4x1module row for compact multi-gang configurations
  • Dark aluminum finish in warm matt gray for a contemporary technical aesthetic matching Arteor Advance devices
  • Front plates made of real brushed aluminum set in a cradle, delivering a refined, high-quality metallic appearance
  • Square design enabling modularity and flexibility in a compact footprint for optimized wall space usage
  • Flush-mounted, snap-on frame (157x90x8.5mm), halogen free and recommended for indoor use, with adjuster for precise wall alignment
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
