Arteor Advance - 4 modules hybrid plate for 2 modules + 2x1 module slender switches solid rose - Matt aluminum - Horizontal flush mount

Arteor Advance Legrand

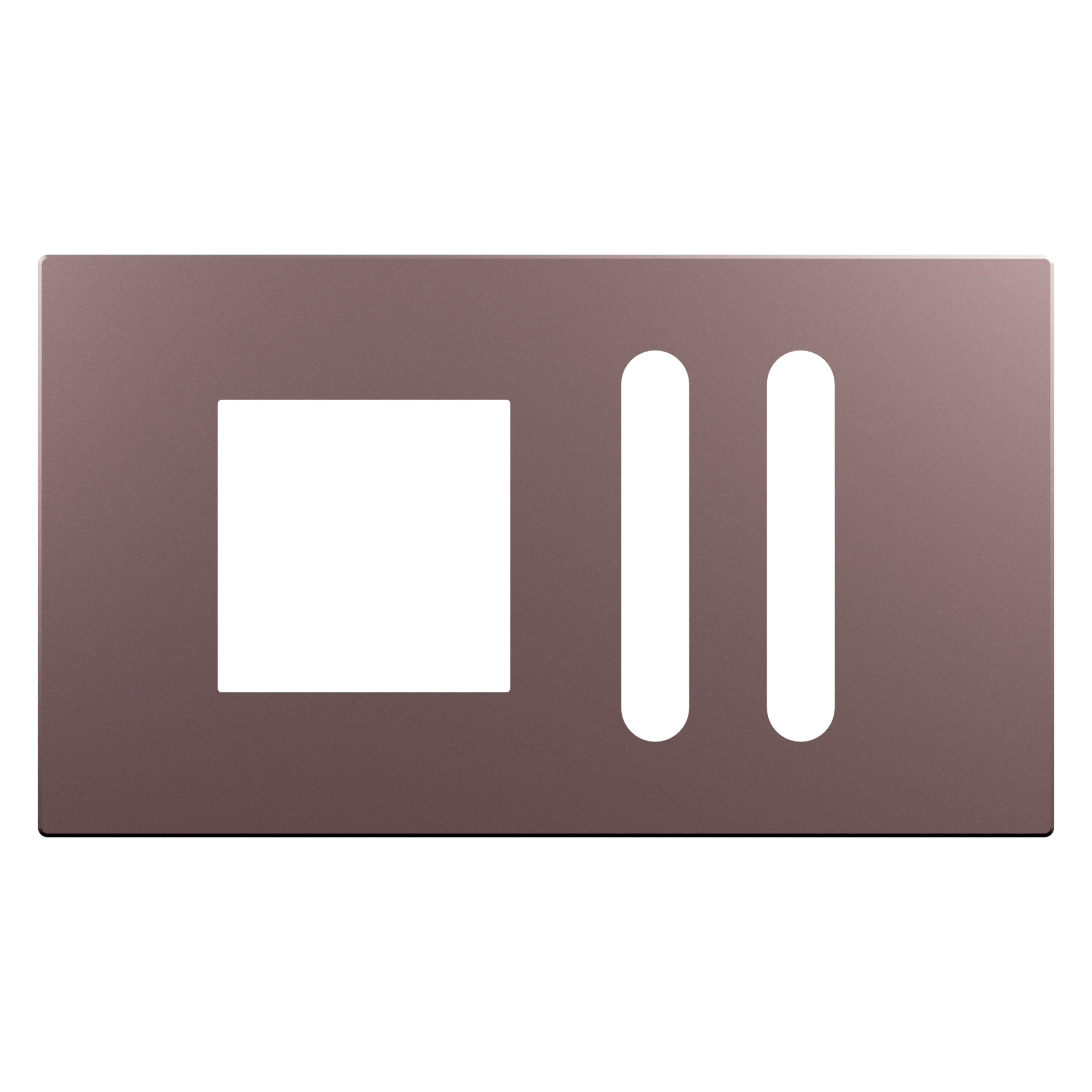

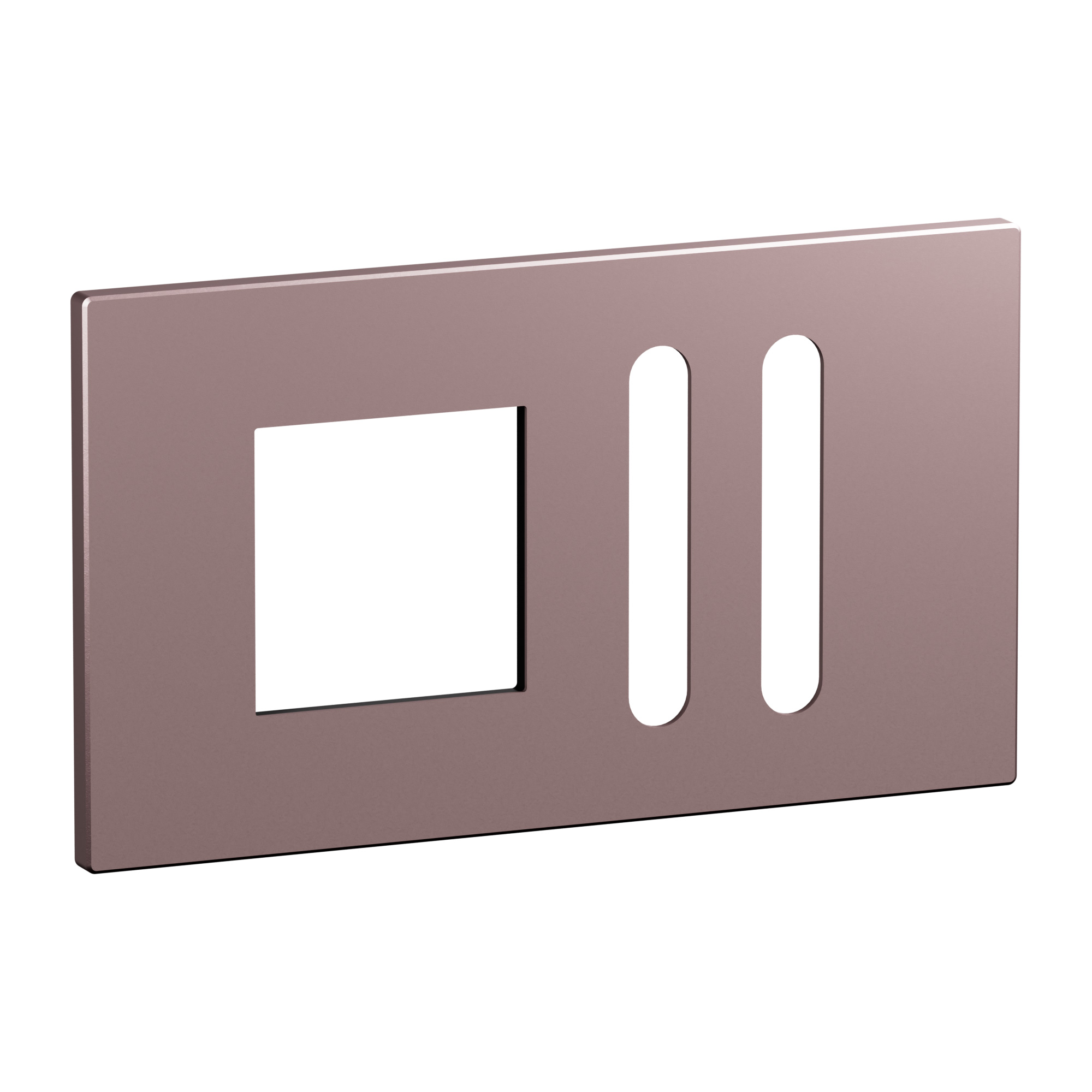

Arteor Advance - 4 modules hybrid plate for 2 modules + 2x1 module slender switches solid rose - Matt aluminum - Horizontal flush mount

REF. AB1100SR EAN. 3414972975322
The 4 modules hybrid plate for 2 modules + 2x1 module slender switches solid rose combines a refined hybrid design with a pink finish and cool metallic sensation, ideal for precise flush-mounted Arteor Advance modular configurations.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

The 4 modules hybrid plate for 2 modules + 2x1 module slender switches solid rose combines a refined hybrid design with a pink finish and cool metallic sensation, ideal for precise flush-mounted Arteor Advance modular configurations.

Product characteristics
  • Solid rose finish in pink with a subtle blush effect and cool metal sensation, aligned with the refined Arteor Advance design language.
  • Plates are made of crystal polycarbonate, providing high optical clarity and surface quality while ensuring halogen-free, durable performance.
  • Hybrid 4-module cover frame configuration for 2 modules + 2x1-module slender switches, integrating modular functions with refined minimalism.
  • Horizontal flush-mounted cover frame in lacquered matt aluminum (IK02) with snap fastening for precise, robust installation on domestic switching devices.
  • Integrated adjuster ensures perfect wall alignment; recommended for indoor use within -5° C to 35° C operating temperature range.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Pink finish evoking a subtle blush effect with cool sensation of metal
  • Refined design
  • Hybrid design integrates modular functions with refined minimalism, achieving a perfect balance of form and utility

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Pink
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04497EN-00.pdf pdf (0.52 Mo)
