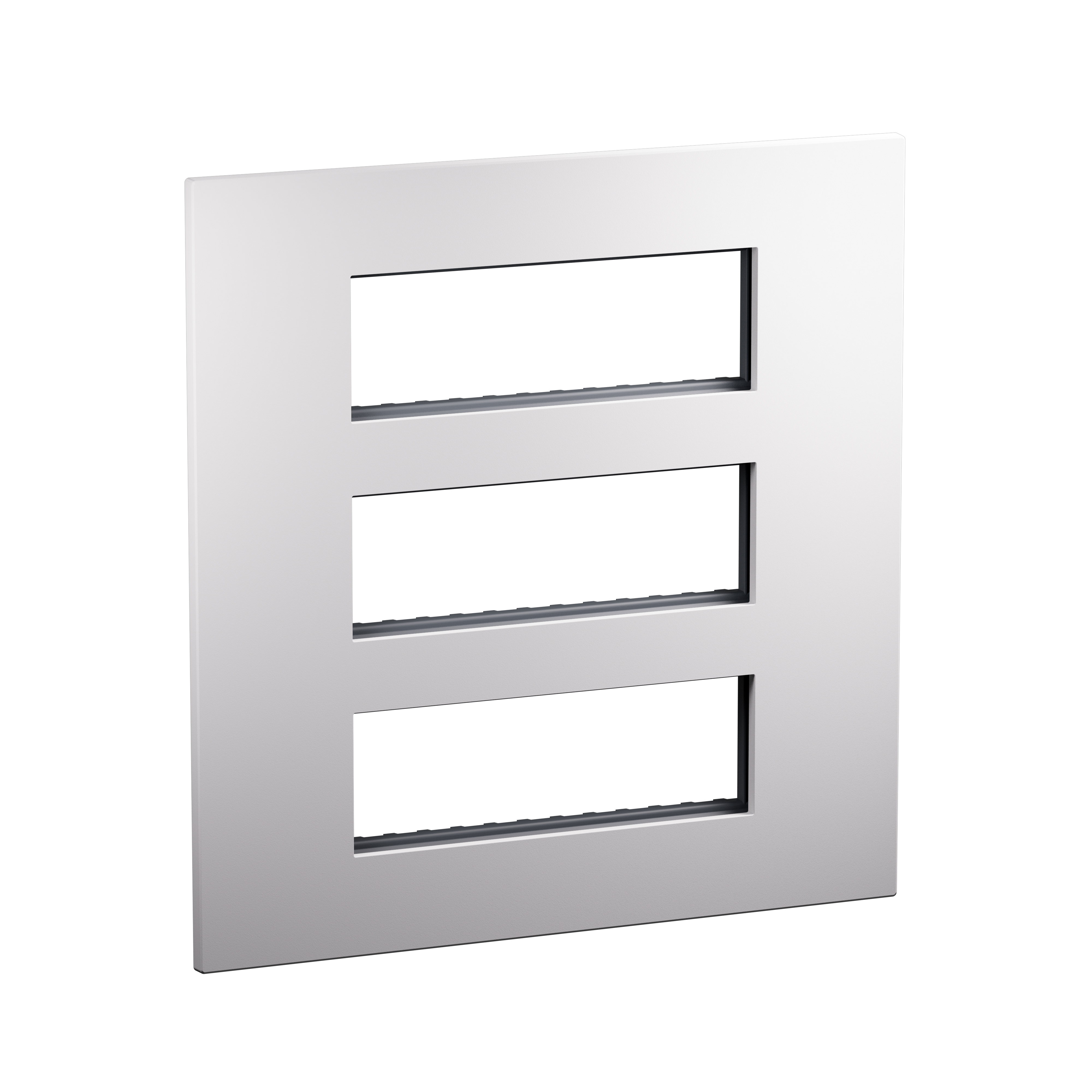

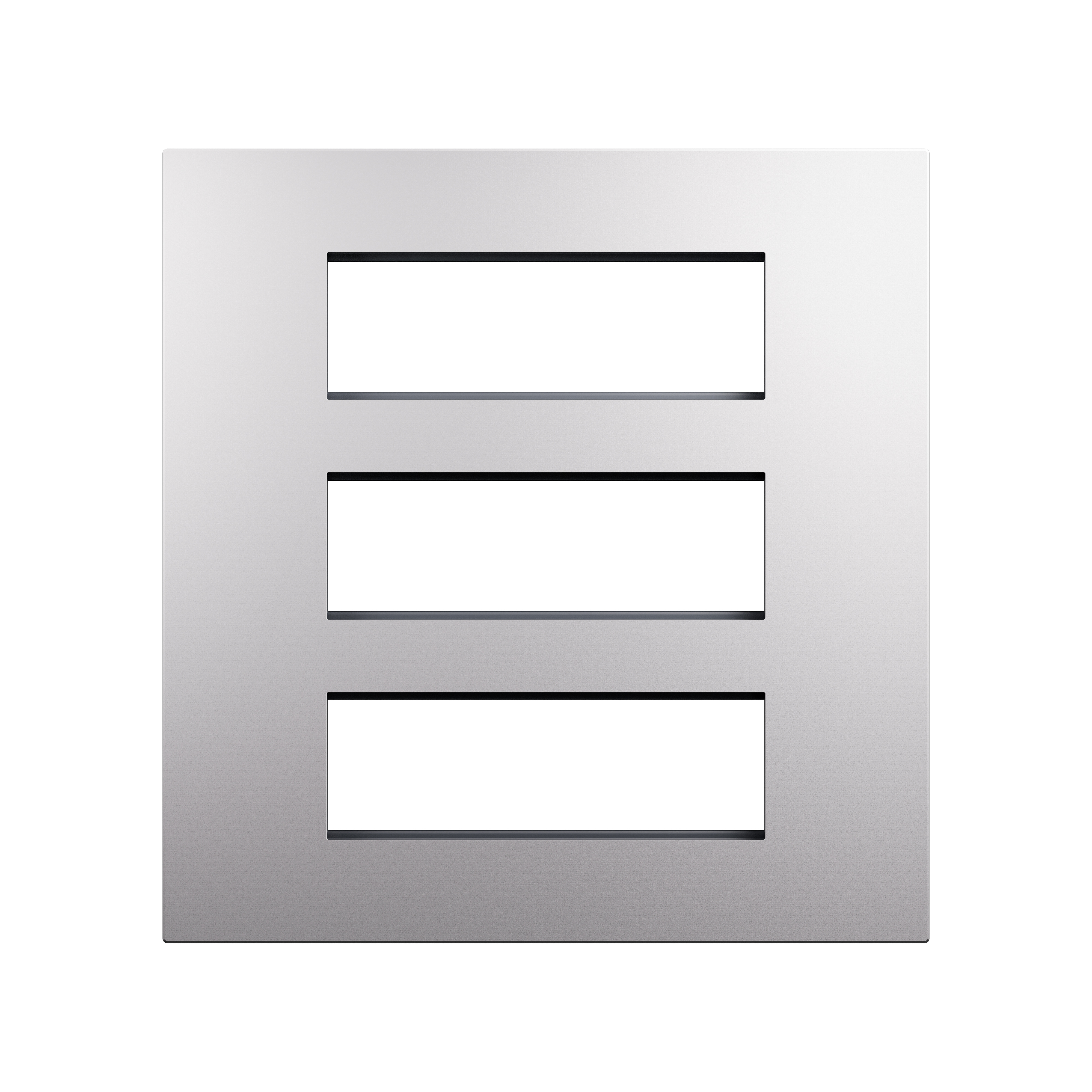

Arteor Advance - 3x6 modules plate+frame matt white - 3x6 modular horizontal/vertical - Matt white thermoplastic, halogen free

Arteor Advance Legrand

Arteor Advance - 3x6 modules plate+frame matt white - 3x6 modular horizontal/vertical - Matt white thermoplastic, halogen free

REF. AC1211MW EAN. 3414972739801
This 3x6 modules plate+frame in matt white thermoplastic is halogen-free and designed for robust flush-mounted installation. Its square, minimalist design ensures modularity, while snap fastening and an integrated adjuster guarantee.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 3x6 modules plate+frame in matt white thermoplastic is halogen-free and designed for robust flush-mounted installation. Its square, minimalist design ensures modularity, while snap fastening and an integrated adjuster guarantee.

Product characteristics
  • 3x6-module cover frame providing 3 vertical units and 6 horizontal modules for high-density domestic switching configurations
  • Matt white finish (similar to RAL 9003) with smooth, powdery aspect for a contemporary, low-glare aesthetic
  • Plate and frame manufactured from halogen-free thermoplastic polycarbonate for enhanced mechanical strength and safety
  • Square, horizontal flush-mounted design (237.5x246x8.5mm) enabling modularity and compact wall integration
  • Snap-on fastening with integrated adjuster to ensure precise, flush alignment on the wall for indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Powdery white with a smooth matte aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 3
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 3
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 237.5 mm
Height 246 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
