Arteor Advance - 3x2 modules French/Schuko plate matt black - 6 horizontal modules - Matt thermoplastic deep black IP20 flush-mounted

Arteor Advance Legrand

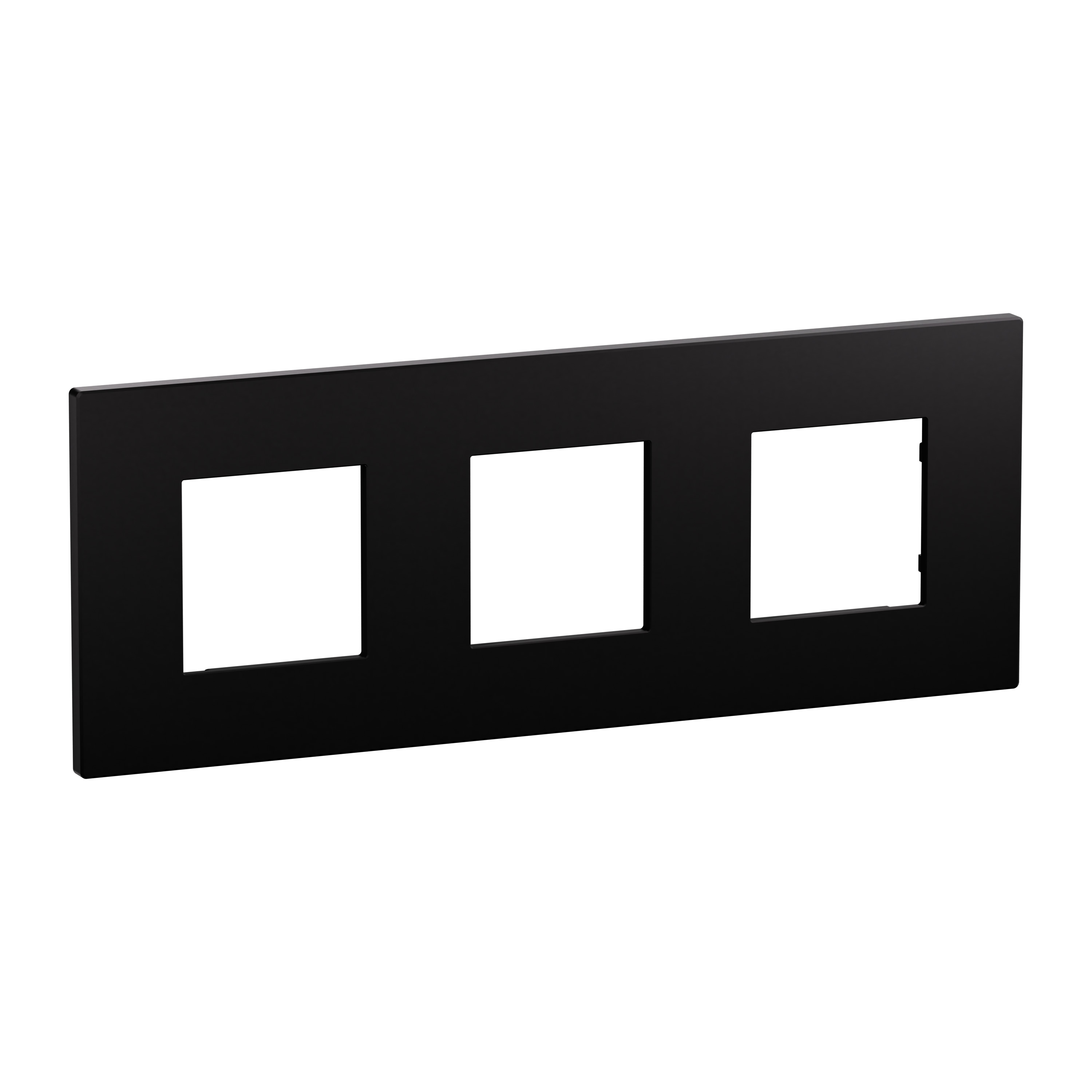

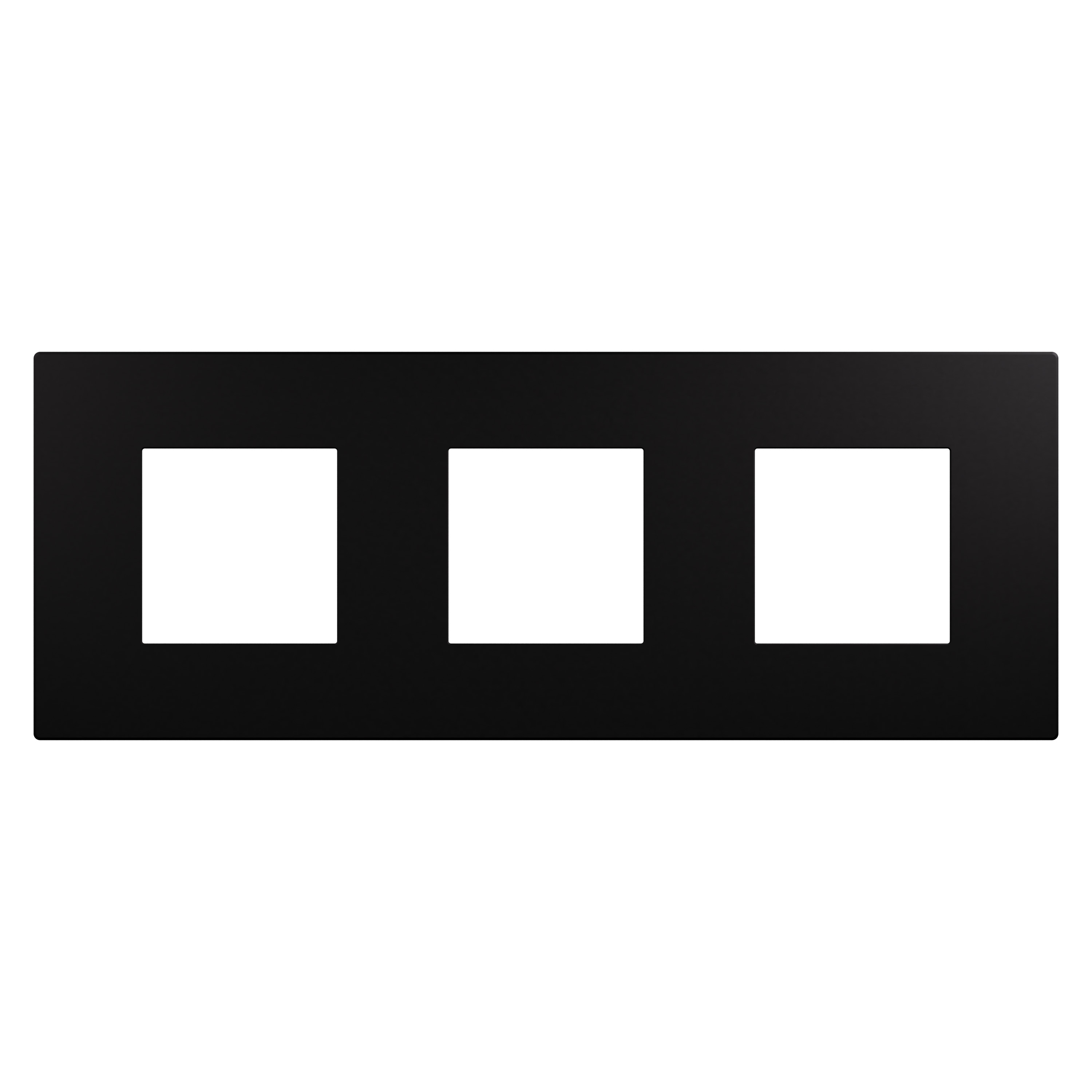

Arteor Advance - 3x2 modules French/Schuko plate matt black - 6 horizontal modules - Matt thermoplastic deep black IP20 flush-mounted

REF. AC1123MB EAN. 3414973070224
This 3x2 modules French/Schuko plate in matt black thermoplastic offers IP20 protection and halogen-free safety. Its deep black matt finish and minimalist square design ensure long-term aesthetics. Snap fastening enables flexible flush
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 3x2 modules French/Schuko plate in matt black thermoplastic offers IP20 protection and halogen-free safety. Its deep black matt finish and minimalist square design ensure long-term aesthetics. Snap fastening enables flexible flush

Product characteristics
  • 3x2 modules French/Schuko cover frame enabling up to 6 horizontal modules for high-density configurations
  • Deep matt black finish providing a minimalist, contemporary aesthetic that coordinates with modern devices
  • Plate manufactured from thermoplastic polycarbonate for high mechanical strength and long-term dimensional stability
  • Square-format front geometry supporting modularity and flexible arrangement of mechanisms within the frame
  • Flush-mounted IP20 cover frame with snap fastening, 237.5x90x8.5mm, suitable for wall duct and subfloor duct box installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Deep black with a smooth matte aspect
  • Minimalist design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 237.5 mm
Height 90 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04877EN-00.pdf pdf (0.53 Mo)
