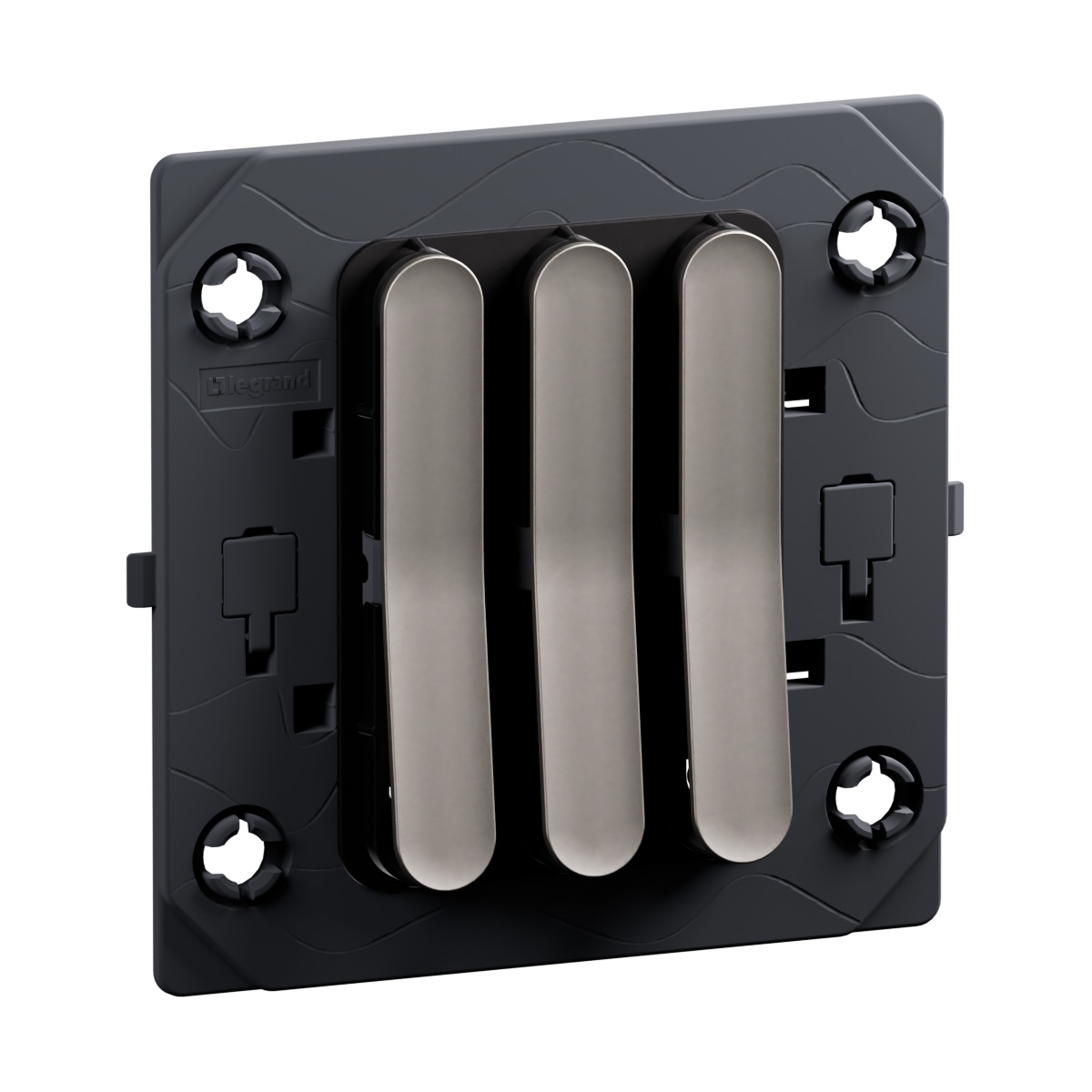

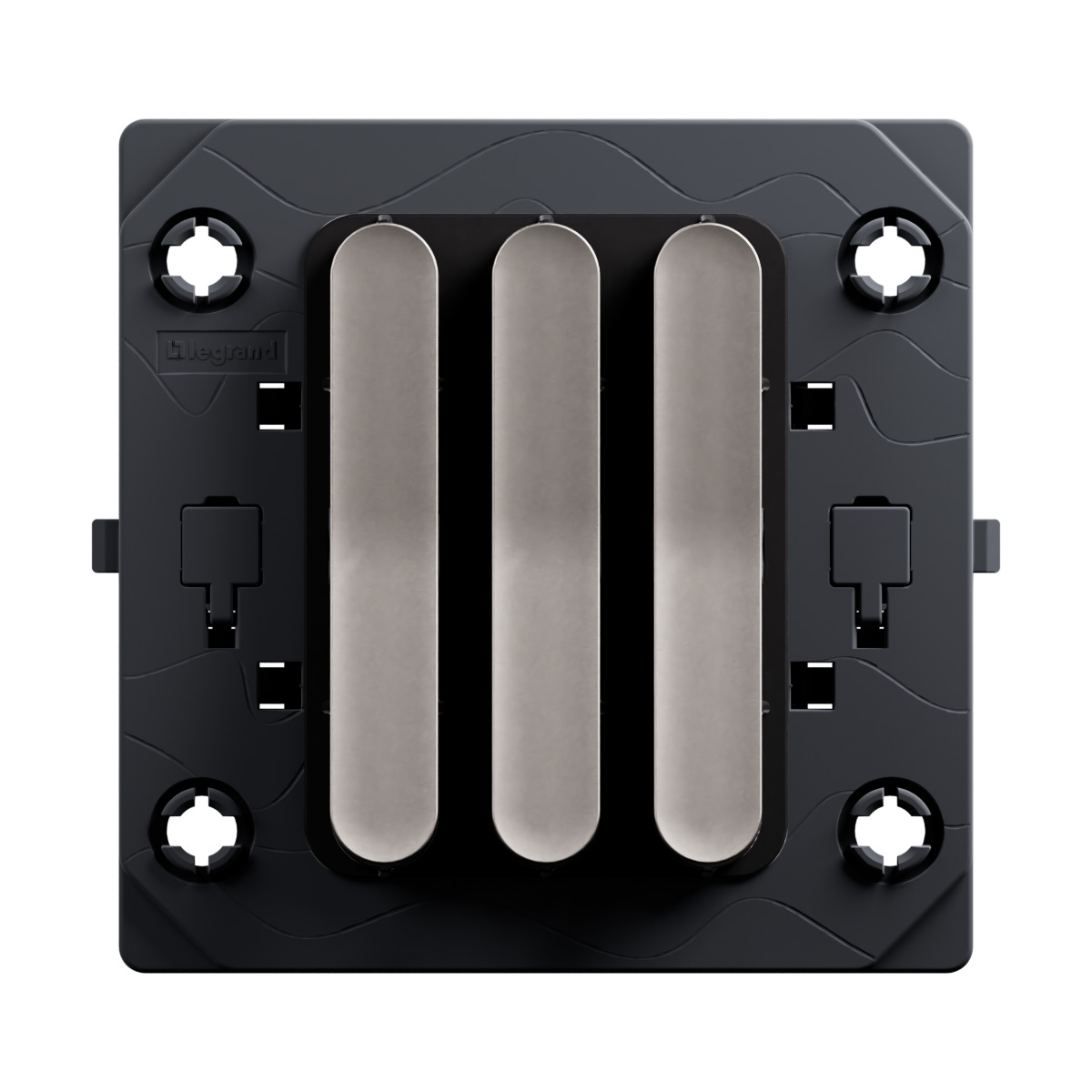

Arteor Advance - 3x1 module 2x2-way+1x1-way 20AX single pole slender switch - Flush-mounted 3-rocker - Matt titanium finish

Arteor Advance Legrand

Arteor Advance - 3x1 module 2x2-way+1x1-way 20AX single pole slender switch - Flush-mounted 3-rocker - Matt titanium finish

REF. AA21311MT EAN. 3414973170498
Offers a gentle touch for effortless light control. This slender 3x1-pole matt titanium switch with 2x2-way and 1x1-way 20AX circuits provides versatile AC lighting control, with screw terminals and flush-mounted modular design.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control. This slender 3x1-pole matt titanium switch with 2x2-way and 1x1-way 20AX circuits provides versatile AC lighting control, with screw terminals and flush-mounted modular design.

Product characteristics
  • 3x1-module, 2x2-way + 1x1-way, 20AX single-pole switch configuration for flexible circuit control in modular domestic installations
  • Matt titanium lacquered thermoplastic front with titanium rocker for a uniform, contemporary aesthetic in the Arteor Advance range
  • Rocker/button mechanism engineered for smooth, low-effort actuation, ensuring precise and reliable switching over intensive use
  • 20AX, 250V AC rating suitable for switching the full rated current on inductive and resistive SBL loads and LED circuits in indoor IP20 applications
  • Flush-mounted, snap-in modular device (2 modules, 3 rockers) with screw terminals for secure connection of 2.5mm² to 6mm² flexible or rigid conductors
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Titanium with a smooth matt aspect
  • The slender format offers a unique ergonomy with a low angle of 3.5° for optimal and elegant integration in the environment

Technical characteristics

Wiring system Switch 3x1-pole
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Push button switch No
Number of rockers 3
Mounting method Flush-mounted
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free No
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Titanium
Colour of switch operator Titanium
Label space/information surface No
Imprint/indication None
Lighting No
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Connection type Screwed terminal
Device width 84.5 mm
Device height 79.5 mm
Device depth 49.3 mm
Built-in depth 31.5 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Terminal marking indication Yes
Terminals capacity (Min-Max) 2.5 - 6 mm²
Cable nature for connection Flexible or rigid
