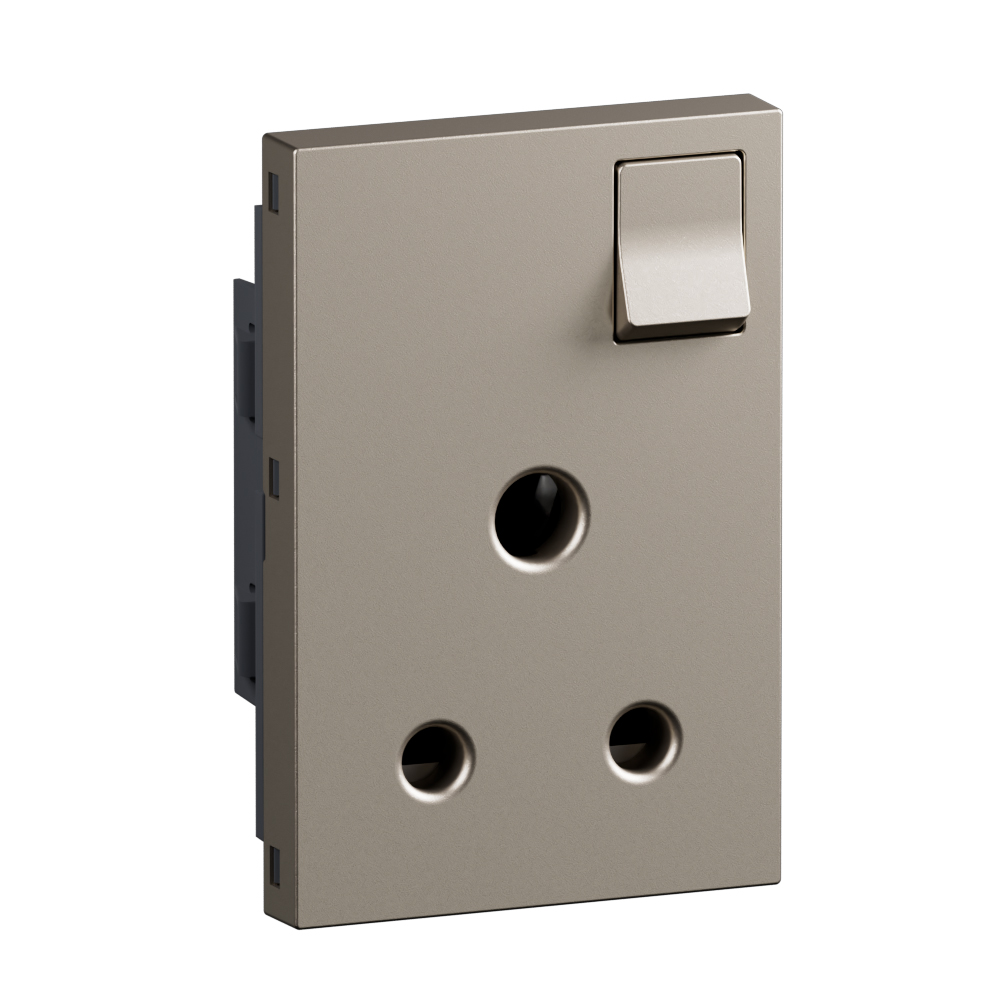

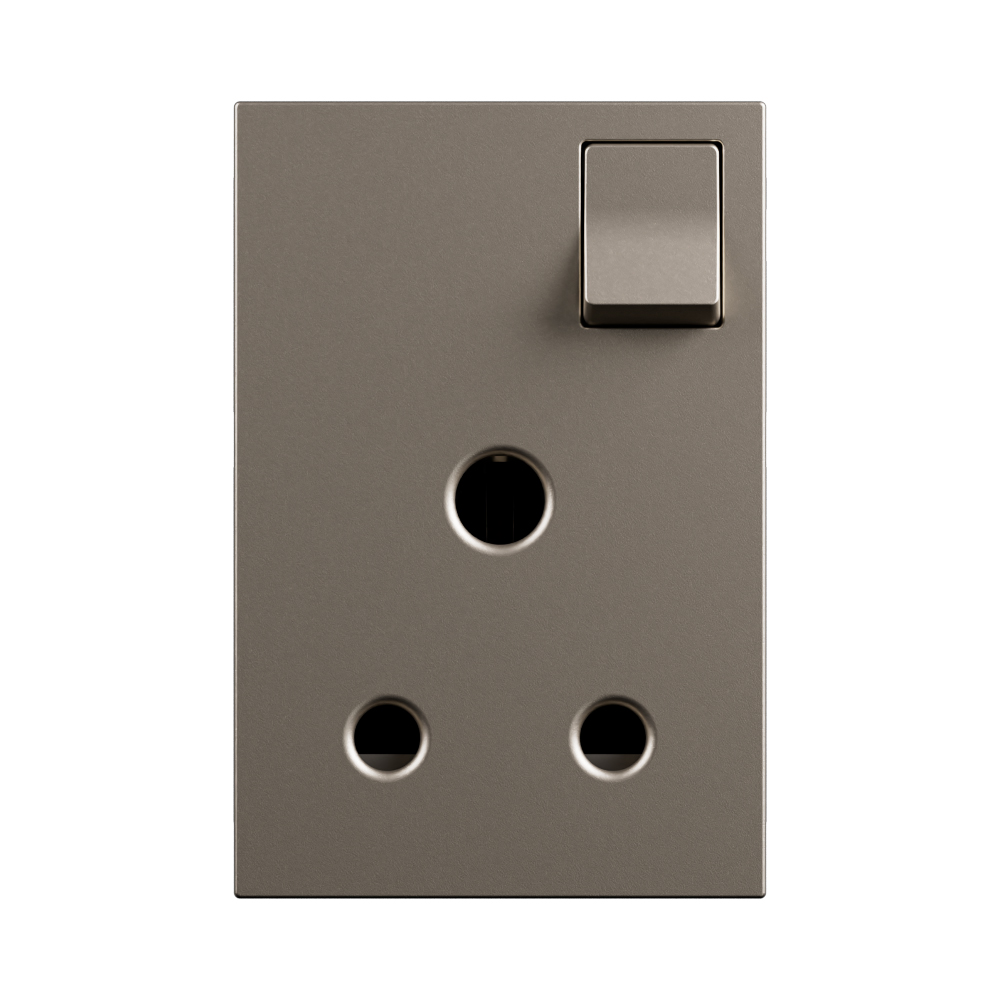

Arteor Advance - 3M British Standard 5A 2P+E single pole switched socket champagne - 250V AC 13A - IP20 thermoplastic - Screw terminals

Arteor Advance Legrand

Arteor Advance - 3M British Standard 5A 2P+E single pole switched socket champagne - 250V AC 13A - IP20 thermoplastic - Screw terminals

REF. AA3204CH EAN. 3414972920360
Allows connecting an electrical appliance through a British Standard 5A 2P+E single pole switched socket with screw-type terminals, marked indications, and safety shutters.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance through a British Standard 5A 2P+E single pole switched socket with screw-type terminals, marked indications, and safety shutters.

Product characteristics
  • Three-module British Standard 5A 2P+E single-pole switched socket outlet for 250V AC, 50-60Hz circuits
  • Champagne gold matt lacquered thermoplastic finish aligned with the Arteor Advance aesthetic
  • Integrated earth (protective) contact ensures safe appliance grounding and compliance with British standardrequirements
  • Clearly marked screwed terminals (1mm² to 4mm² flexible or rigid) for fast, error-free wiring and identification
  • Insulated IP20 IK04 modular device for indoor use, with safety shutters and 13A nominal current rating
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance

Technical characteristics

Model British Standard
Concurrently switching neutral conductor No
Protective contact Round
Number of active contacts (round) 2
Number of active contacts (flat) 0
Number of active contacts (square) 0
Mounting direction Vertical
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 3
Number of socket outlets switchable 1
Number of phases 1
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection No
Label space/information surface No
Colour Gold
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting Yes
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Module frame
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch Yes
Colour of switch operator Gold
Rotated central insert No
Nominal current 13 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 67.5 mm
Device depth 33.5 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 22.6 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Power Delivery Yes
Terminal marking indication Yes
Prewired No
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
Cable support Not applicable
