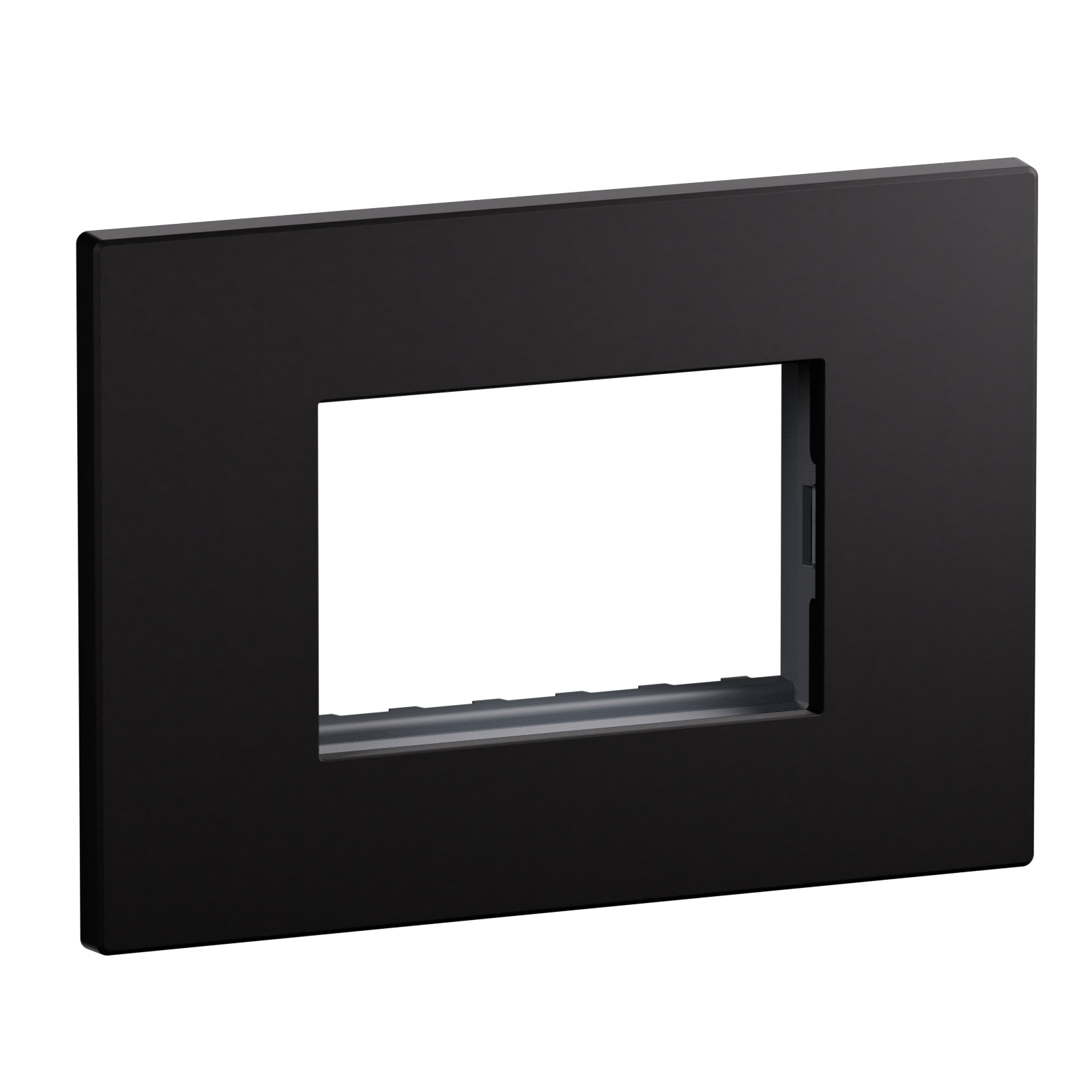

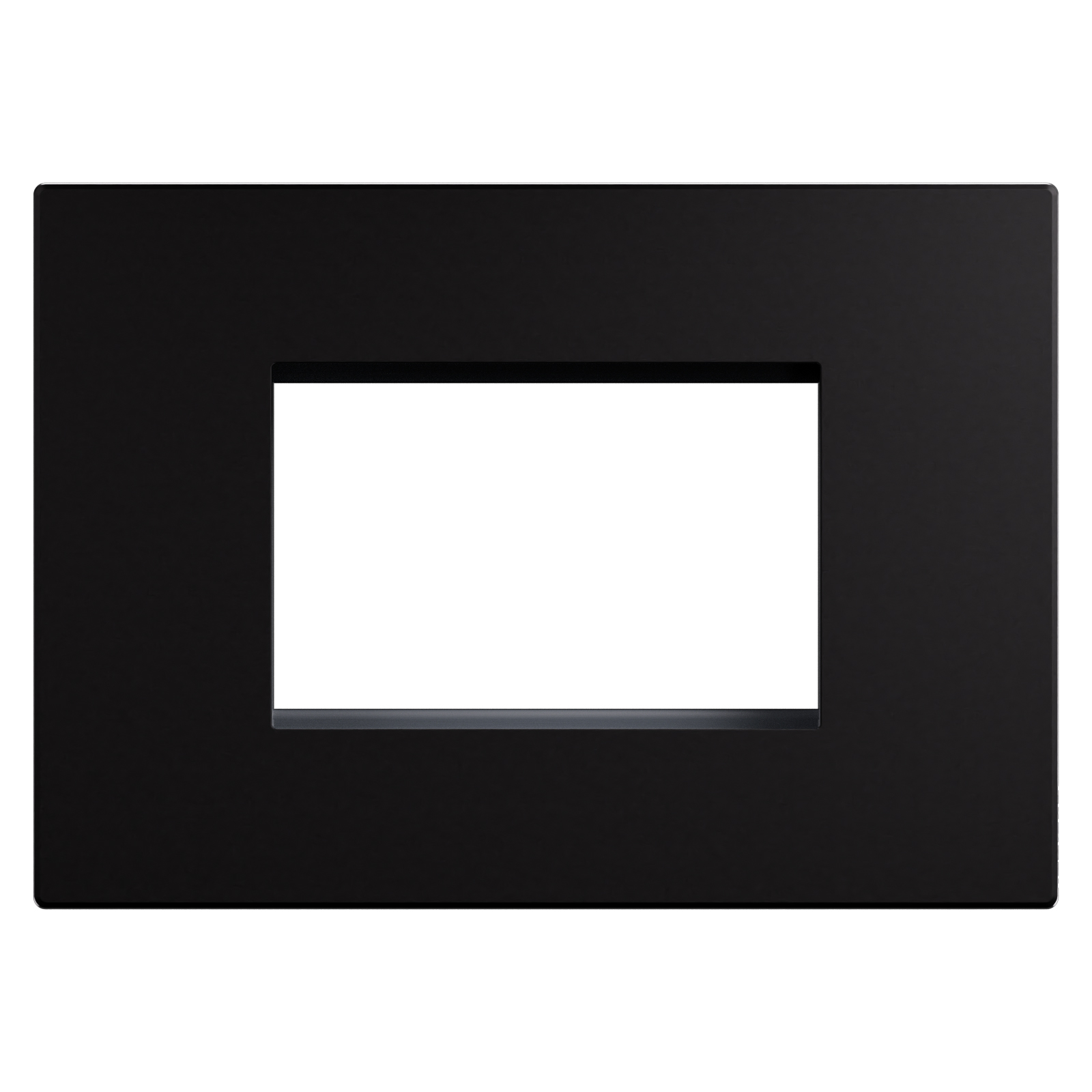

Arteor Advance - 3 modules plate+frame matt black - 3-module square cover frame - Matt deep black thermoplastic

Arteor Advance Legrand

Arteor Advance - 3 modules plate+frame matt black - 3-module square cover frame - Matt deep black thermoplastic

REF. AC1202MB EAN. 3414972737814
The 3 modules plate+frame matt black is a minimalist, deep-black cover frame offering three-module modularity in a compact, square configuration. Its halogen-free thermoplastic construction and snap fastening ensure reliable flush-mounted
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 3 modules plate+frame matt black is a minimalist, deep-black cover frame offering three-module modularity in a compact, square configuration. Its halogen-free thermoplastic construction and snap fastening ensure reliable flush-mounted

Product characteristics
  • Three-module cover frame for domestic switching devices, providing a 3x1 horizontal/vertical module configuration for modular wiring accessories
  • Deep matt black finish for a minimalist, contemporary aesthetic that coordinates with modern interior schemes
  • Plate and frame manufactured from thermoplastic polycarbonate, halogen free for enhanced safety and low smoke emission
  • Square geometry with snap-on fastening for precise alignment and modular flexibility in a compact footprint
  • Flush-mounted, horizontal installation with 127mm width, 8.5mm depth, and -5° C to 35° C operating temperature range for standard indoor applications
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep black with a smooth matte aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
