Arteor Advance - 3 modules plate+frame frosted black - 3-module horizontal flush-mount frame - Matt halogen-free thermoplastic

Arteor Advance Legrand

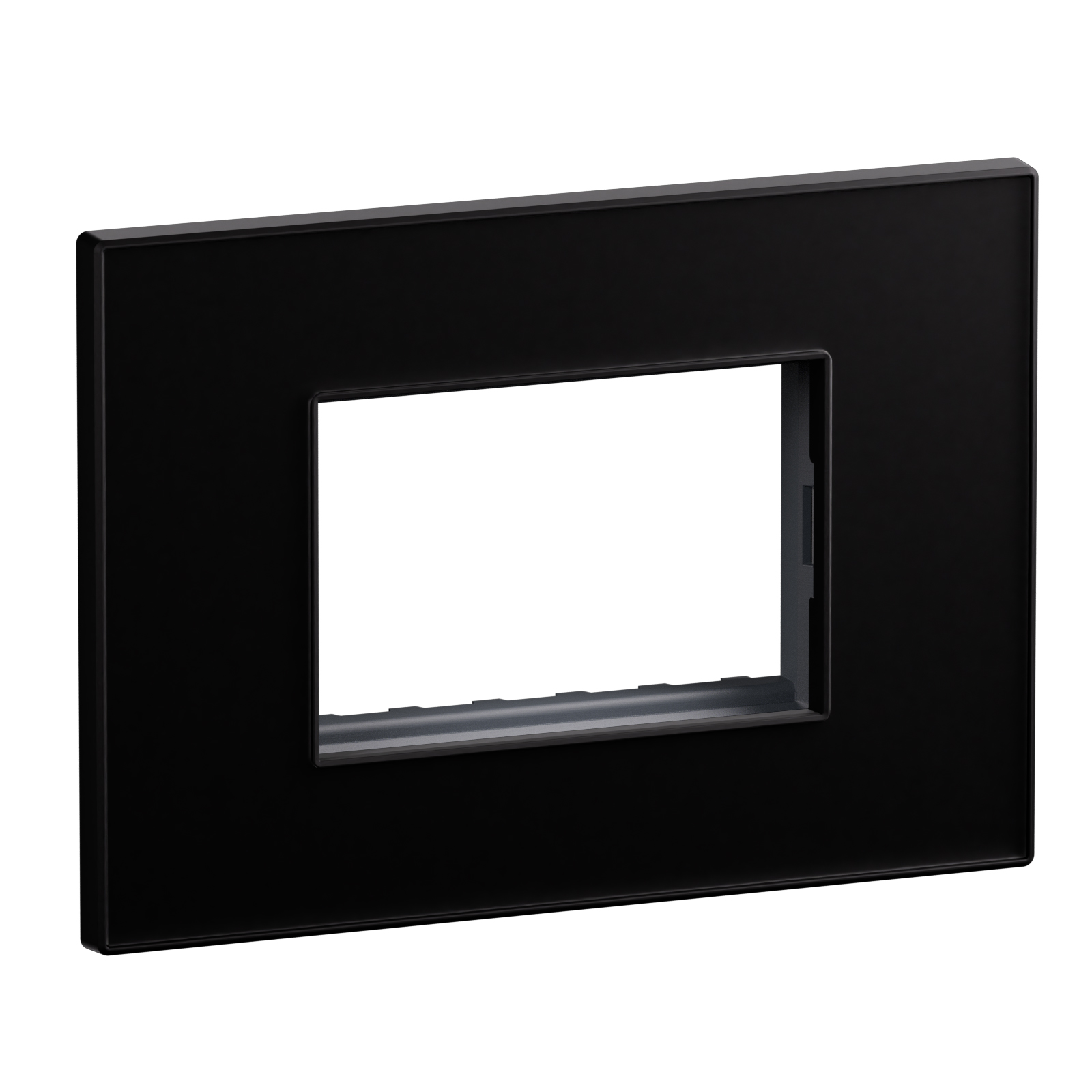

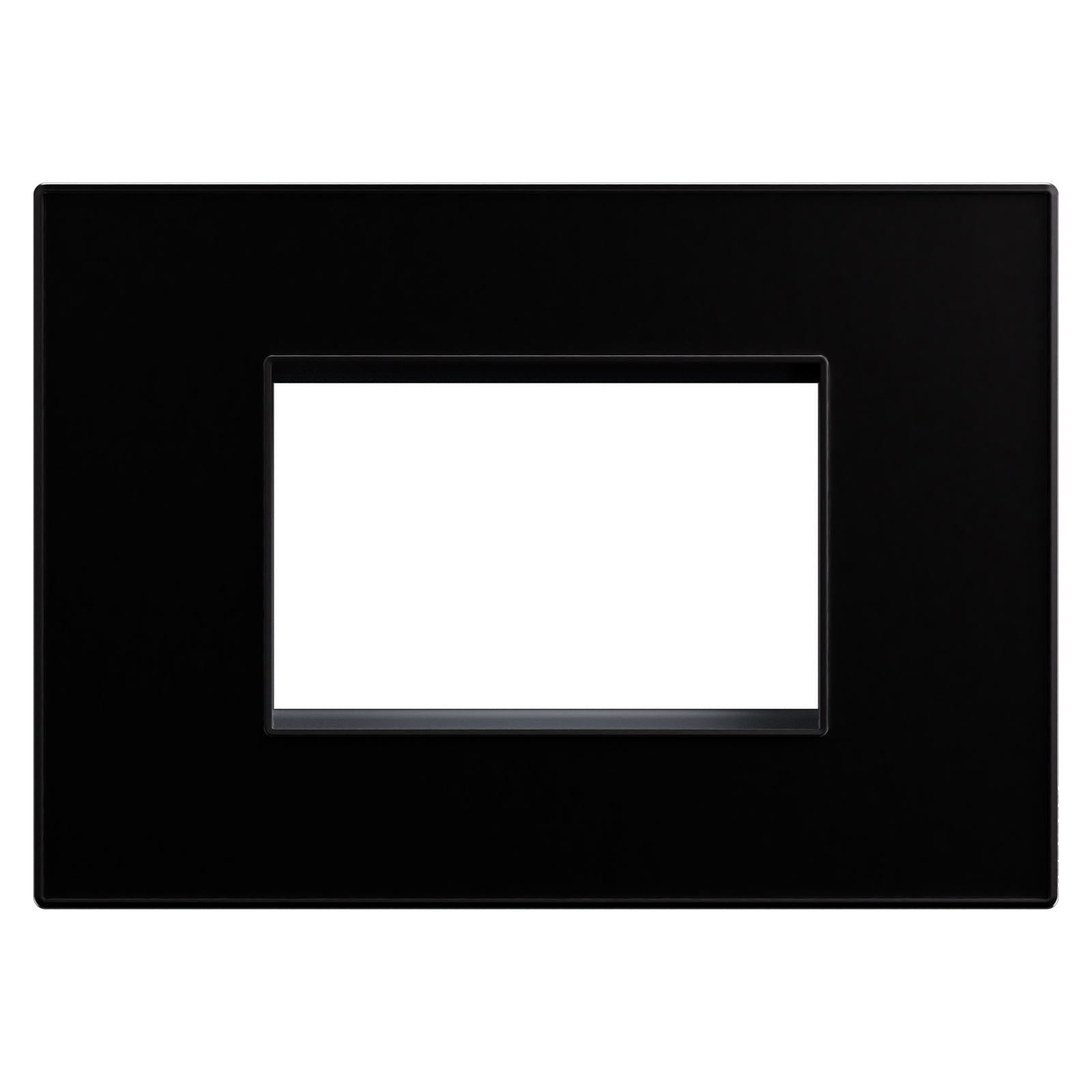

Arteor Advance - 3 modules plate+frame frosted black - 3-module horizontal flush-mount frame - Matt halogen-free thermoplastic

REF. AC1202FB EAN. 3414972737777
This 3 modules plate+frame frosted black in crystal polycarbonate features a refined square design for modular flexibility. Its matt, velvet-touch finish ensures black opacity and premium aesthetics for precise flush-mounted installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 3 modules plate+frame frosted black in crystal polycarbonate features a refined square design for modular flexibility. Its matt, velvet-touch finish ensures black opacity and premium aesthetics for precise flush-mounted installation.

Product characteristics
  • Three-module cover frame for domestic switching devices, providing a 3-gang horizontal configuration within the module system
  • Frosted black, matt-finished surface for reduced glare and a refined, contemporary aesthetic
  • Crystal polycarbonate thermoplastic plate set in a cradle, delivering velvet touch, high black opacity, and enhanced durability
  • Square design enabling modularity and flexibility in a compact footprint for optimized wall space usage
  • Flush-mounted, snap-engage installation with integrated adjuster to ensure precise, perfectly aligned wall mounting
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
