Arteor Advance - 3 modules plate+frame for 3x1 module slender switches - Matt lacquered aluminum - Flush-mounted horizontal

Arteor Advance Legrand

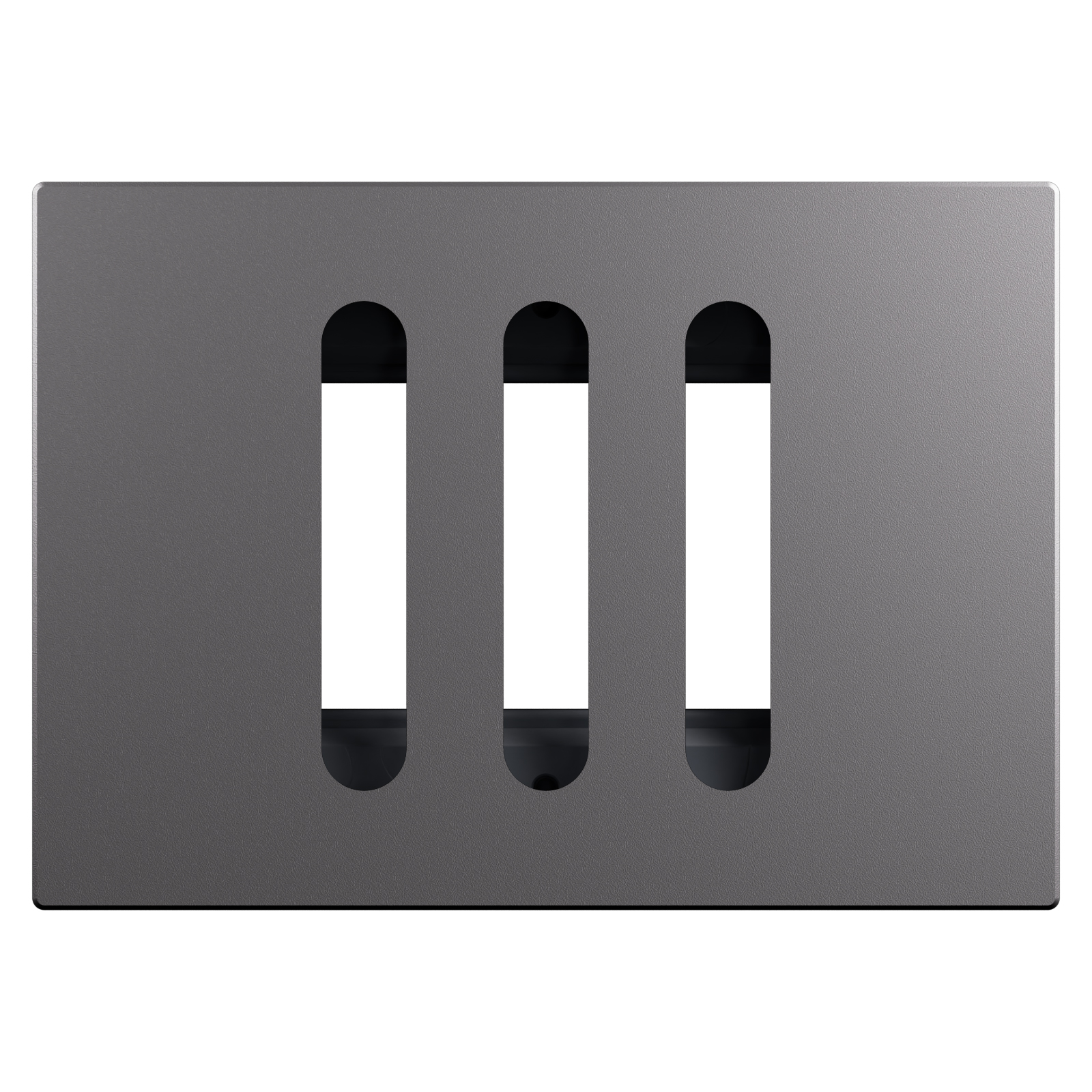

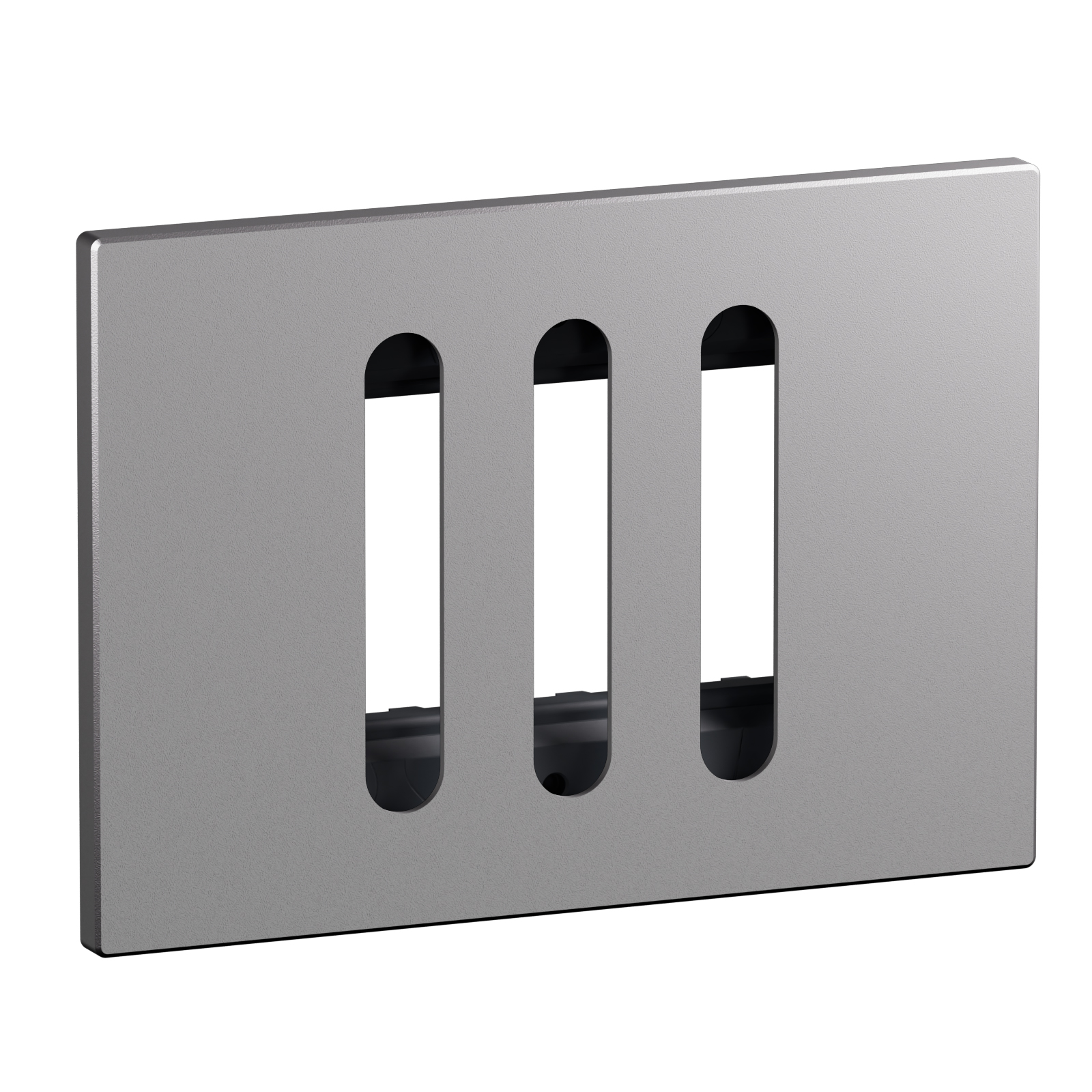

Arteor Advance - 3 modules plate+frame for 3x1 module slender switches - Matt lacquered aluminum - Flush-mounted horizontal

REF. AA1203SA EAN. 3414972723398
This 3 modules plate+frame in solid aluminum offers robust flush-mounted installation and precise snap fastening for 3x1 module slender switches. Its lacquered matt finish with refined design ensures a cool metal feel.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 3 modules plate+frame in solid aluminum offers robust flush-mounted installation and precise snap fastening for 3x1 module slender switches. Its lacquered matt finish with refined design ensures a cool metal feel.

Product characteristics
  • Two-gang cover frame providing three horizontal modules for 3x1 module slender switches
  • Solid aluminum construction with lacquered, matt surface for enhanced durability and premium finish
  • Plates are made of real plain aluminum, delivering a cool metal feel with muted reflection
  • Slender 8.5mm depth design for a refined, low-profile aesthetic on flush or built-in installations
  • Horizontal flush-mounted frame, 127mmx90mm, snap-fastening, halogen-free, suitable for wall duct and subfloor boxes
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid Yes
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation Yes
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
