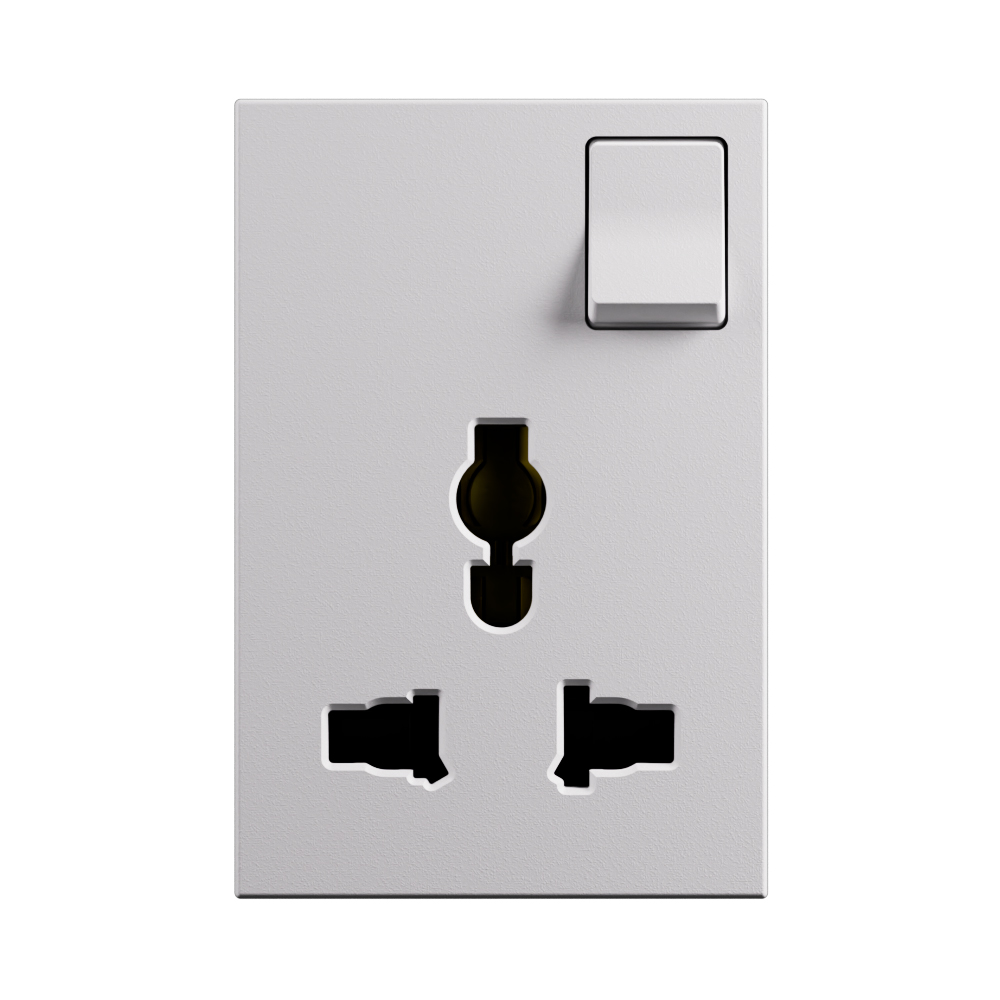

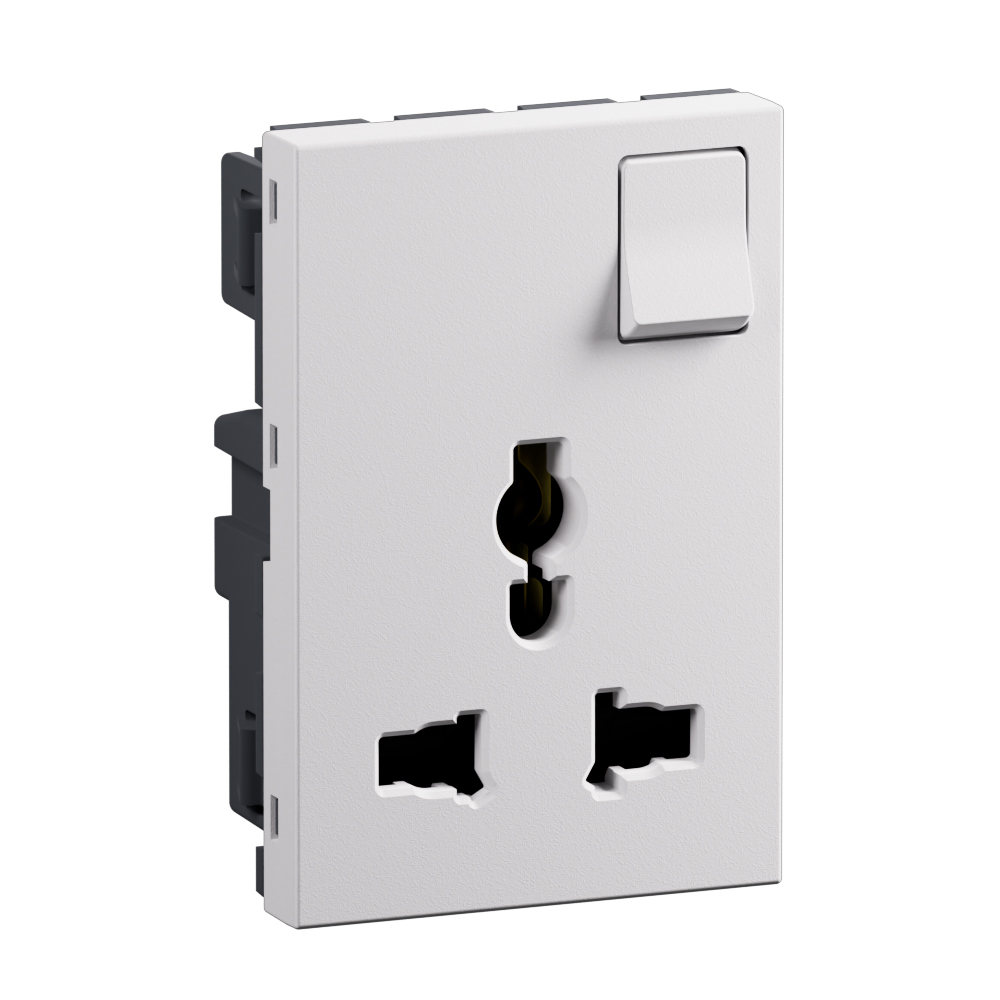

Arteor Advance - 3 modules multistandard 2 poles + earth shuttered switched socket matt white - 13A 250V AC IP20

Arteor Advance Legrand

Arteor Advance - 3 modules multistandard 2 poles + earth shuttered switched socket matt white - 13A 250V AC IP20

REF. AC3231MW EAN. 3414972759823
Allows connecting an electrical appliance through a 3-module multi-standard 2P+E switched socket. It offers 13A 250V AC power delivery with earth connection and safety shutters. Screw terminals with marked indications simplify wiring
Download product sheet
Finition :
Concurrently switching neutral conductor :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows connecting an electrical appliance through a 3-module multi-standard 2P+E switched socket. It offers 13A 250V AC power delivery with earth connection and safety shutters. Screw terminals with marked indications simplify wiring

Product characteristics
  • Three-module multi-standard 2P+E switched socket outlet providing a single 1-phase 250V AC, 13A power point in a 3-module footprint
  • Matt white thermoplastic front with RAL 9003-equivalent finish and smooth matt surface for a consistent Arteor Advance aesthetic
  • Integrated earth contact with flat protective contact and safety shutters to maximize user protection during appliance connection
  • Screw-type terminals with clear terminal marking indication for fast, secure wiring of 1mm² to 4mm² flexible or rigid conductors
  • Modular basic element with central cover plate for screw-mounted installation in module frames, enabling flexible configuration within Arteor Advance systems
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • Fitted with safety shutters to maximise protection
Avantages
  • Powdery white with a smooth matte aspect
  • The square format enables modularity

Technical characteristics

Model Multi-standard socket
Concurrently switching neutral conductor No
Protective contact Other
Number of active contacts (round) 2
Number of active contacts (flat) 2
Number of active contacts (square) 2
Mounting direction Vertical
Assembly arrangement Basic element with central cover plate
With complemantary luminous signal No
Number of ports USB-A 0
Number of empty module positions 0
Number of socket outlets 1
Socket outlets phase-separated No
Number of modules (module system) 3
Number of socket outlets switchable 1
Number of phases 1
Imprint/indication None
Connection type Screwed terminal
With hinged lid No
With enhanced contact protection No
Label space/information surface No
Colour White
RAL-number (similar) 9003
Metallic colour No
Transparent No
Lockable No
Eject-mechanism No
Insulated mounting Yes
With function lighting No
With orientation lighting No
Overvoltage protection No
Fault current protection No
With miniature fuse No
Special power supply None
Mounting method Module frame
Type of fastening Mounting with screw
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Untreated
Surface finishing Matt
Antimicrobial treatment No
With loop through function No
With on/off switch Yes
Colour of switch operator White
Rotated central insert No
Nominal current 13 A
Nominal voltage 250 V
Frequency (Min-Max) 50-60 Hz
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Device width 45 mm
Device height 67.4 mm
Device depth 32.8 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Amazon Alexa No
Compatible with Google Assistant No
IFTTT support available No
With Wi-Fi signal repeater No
With built-in bluetooth speaker No
For heavy conditions according to VDE No
Built-in depth 27.9 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -5-70 °C
Voltage type AC
Power Delivery Yes
Terminal marking indication Yes
Prewired No
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
Cable support Not applicable
