Arteor Advance - 3 modules italian/us horizontal plate frosted black - Crystal polycarbonate matt finish - Velvet touch black

Arteor Advance Legrand

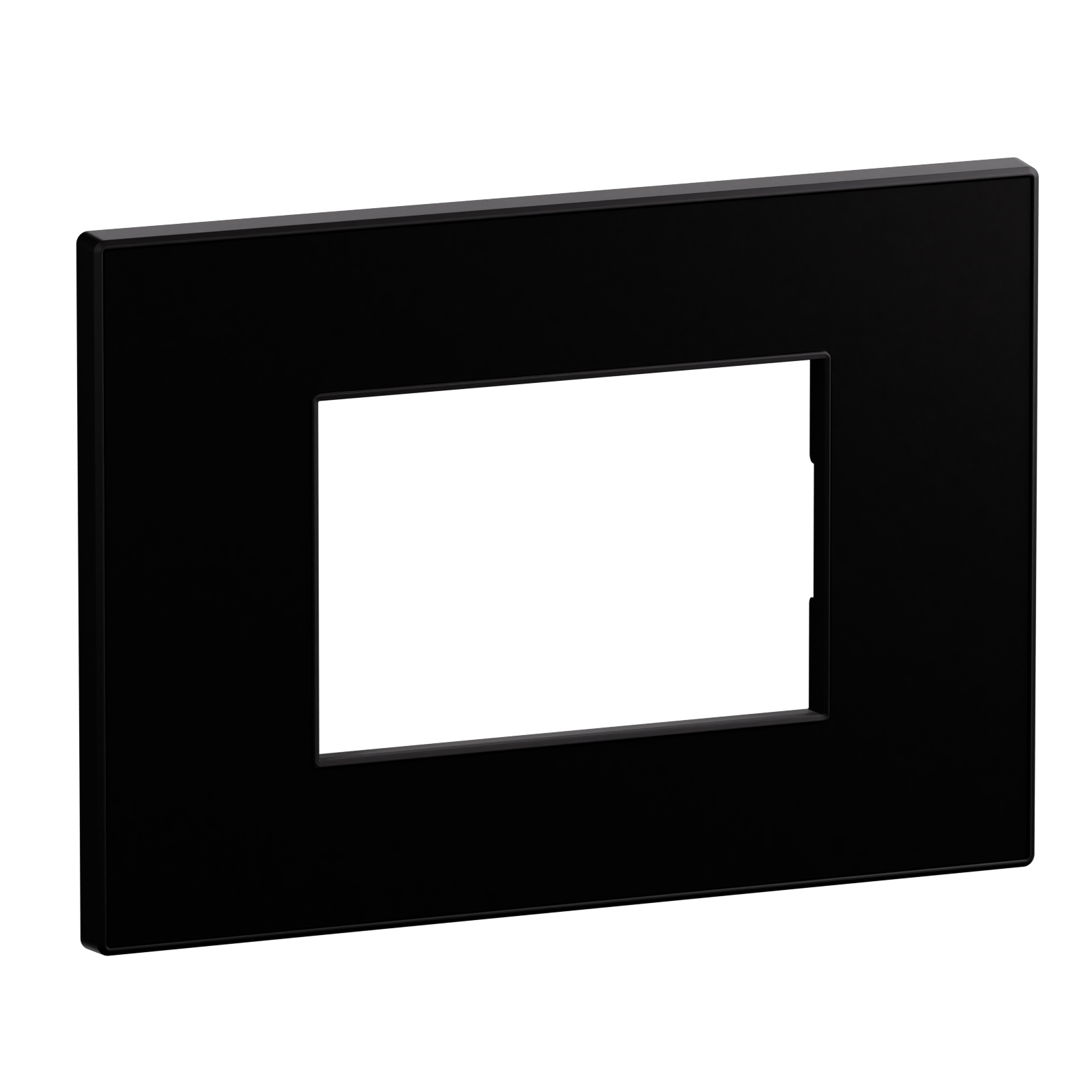

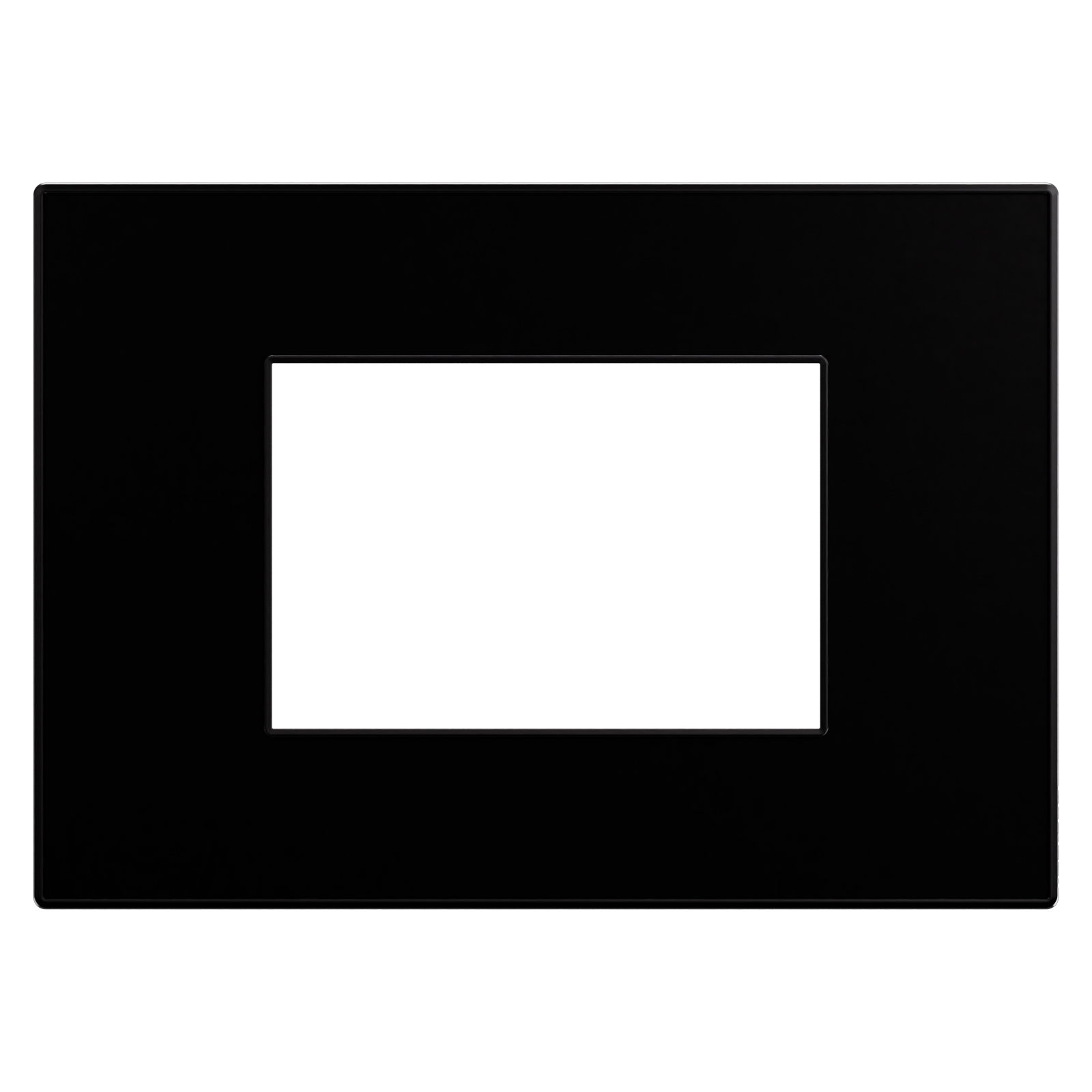

Arteor Advance - 3 modules italian/us horizontal plate frosted black - Crystal polycarbonate matt finish - Velvet touch black

REF. AC1107FB EAN. 3414972735506
This 3 modules Italian/US horizontal plate in frosted black offers refined square design and crystal polycarbonate construction. Its snap fastening and integrated adjuster ensure precise flush-mounted installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 3 modules Italian/US horizontal plate in frosted black offers refined square design and crystal polycarbonate construction. Its snap fastening and integrated adjuster ensure precise flush-mounted installation.

Product characteristics
  • Three-module Italian/US horizontal cover frame enabling modular configuration of domestic switching devices
  • Frosted black matte finish providing refined aesthetics and reduced glare for premium interior installations
  • Crystal polycarbonate plate construction delivering high mechanical strength with a velvet-touch, opaque black surface
  • Square design optimizing modularity and flexibility in a compact wall-mounted configuration
  • Flush-mounted thermoplastic frame with snap fastening for precise, secure installation on standard boxes
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04502EN-00.pdf pdf (0.5 Mo)
