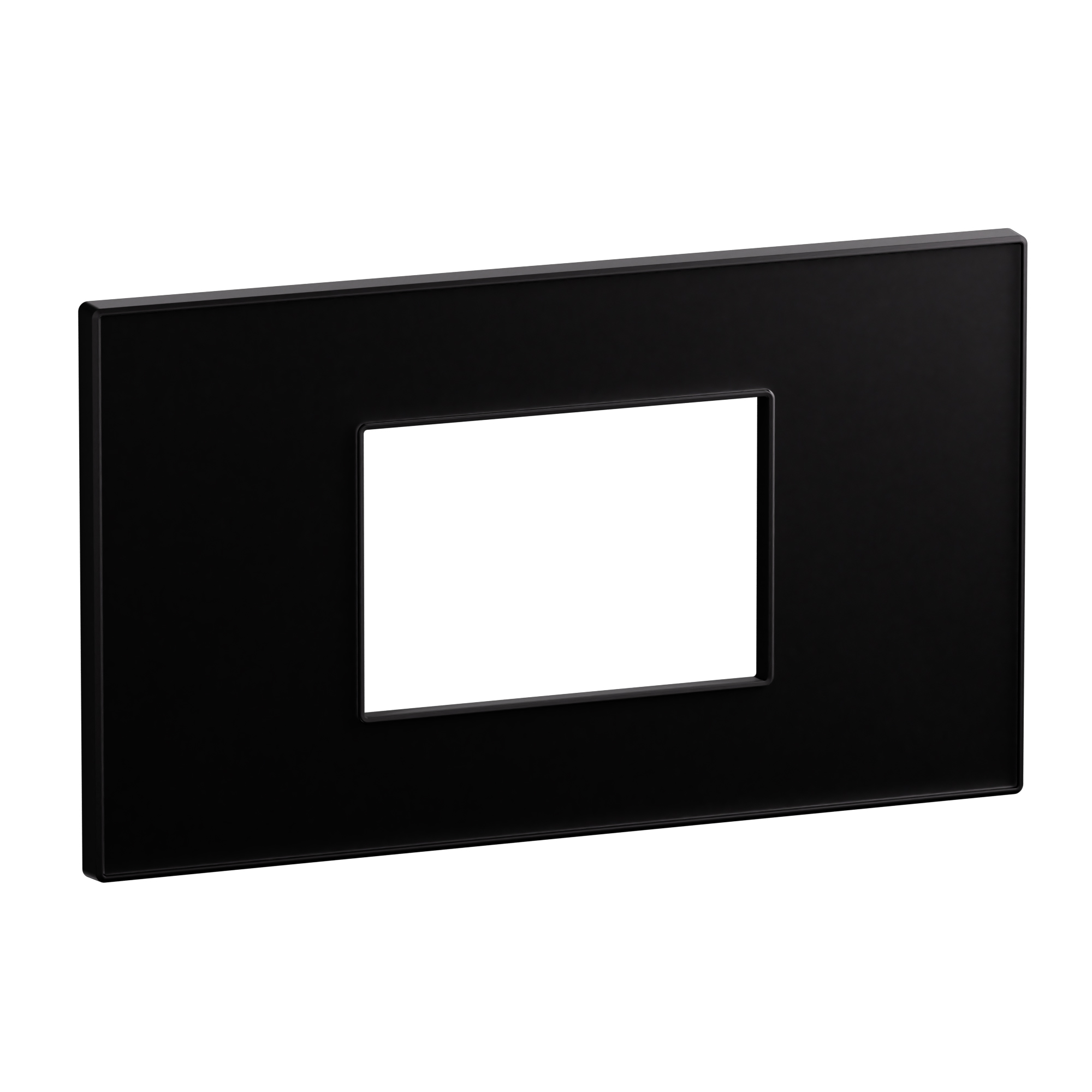

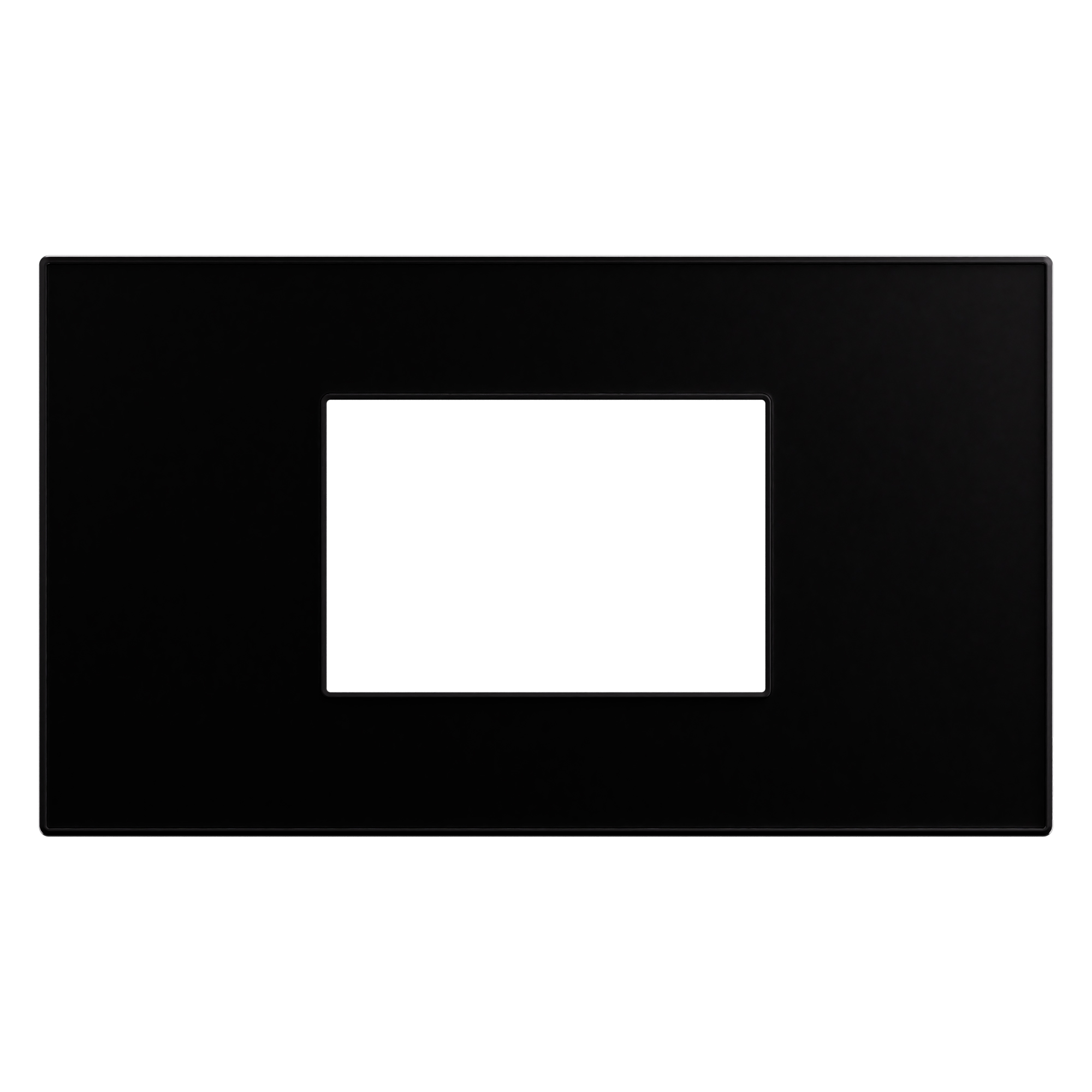

Arteor Advance - 3 modules British standard plate for 2 gang box frosted black - Crystal polycarbonate square plate - Flush-mounted

Arteor Advance Legrand

Arteor Advance - 3 modules British standard plate for 2 gang box frosted black - Crystal polycarbonate square plate - Flush-mounted

REF. AC1105FB EAN. 3414972735094
This 3 modules British Standard plate for 2 gang box in frosted black offers crystal polycarbonate construction, square modular design, and engage (snap) fastening for precise flush mounting and perfect wall alignment.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 3 modules British Standard plate for 2 gang box in frosted black offers crystal polycarbonate construction, square modular design, and engage (snap) fastening for precise flush mounting and perfect wall alignment.

Product characteristics
  • Two-gang British Standard plate providing three horizontal modules for 2-gang box configurations
  • Frosted black, matt surface finish for reduced glare and a refined, contemporary aesthetic
  • Crystal polycarbonate thermoplastic plate offering high dimensional stability and black opacity with a velvet touch
  • Square cover frame geometry enabling modularity and flexibility in a compact wall-mounted configuration
  • Snap-on (engage) fastening, flush-mounted installation, IK02 impact resistance, and -5 to 35° C operating temperature range for robust indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04494EN-00.pdf pdf (0.51 Mo)
