Arteor Advance - 3 modules British Standard plate for 2 gang box - Dark bronze matt thermoplastic - Square minimalist design

Arteor Advance Legrand

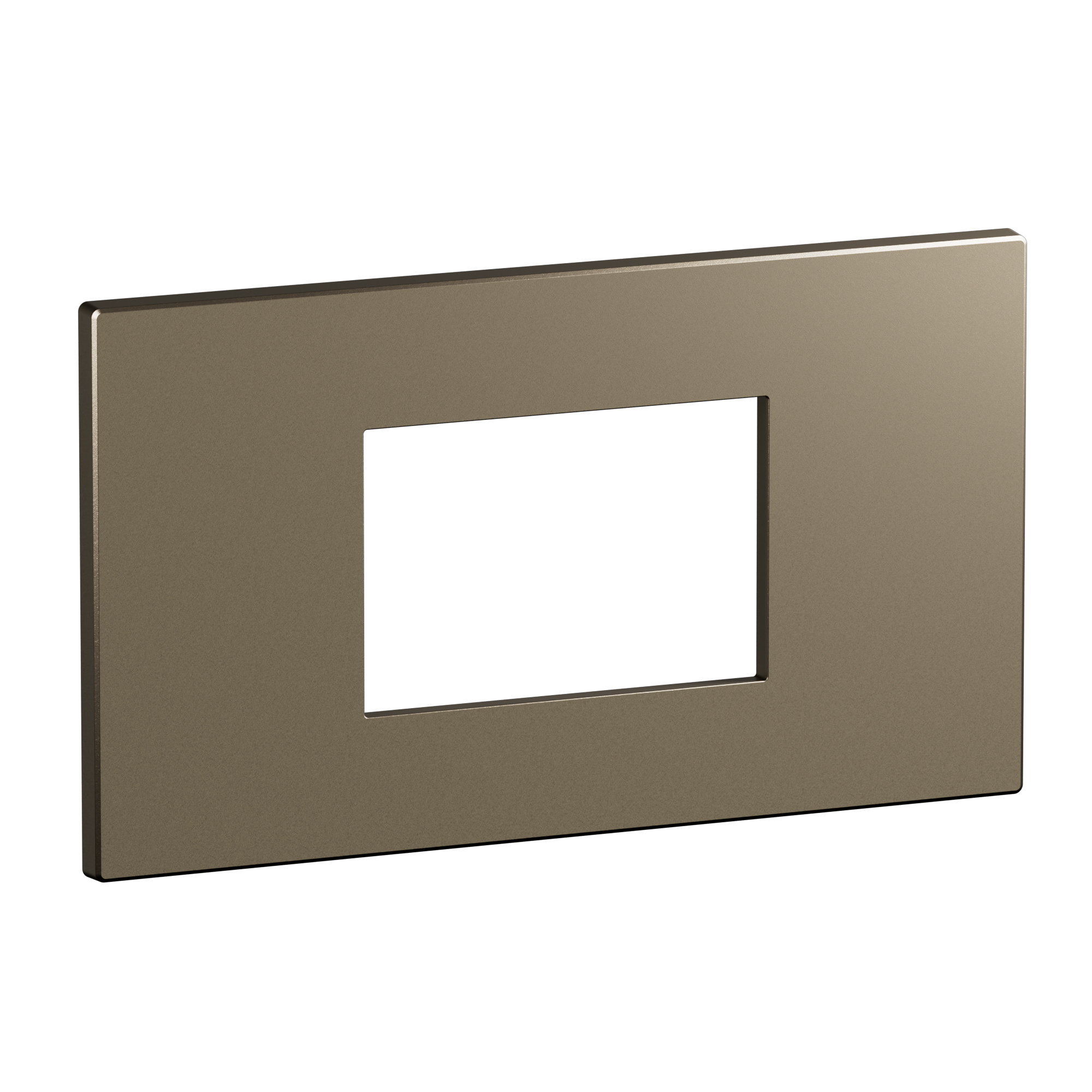

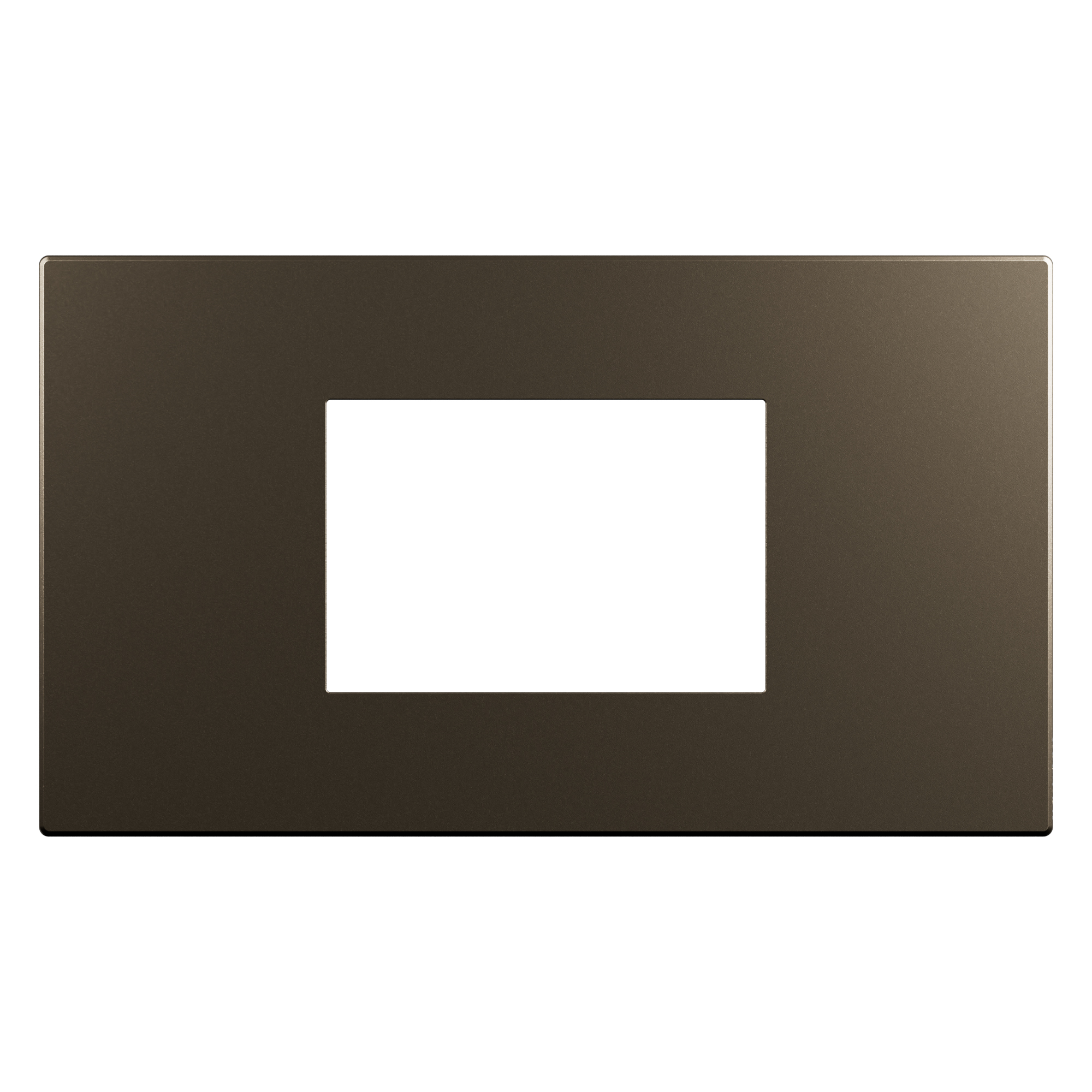

Arteor Advance - 3 modules British Standard plate for 2 gang box - Dark bronze matt thermoplastic - Square minimalist design

REF. AC1105DB EAN. 3414972921596
This 3 modules British Standard plate for 2 gang box in dark bronze features a matt lacquered thermoplastic body and minimalist square design. Its snap fastening and integrated adjuster ensure precise flush-mounted installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 3 modules British Standard plate for 2 gang box in dark bronze features a matt lacquered thermoplastic body and minimalist square design. Its snap fastening and integrated adjuster ensure precise flush-mounted installation.

Product characteristics
  • Two-gang British Standard plate providing three horizontal modules for flexible device configuration
  • Dark bronze lacquered matt finish delivering a deep, classic aesthetic aligned with Arteor Advance
  • High-quality thermoplastic polycarbonate plate, halogen free and impact rated IK02 for robust residential use
  • Square, flush-mounted cover frame (157x90x8.5mm) with snap-on fastening for precise horizontal installation
  • Designed for indoor use with operating temperature from -5° C to 35° C and storage temperature from -10° C to 70° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep bronze finish evoking classic ambiance
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Bronze
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
