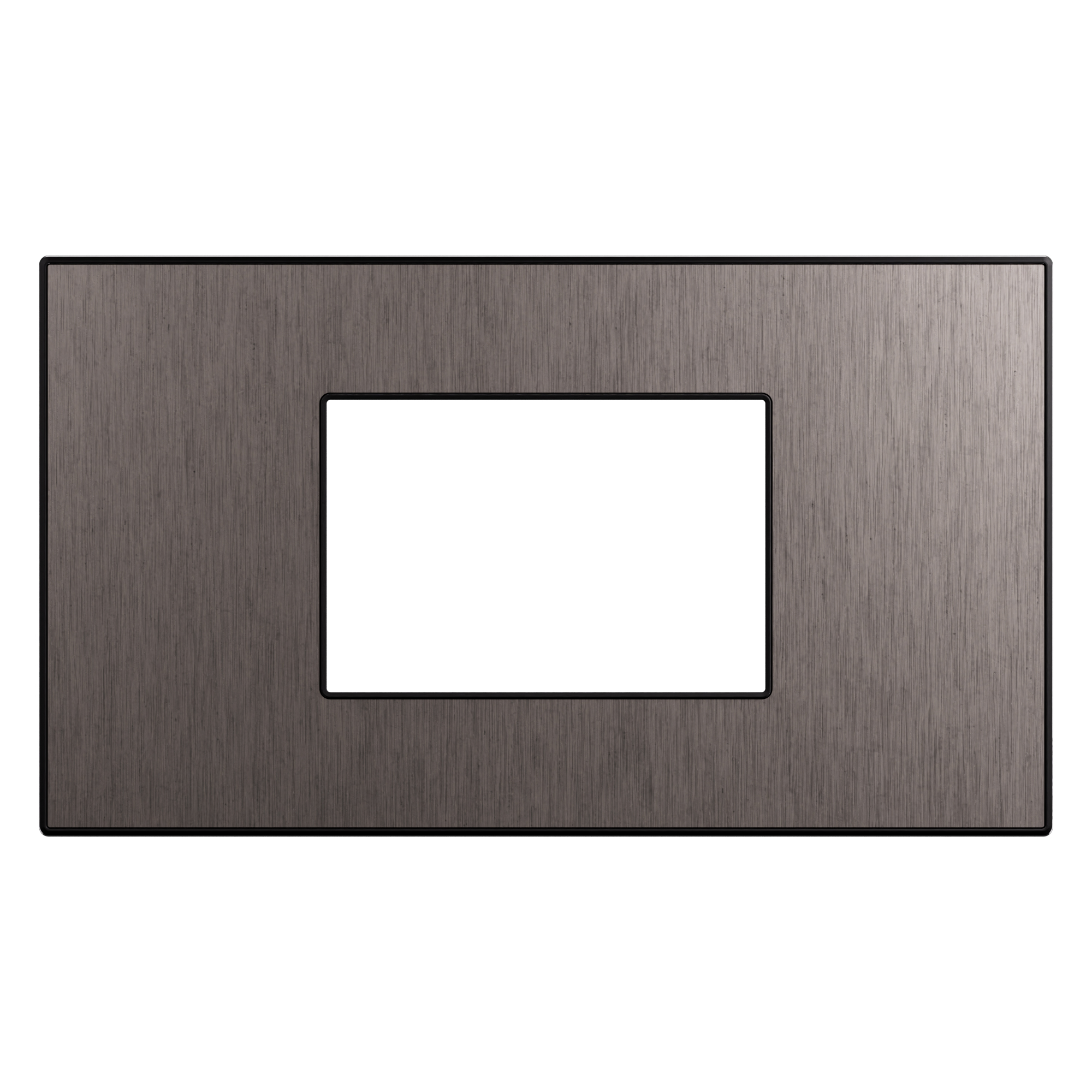

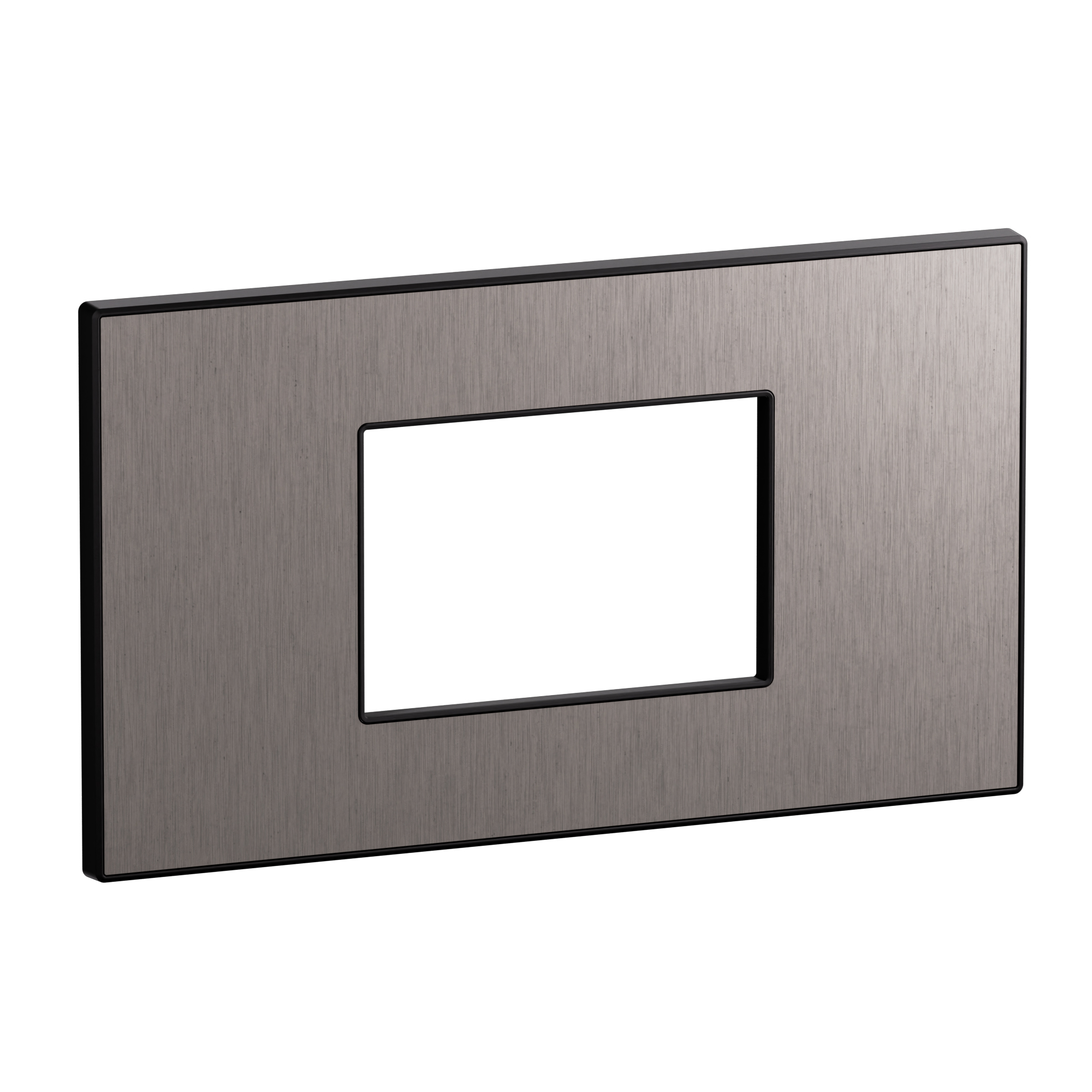

Arteor Advance - 3 modules British Standard plate for 2 gang box dark aluminium - Real brushed aluminum - Square matt grey design

Arteor Advance Legrand

Arteor Advance - 3 modules British Standard plate for 2 gang box dark aluminium - Real brushed aluminum - Square matt grey design

REF. AC1105DA EAN. 3414972735032
This 3 modules British Standard plate for 2 gang box in dark aluminum delivers refined square design and real brushed aluminum construction. Its matt warm grey reflection and snap fastening ensure precise flush mounting.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 3 modules British Standard plate for 2 gang box in dark aluminum delivers refined square design and real brushed aluminum construction. Its matt warm grey reflection and snap fastening ensure precise flush mounting.

Product characteristics
  • Two-gang British Standard plate providing three modules for high-density wiring configurations
  • Dark aluminum finish in warm matt gray for a refined, contemporary aesthetic
  • Real brushed aluminum plate construction for durable, halogen-free, professional-grade installations
  • Square geometry enabling modularity and flexibility in a compact 3-module, 2-gang layout
  • Flush-mounted, snap-on cover frame (157x8.5mm) with IK02 impact resistance, optimized for indoor use from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04494EN-00.pdf pdf (0.51 Mo)
