Arteor Advance - 3 modules British Standard plate for 2 gang box - Champagne thermoplastic matt gold cover frame - Flush-mounted

Arteor Advance Legrand

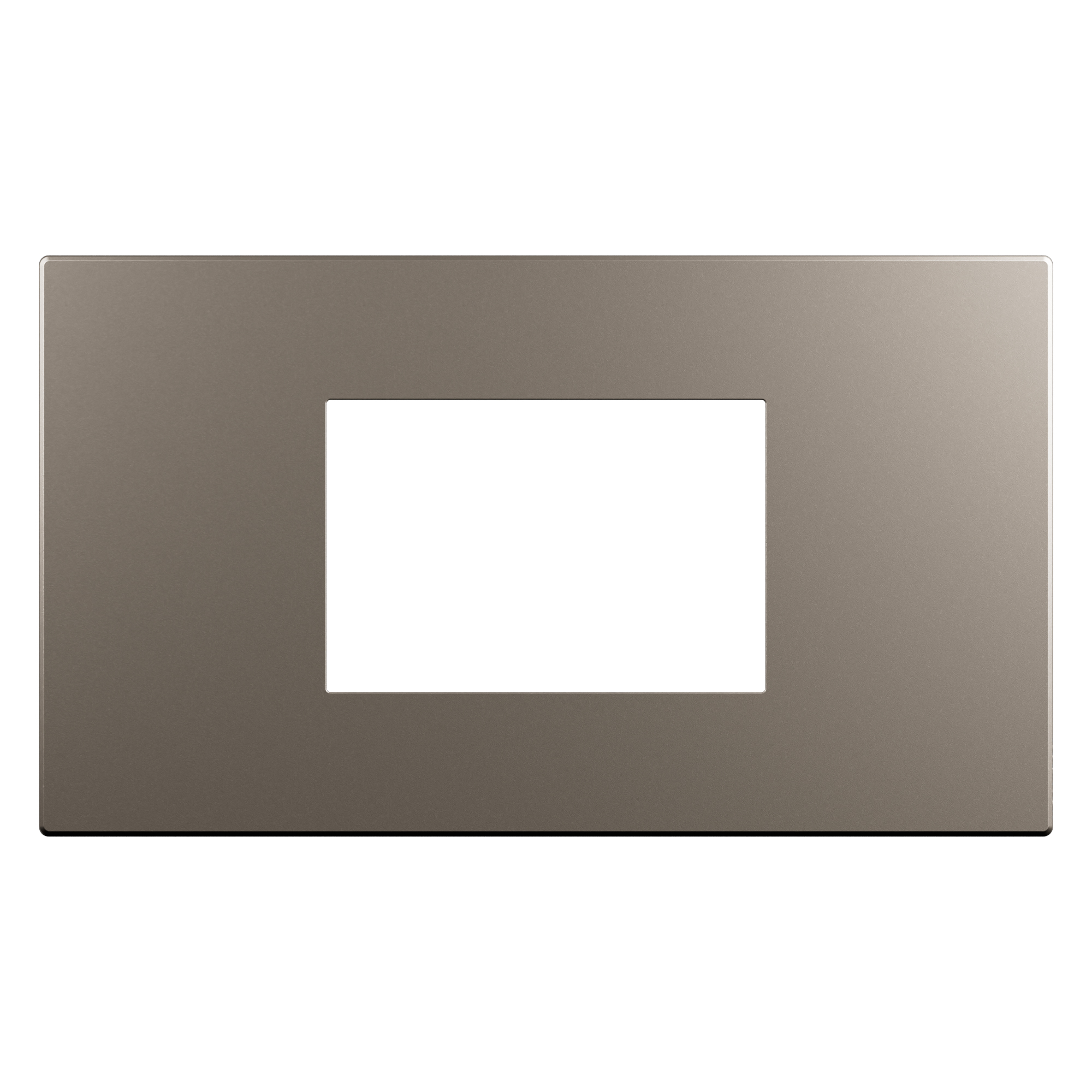

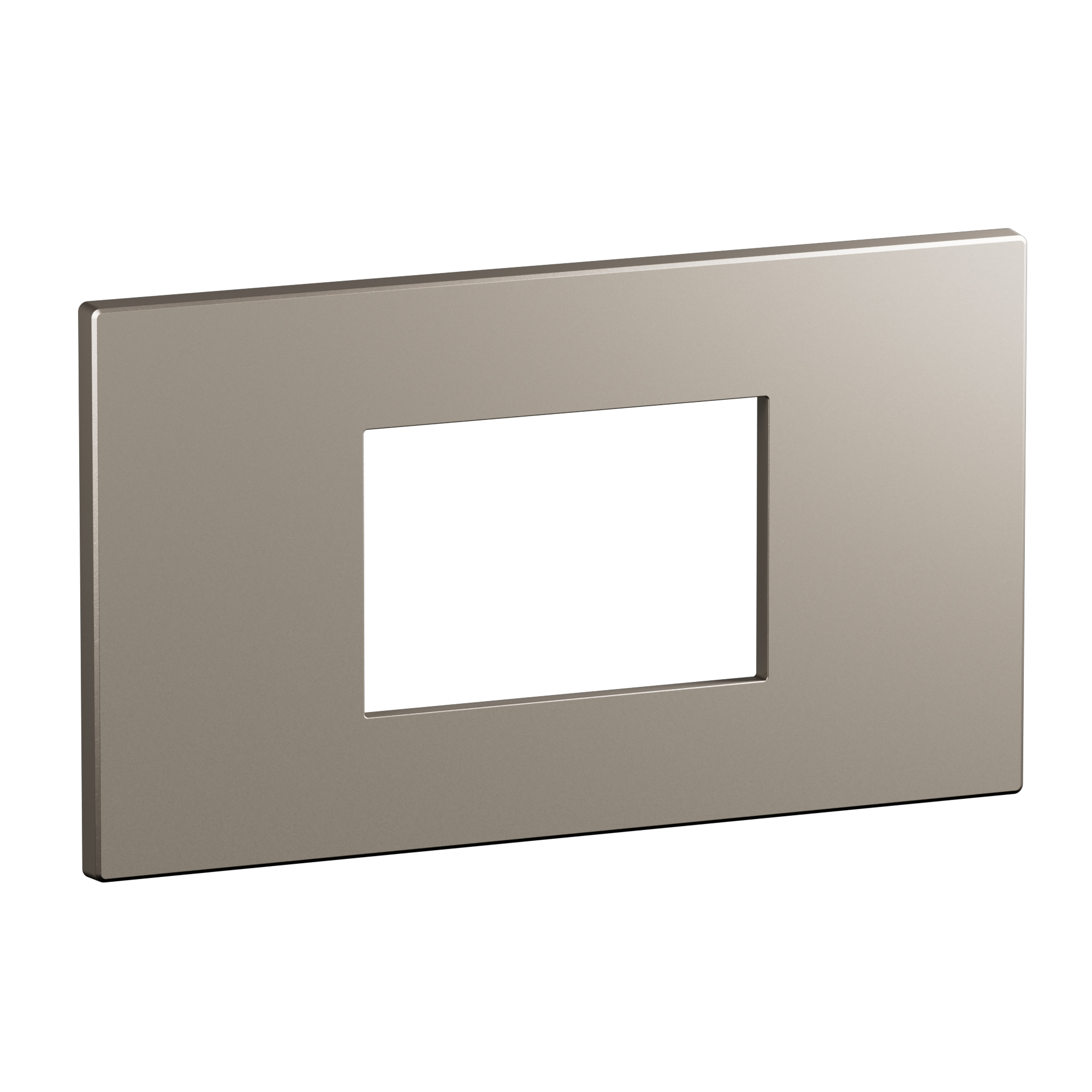

Arteor Advance - 3 modules British Standard plate for 2 gang box - Champagne thermoplastic matt gold cover frame - Flush-mounted

REF. AC1105CH EAN. 3414972921565
The 3 modules British standard plate for 2 gang box champagne is a minimalist, square Arteor Advance cover frame with two-gang, three-module modularity. Its halogen-free thermoplastic body and matt lacquered gold finish ensure precise
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 3 modules British standard plate for 2 gang box champagne is a minimalist, square Arteor Advance cover frame with two-gang, three-module modularity. Its halogen-free thermoplastic body and matt lacquered gold finish ensure precise

Product characteristics
  • Two-gang, three-module British Standard cover plate for 2-gang box, optimized for horizontal mounting in Arteor Advance installations
  • Champagne (warm gray with ivory hues) matt lacquered finish delivers a discreet, silky aesthetic for premium interiors
  • High-quality thermoplastic polycarbonate construction, halogen free and IK02 impact rated for robust, safe domestic switching applications
  • Square, minimalist geometry enabling modularity and flexibility in a compact 3 modules configuration
  • Flush-mounted snap-on design with integrated adjuster ensures precise wall alignment; recommended for indoor use, 157x90x8.5mm, operating from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04493EN-00.pdf pdf (0.51 Mo)
