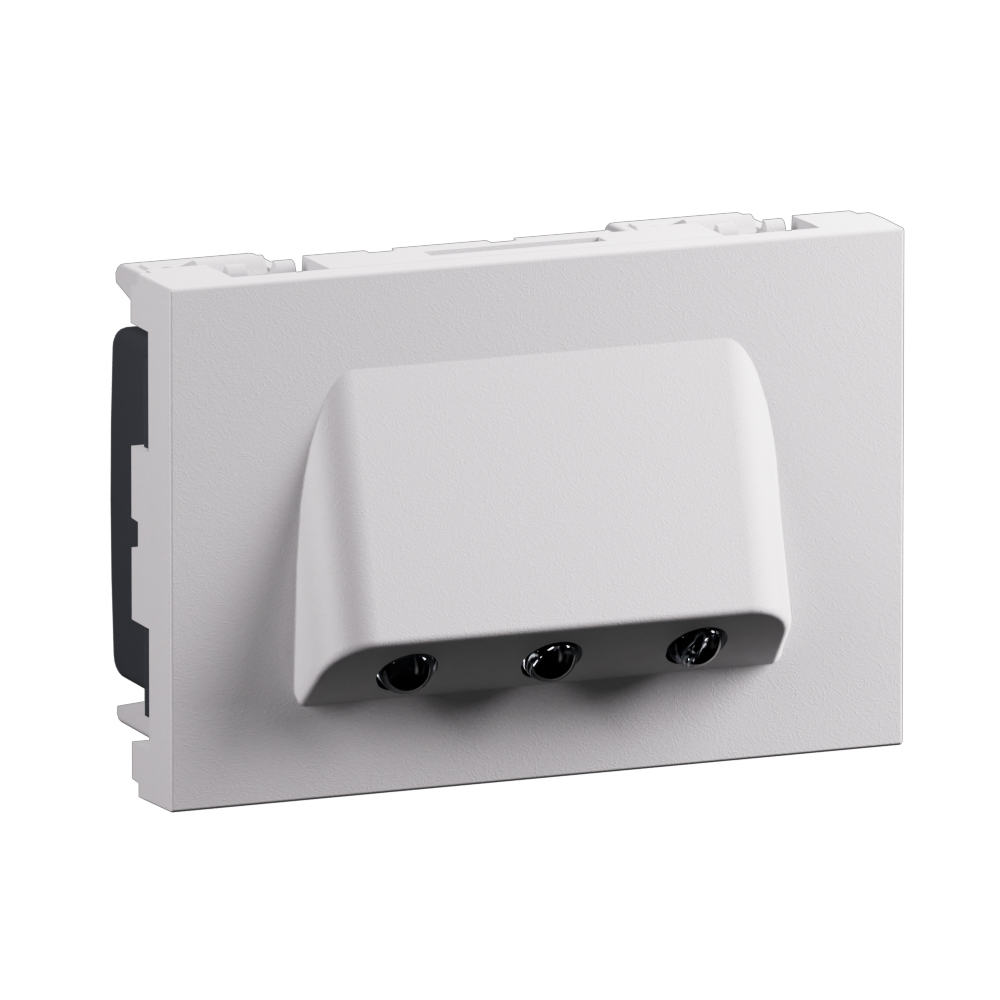

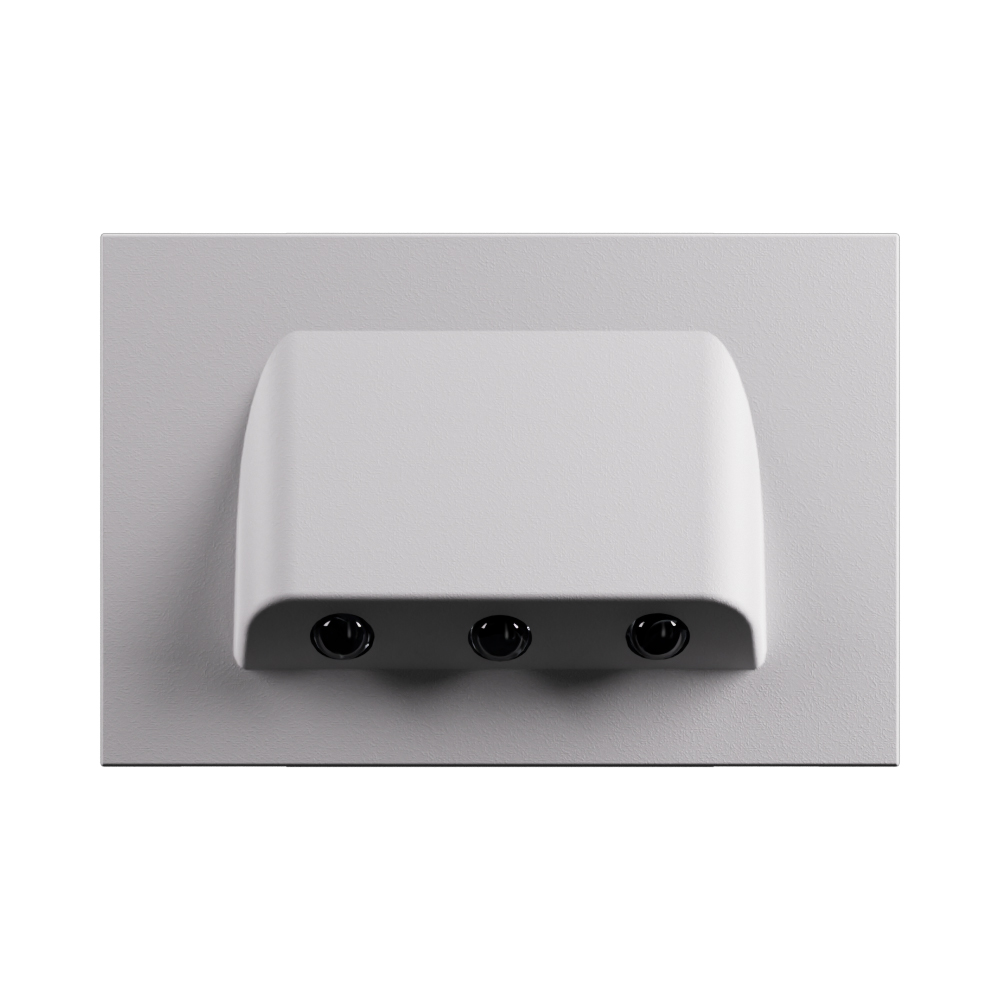

Arteor Advance - 3 modules 230V LED skirting light matt white - Orientation luminaire - Surface mounted IP20 indoor use

Arteor Advance Legrand

Arteor Advance - 3 modules 230V LED skirting light matt white - Orientation luminaire - Surface mounted IP20 indoor use

REF. AC653MW EAN. 3414972768603
Installed at the base of walls, this 3-module 230V LED skirting light delivers energy-efficient white illumination. Its matt white finish, square modular format, and screw-type terminals ensure clean aesthetics, easy wiring.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Installed at the base of walls, this 3-module 230V LED skirting light delivers energy-efficient white illumination. Its matt white finish, square modular format, and screw-type terminals ensure clean aesthetics, easy wiring.

Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Powdery white with a smooth matte aspect
  • The square format enables modularity

Technical characteristics

Lamp type LED not exchangeable
With light source Yes
Depth 67.5 mm
Housing colour White
Type of covering None
Suitable for built-in mounting Yes
With built-in installation box No
Voltage type AC
Nominal voltage (Min-Max) 220-240 V
Type of control gear LED operating device current-controlled
With control gear No
Exchangeable control gear No
Dimming 0-10 V No
Dimming 1-10 V No
Dimming DALI No
Dimming DMX No
Dimming DSI No
Dimming LineSwitch No
Dimming mains voltage modulation No
Dimming manufacturer's proprietary system No
Dimming phase cut-off (trailing edge) No
Dimming phase cut-on (leading edge) No
Dimming potentiometer (integrated) No
Dimming programmable No
Dimming RF No
Dimming Sine Wave Reduction No
Dimming Touch and Dim No
Dimming with push-button No
Dimming Zigbee No
Degree of protection (IP) IP20
Operation by Bluetooth No
Colour of light White
Width 45 mm
Height/depth 18.3 mm
Length 67.5 mm
Type of wiring Loop-through wiring included
Storage temperature (Min-Max) -5-70 °C
Terminal marking indication No
Halogen free No
Cable nature for connection Flexible
Mounting method Surface mounted
Contains Batteries No
