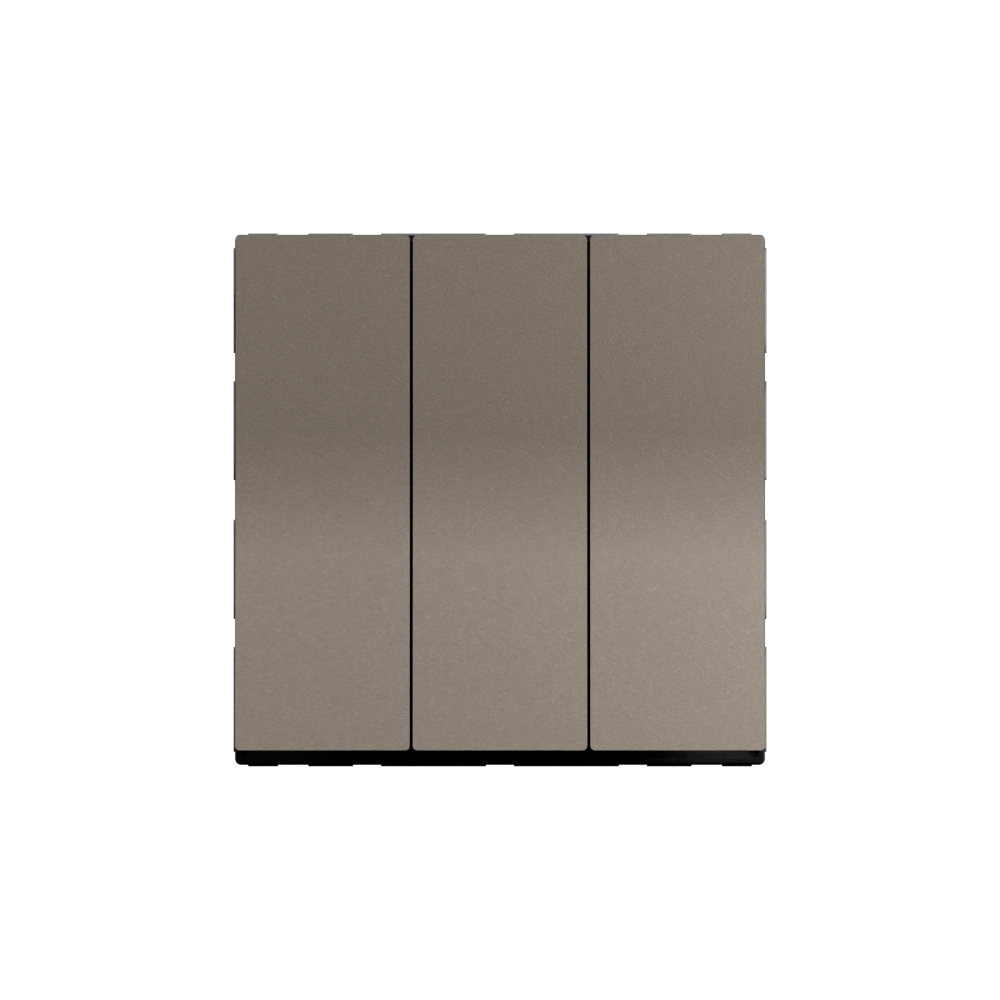

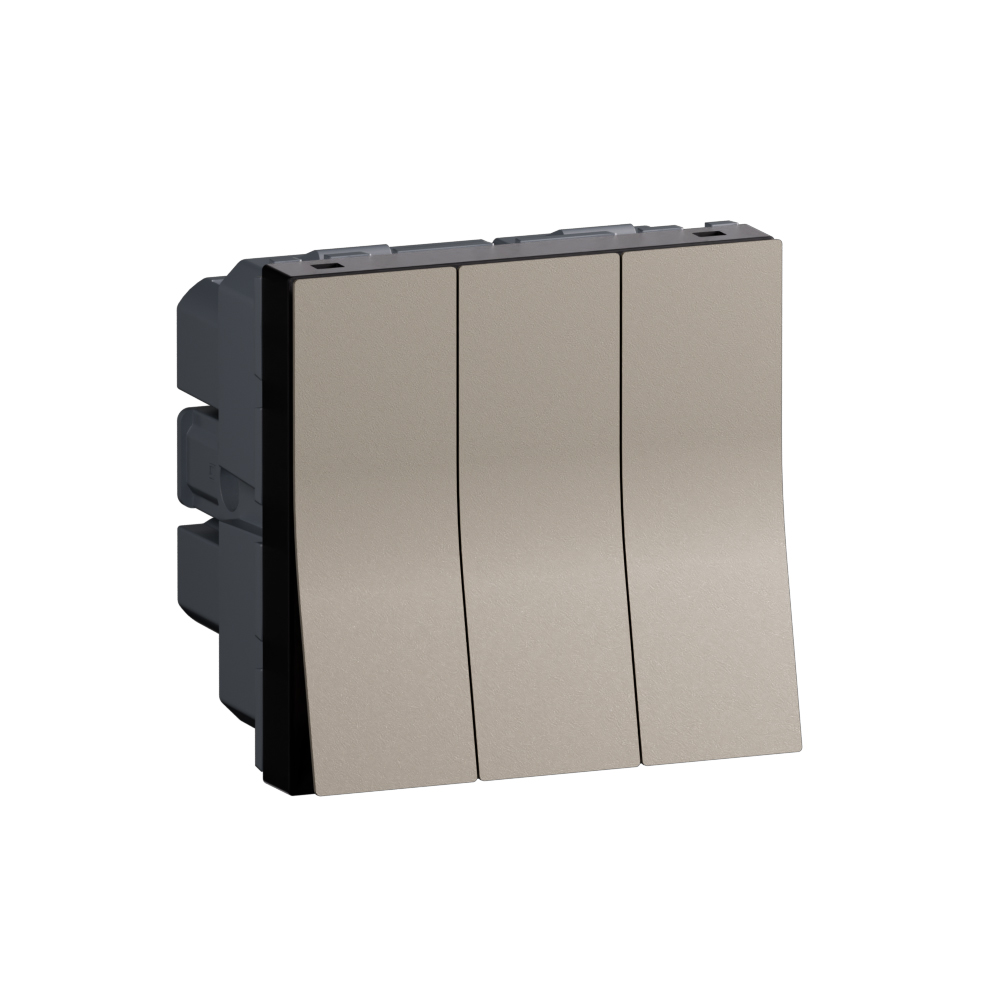

Arteor Advance - 3 gang 2x2 way + 1 way 20AX switch champagne - 3-gang 20AX rocker switch 250V AC IP20 - Champagne finish

Arteor Advance Legrand

Arteor Advance - 3 gang 2x2 way + 1 way 20AX switch champagne - 3-gang 20AX rocker switch 250V AC IP20 - Champagne finish

REF. AC29101CH EAN. 3414972925372
Offers a gentle touch for effortless light control with smooth rocker operation. This 3 gang 2x2 way+1 way 20AX 250V AC switch in champagne provides reliable flush-mounted performance with screw-type terminals.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth rocker operation. This 3 gang 2x2 way+1 way 20AX 250V AC switch in champagne provides reliable flush-mounted performance with screw-type terminals.

Product characteristics
  • Three-gang 2x2-way + 1-way switch rated 20AX, 250V AC for multi-circuit lighting control
  • Champagne (gold) matte lacquered thermoplastic finish coordinates with Arteor Advance aesthetics
  • Rocker/button mechanism engineered for smooth, gentle actuation and precise switching
  • Flush-mounted vertical device with clamp fastening, IP20 rating, and 45x45x41mm dimensions for standard indoor installations
  • Screw-type terminals for flexible or rigid conductors 2.5mm² to 6mm² ensure secure wiring and long-life performance exceeding 10,000 operation cycles
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Warm gray finish infused with ivory hues highlights silky elegance

Technical characteristics

Equipped with 1 Two-way switch
Equipped with 2 Off switch
Method of operation Rocker/button
Mounting direction Vertical
Type of fastening Clamp mounting
With lighting No
Mounting method Flush-mounted
Material Plastic
Material quality Thermoplastic
Halogen free No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
Suitable for degree of protection (IP) IP20
Nominal voltage 250 V
Rated current 20 A
Number of poles 3
Number of contacts as normally open contact 1
Number of contacts as normally closed contact 2
Device width 45 mm
Device height 45 mm
Device depth 41 mm
Min. depth of built-in installation box 28 mm
Voltage type AC
Connection type Screwed terminal
Terminals capacity (Min-Max) 2.5-6 mm²
Cable nature for connection Flexible or rigid
Label space/information surface No
Fitted with USB plug No
