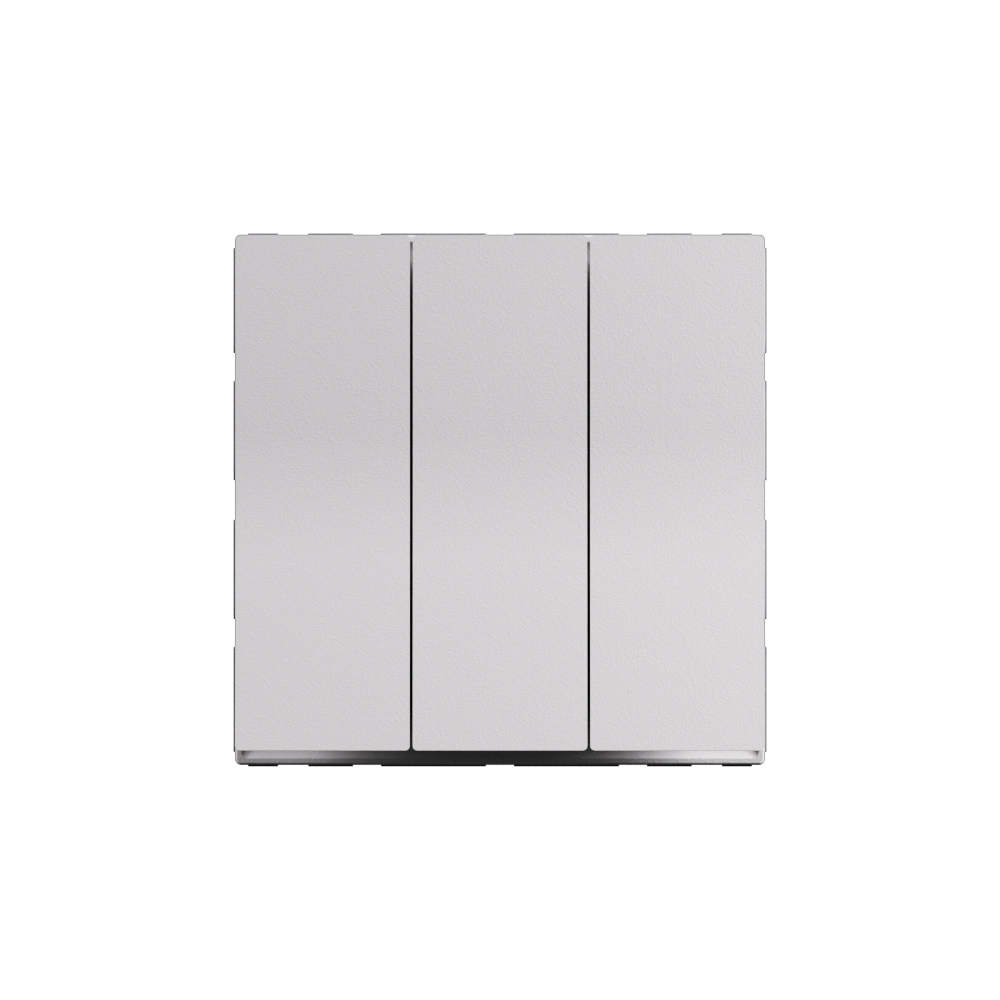

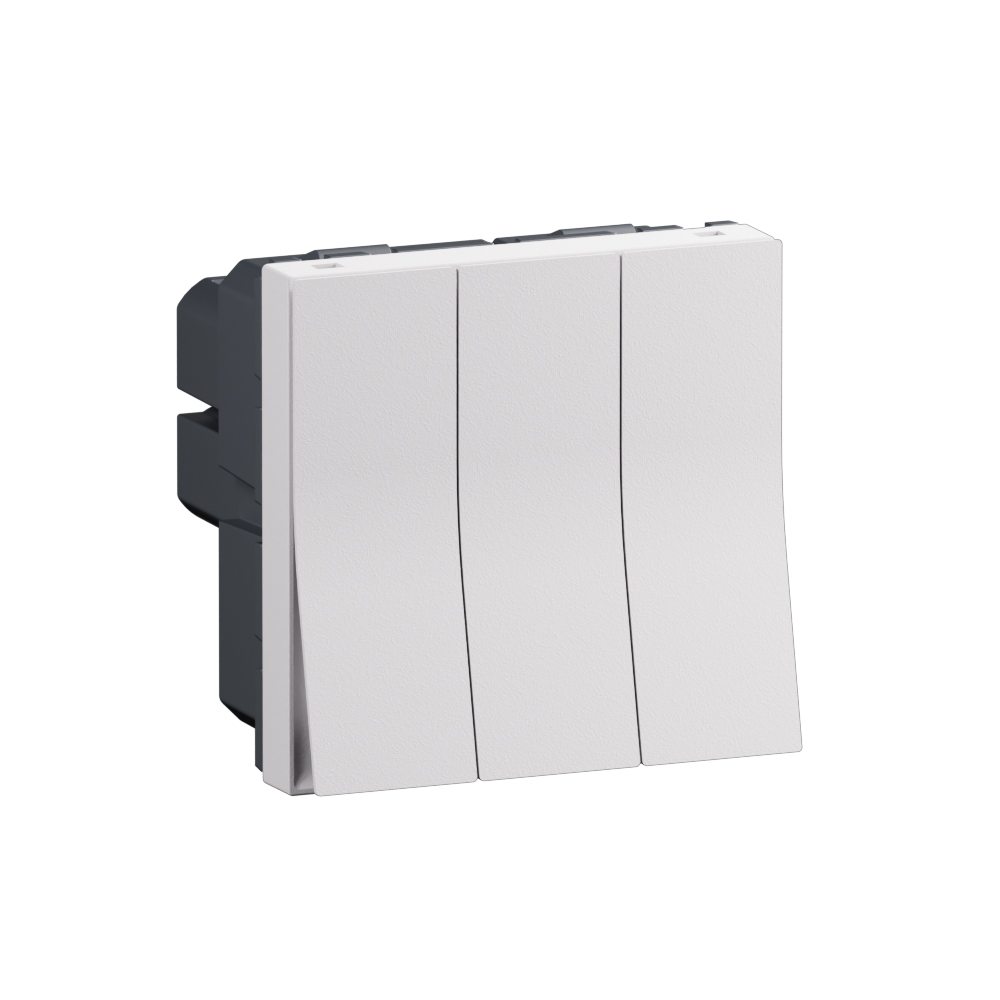

Arteor Advance - 3 gang 1 way 20AX switch matt white - 3x1-pole rocker, 20AX 250V AC - Matt white thermoplastic, halogen free

Arteor Advance Legrand

Arteor Advance - 3 gang 1 way 20AX switch matt white - 3x1-pole rocker, 20AX 250V AC - Matt white thermoplastic, halogen free

REF. AC21312MW EAN. 3414972745505
Offers a gentle touch for effortless light control with three-gang, 1-way 20AX switching. Its smooth rocker operation and matt white thermoplastic finish ensure reliable performance and a refined aesthetic. Screw-type terminals.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with three-gang, 1-way 20AX switching. Its smooth rocker operation and matt white thermoplastic finish ensure reliable performance and a refined aesthetic. Screw-type terminals.

Product characteristics
  • Three-gang one-way 20AX installation switch, 3x1-pole, for domestic lighting control
  • Matt white thermoplastic finish (similar to RAL 9003) for a discreet, modern aesthetic
  • Rocker mechanism engineered for smooth, gentle actuation and precise switching
  • 20AX, 250V AC rating suitable for full-load switching of inductive and resistive SBL loads and LED circuits
  • Screw-type terminals for secure wiring of 0.75mm² to 1.5mm² flexible or rigid conductors, IP20 indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 10,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch
  • Powdery white with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Wiring system Switch 3x1-pole
Method of operation Rocker/button
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 3
Mounting method Module frame
Type of fastening Engage (snap)
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Label space/information surface No
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK02
Nominal voltage 250 V
Rated current 20 A
Switching current for fluorescent lamps 20 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 45.1 mm
Device height 45.1 mm
Device depth 40.6 mm
Built-in depth 27.5 mm
Min. depth of built-in installation box 45 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) 0-70 °C
Voltage type AC
Frequency (Min-Max) 50 -60 Hz
Terminal marking indication Yes
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
