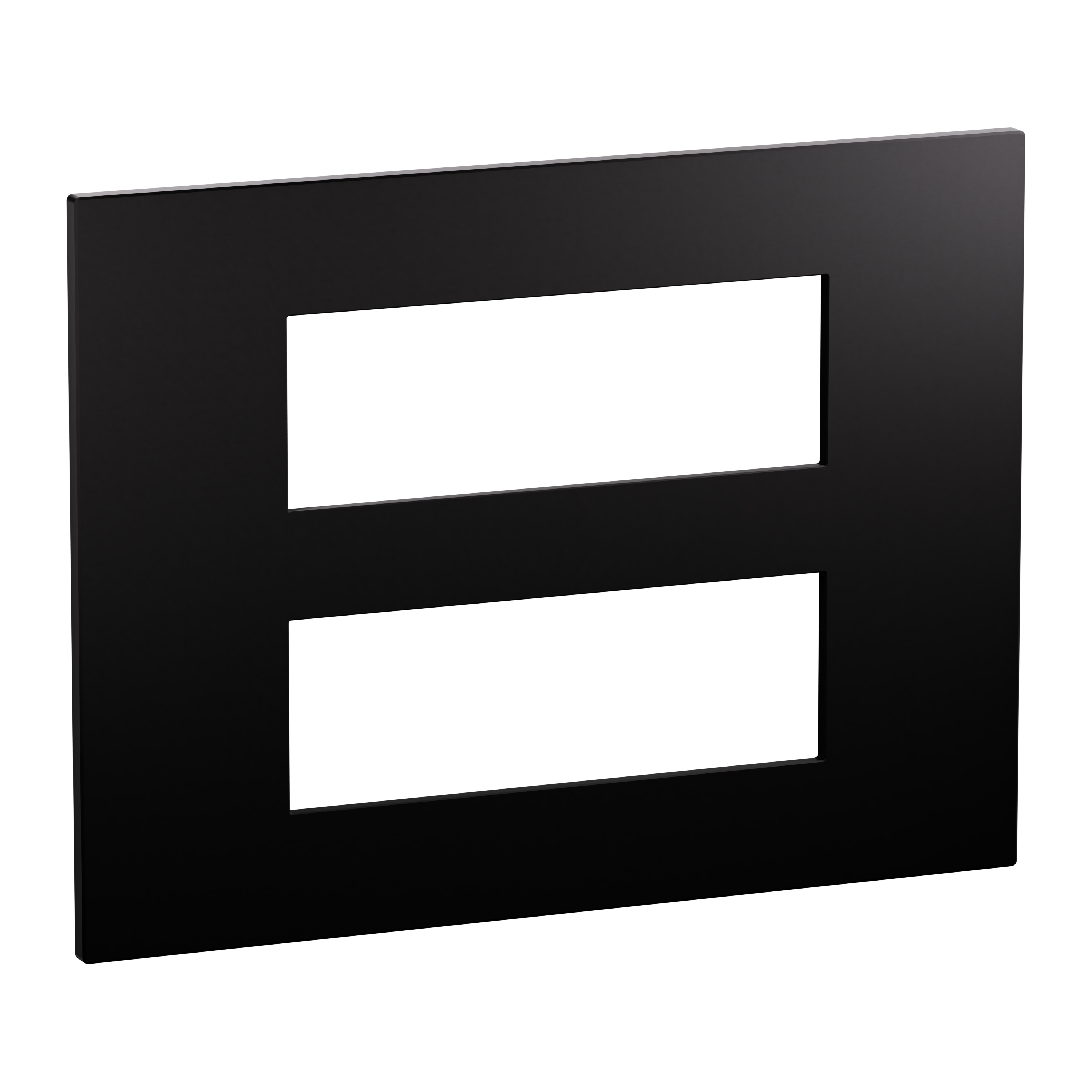

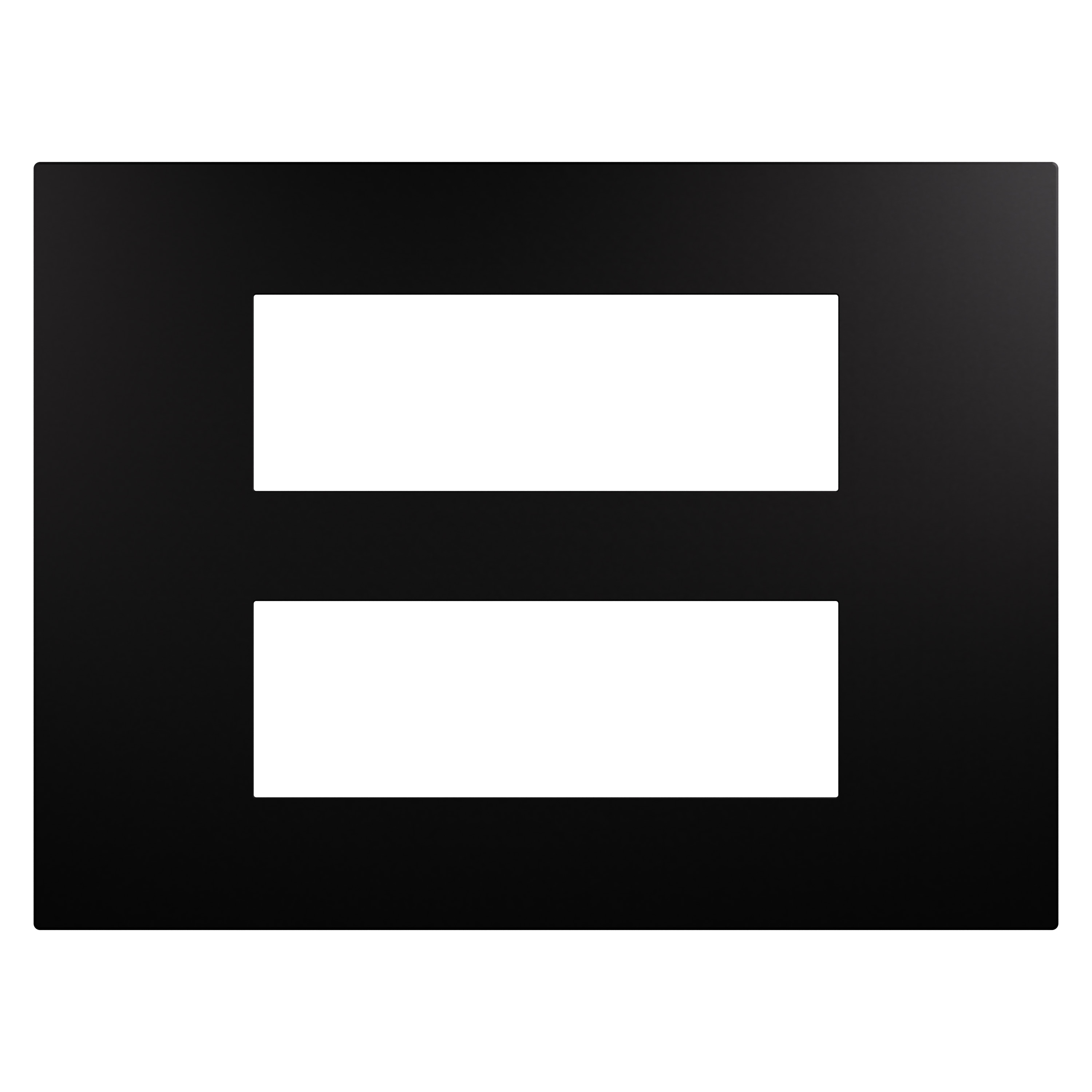

Arteor Advance - 2x6 modules French/Schuko plate matt black - 2x6 modules horizontal/vertical - Matt deep black thermoplastic IP20

Arteor Advance Legrand

Arteor Advance - 2x6 modules French/Schuko plate matt black - 2x6 modules horizontal/vertical - Matt deep black thermoplastic IP20

REF. AC1122MB EAN. 3414973069952
This 2x6 modules French/Schuko plate in matt black offers minimalist square design and flexible modular configurations. Its thermoplastic, halogen-free construction and IP20 rating suit indoor flush-mounted or duct installations.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x6 modules French/Schuko plate in matt black offers minimalist square design and flexible modular configurations. Its thermoplastic, halogen-free construction and IP20 rating suit indoor flush-mounted or duct installations.

Product characteristics
  • 2 x 6 modules French/Schuko cover frame for domestic switching devices, enabling high-density configurations in Arteor Advance installations
  • Deep matt black finish for a minimalist, contemporary aesthetic and reduced light reflection in premium residential and commercial projects
  • Polycarbonate thermoplastic plate, halogen free and impact-resistant, ensuring long-term dimensional stability and durability
  • Square format with horizontal 6 x vertical 2 module layout, allowing modularity and flexible configuration of mechanisms
  • Flush-mounted IP20 plate with snap fastening and label space, optimized for wall duct and subfloor duct box installations (237.5x178x8.5mm)
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Deep black with a smooth matt aspect
  • Minimalist design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 2
Number of modules horizontal (module system) 6
Number of modules vertical (module system) 2
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 237.5 mm
Height 178 mm
Depth 8.5 mm
Built-in width 135.5 mm
Built-in height 45.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04877EN-00.pdf pdf (0.53 Mo)
