Arteor Advance - 2x4 vertical plate for 1 module matt black - Thermoplastic polycarbonate IP20 - Deep smooth matt black finish

Arteor Advance Legrand

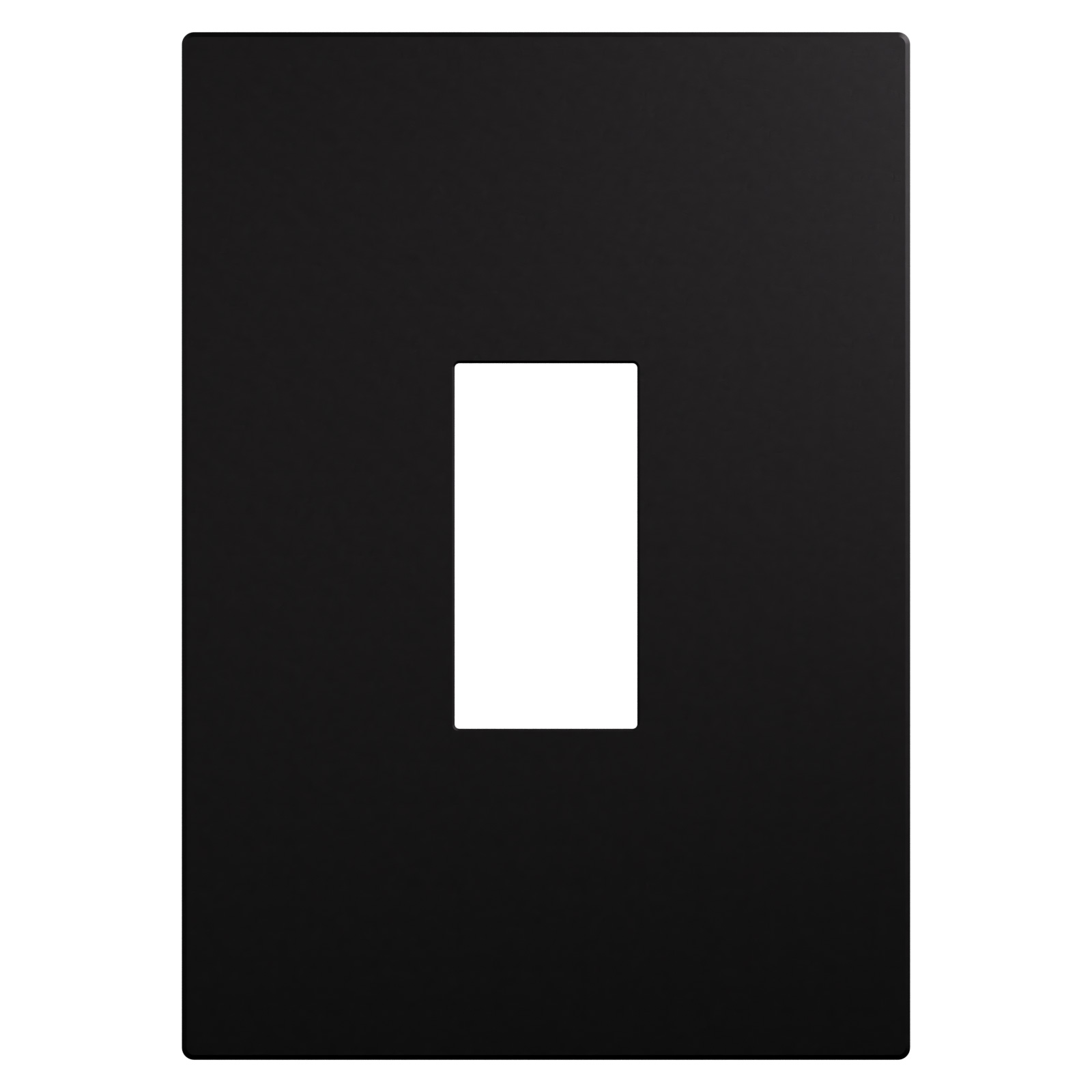

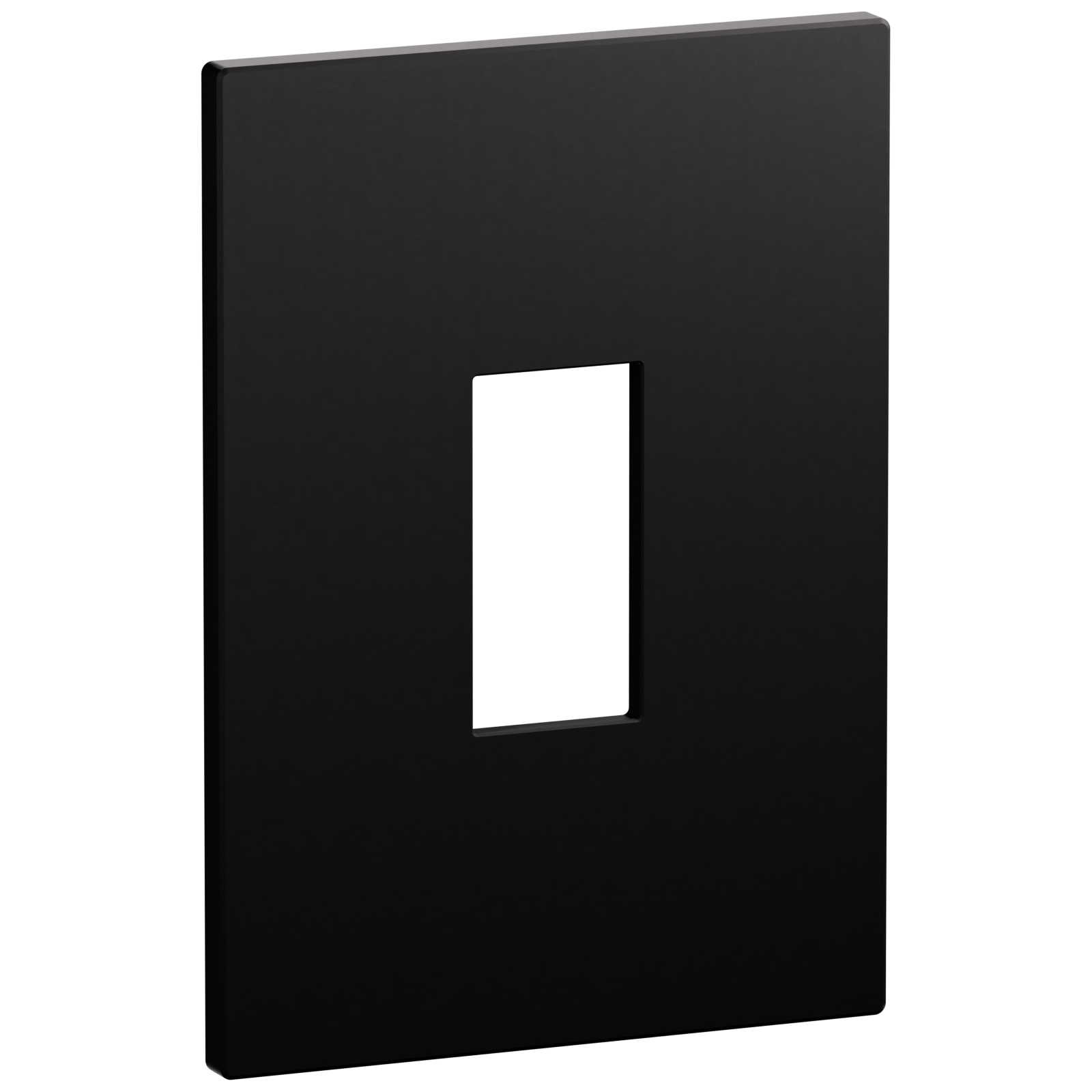

Arteor Advance - 2x4 vertical plate for 1 module matt black - Thermoplastic polycarbonate IP20 - Deep smooth matt black finish

REF. AC1131MB EAN. 3414973071870
This 2x4 vertical plate for 1 module in matt black offers deep, smooth aesthetics and minimalist square design. Its thermoplastic, halogen-free construction ensures long-term appearance.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 vertical plate for 1 module in matt black offers deep, smooth aesthetics and minimalist square design. Its thermoplastic, halogen-free construction ensures long-term appearance.

Product characteristics
  • 2x4 vertical cover plate for one 1-module domestic switching device, optimized for Arteor Advance installations
  • Deep matt black finish for a minimalist, contemporary aesthetic and reduced light reflection
  • High-quality thermoplastic polycarbonate plate, halogen free, ensuring mechanical robustness and long-term dimensional stability
  • Square geometry enabling modularity and flexible configuration within standardized 2x4 wall boxes
  • Flush-mounted, snap-on IP20 plate (90-Drummm x127mm x8.5mm) with label space, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Deep black with a smooth matte aspect
  • Minimalist design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 127 mm
Depth 8.5 mm
Built-in width 22.5 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04885EN-00.pdf pdf (0.5 Mo)
