Arteor Advance - 2x4 US vertical plate for 3 modules - Real brushed stainless steel - Square 3 modules 2x4 format

Arteor Advance Legrand

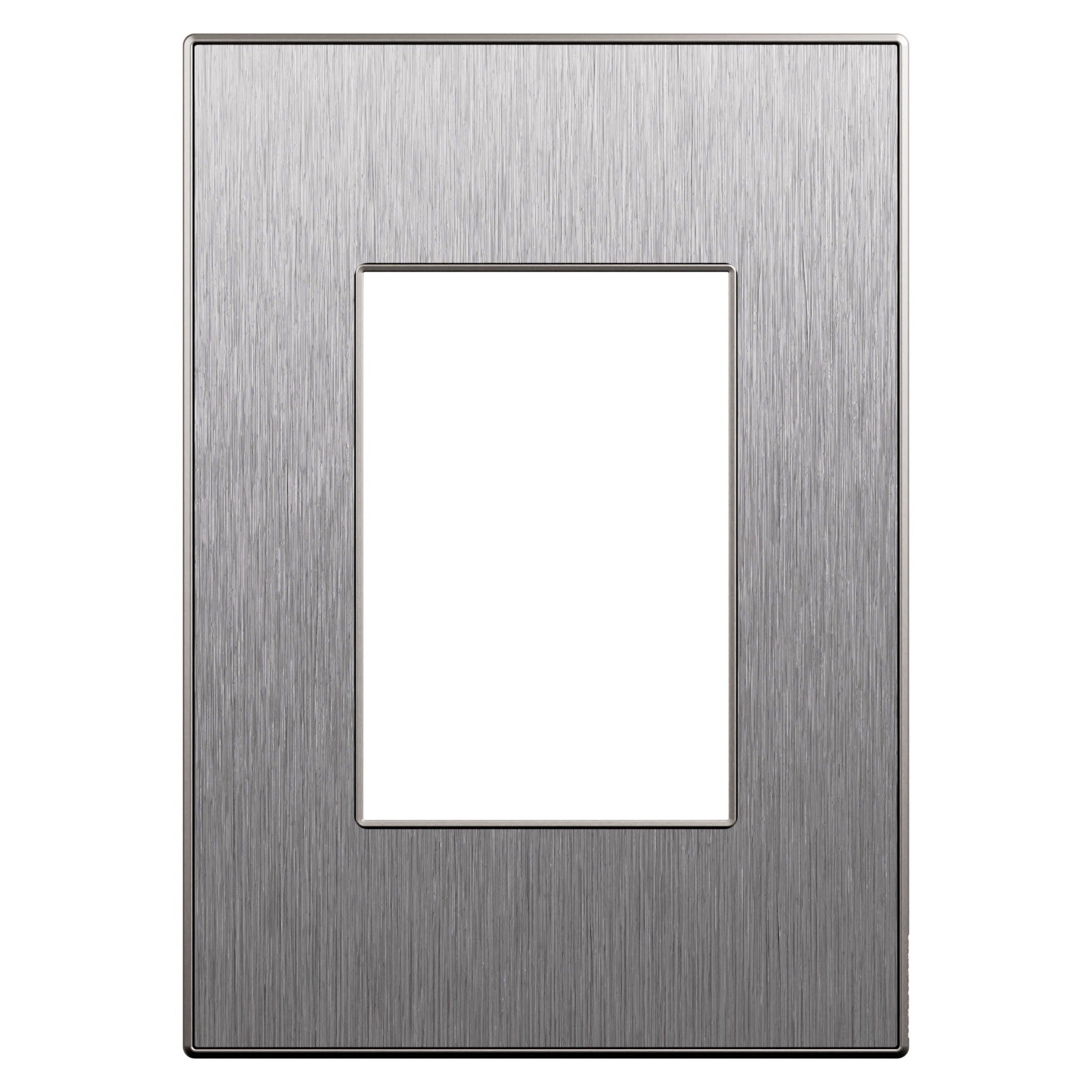

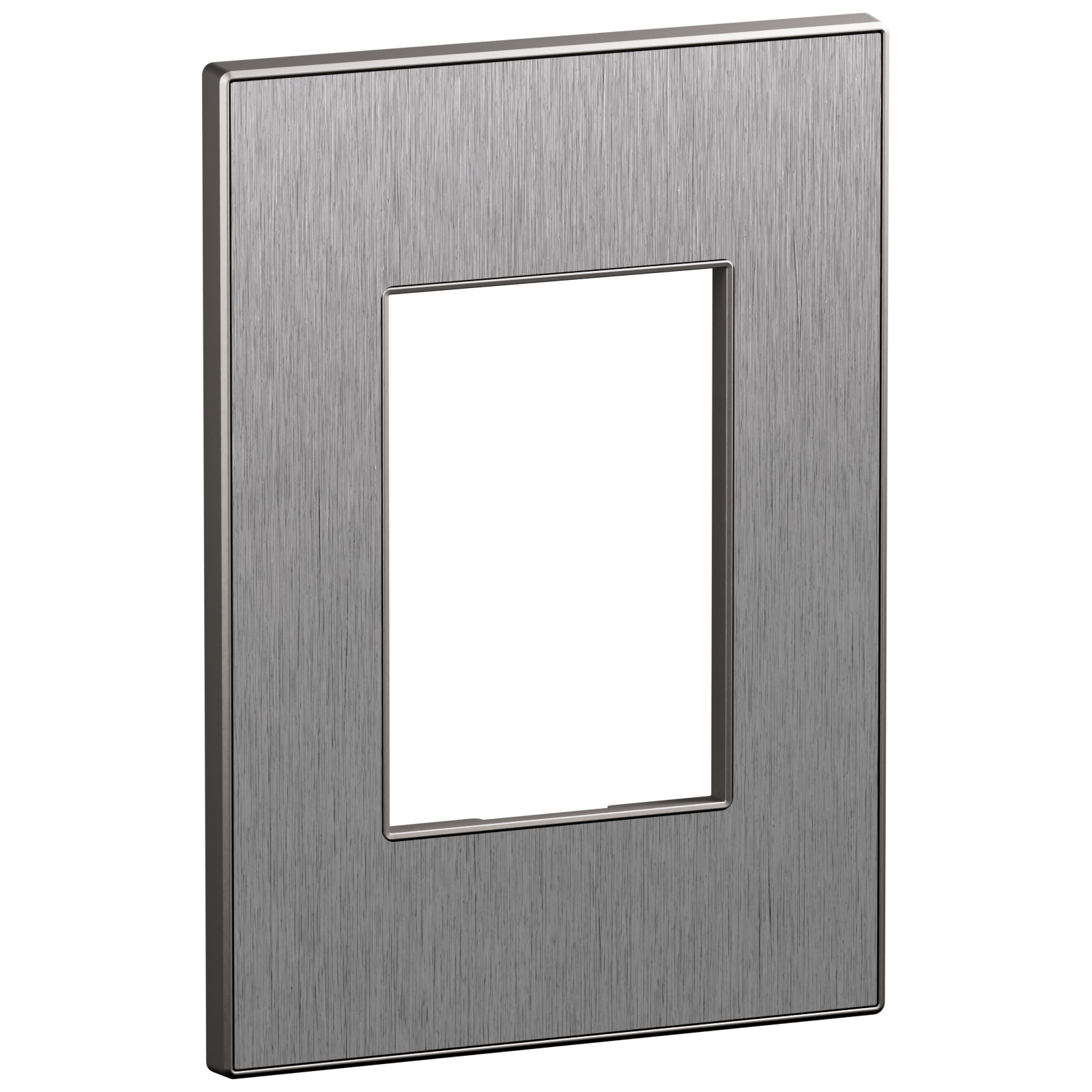

Arteor Advance - 2x4 US vertical plate for 3 modules - Real brushed stainless steel - Square 3 modules 2x4 format

REF. AC1127BS EAN. 3414973070675
This 2x4 US vertical plate for three modules in real brushed stainless steel offers refined square-format design and halogen-free construction. Its snap fastening and flush-mounted compatibility ensure precise installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 US vertical plate for three modules in real brushed stainless steel offers refined square-format design and halogen-free construction. Its snap fastening and flush-mounted compatibility ensure precise installation.

Product characteristics
  • 2x4 US vertical cover frame for three modules, optimized for Arteor Advance domestic switching devices
  • Real brushed stainless steel construction with matt brushed surface for enhanced durability and premium finish
  • Metal plate made of halogen-free stainless steel, ensuring long-term aesthetic stability against daily wear and sunlight exposure
  • Square format with 3 vertical modules (IP20), enabling modularity and flexible configuration in flush-mounted and duct installations
  • Snap-on fastening with label space, 127mm height and 8.5mm depth, designed for precise indoor wall alignment and subfloor/wall duct compatibility
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 127 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 67.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04886EN-00.pdf pdf (0.51 Mo)
