Arteor Advance - 2x4 US vertical plate for 3 modules - Matt lacquered aluminum - Snap-fit flush mount - Square format

Arteor Advance Legrand

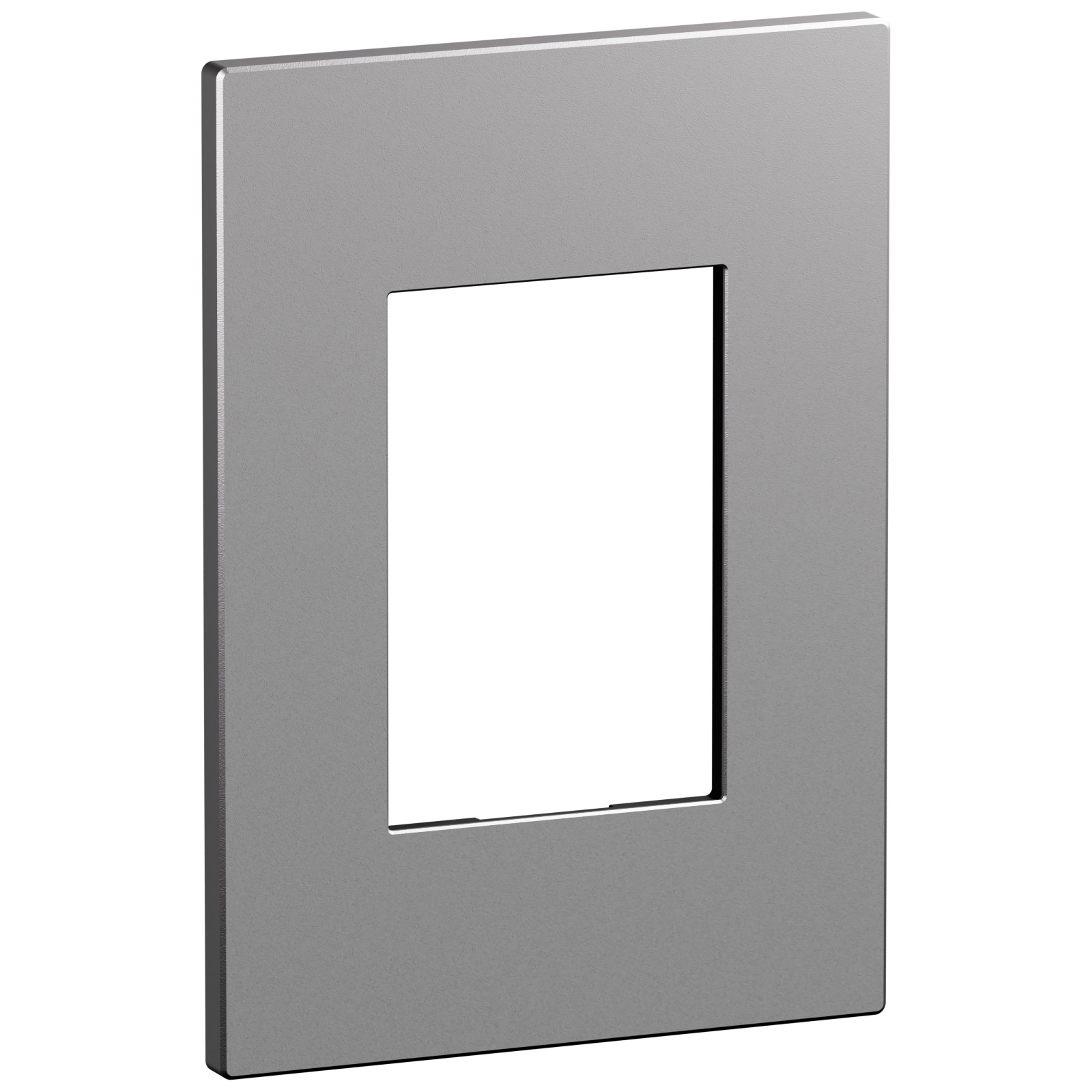

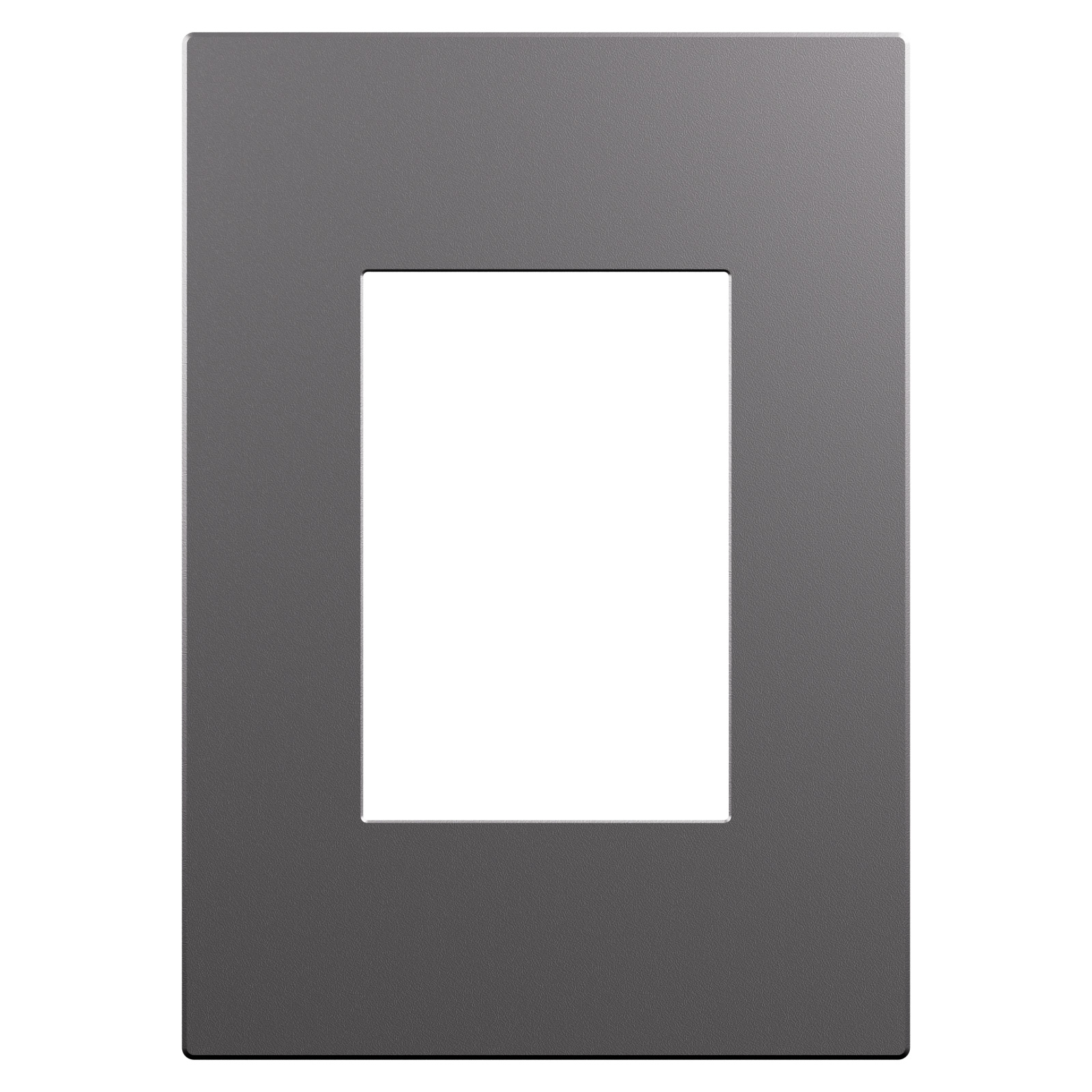

Arteor Advance - 2x4 US vertical plate for 3 modules - Matt lacquered aluminum - Snap-fit flush mount - Square format

REF. AC1127SA EAN. 3414973070910
This 2x4 US vertical plate for 3 modules in solid aluminum offers robust metal construction, halogen-free safety, and IP20 protection. Its matt lacquered finish ensures long-term aesthetics. Snap fastening enables clean installation.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 US vertical plate for 3 modules in solid aluminum offers robust metal construction, halogen-free safety, and IP20 protection. Its matt lacquered finish ensures long-term aesthetics. Snap fastening enables clean installation.

Product characteristics
  • 2x4 US vertical cover frame for three modules, optimized for 3 vertical units in Arteor Advance installations
  • Solid aluminum metal construction, halogen free and lacquered for enhanced durability in professional environments
  • Plates are made of real plain aluminum with matt surface finishing and muted reflection for a refined, technical aesthetic
  • Square format with 90mmx127mm height, enabling modularity and flexible configuration in flush-mounted applications
  • IP20-rated, snap-fastening plate suitable for flush-mounted, subfloor duct box and wall duct installations, with label space for circuit identification
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 127 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 67.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04887EN-00.pdf pdf (0.51 Mo)
