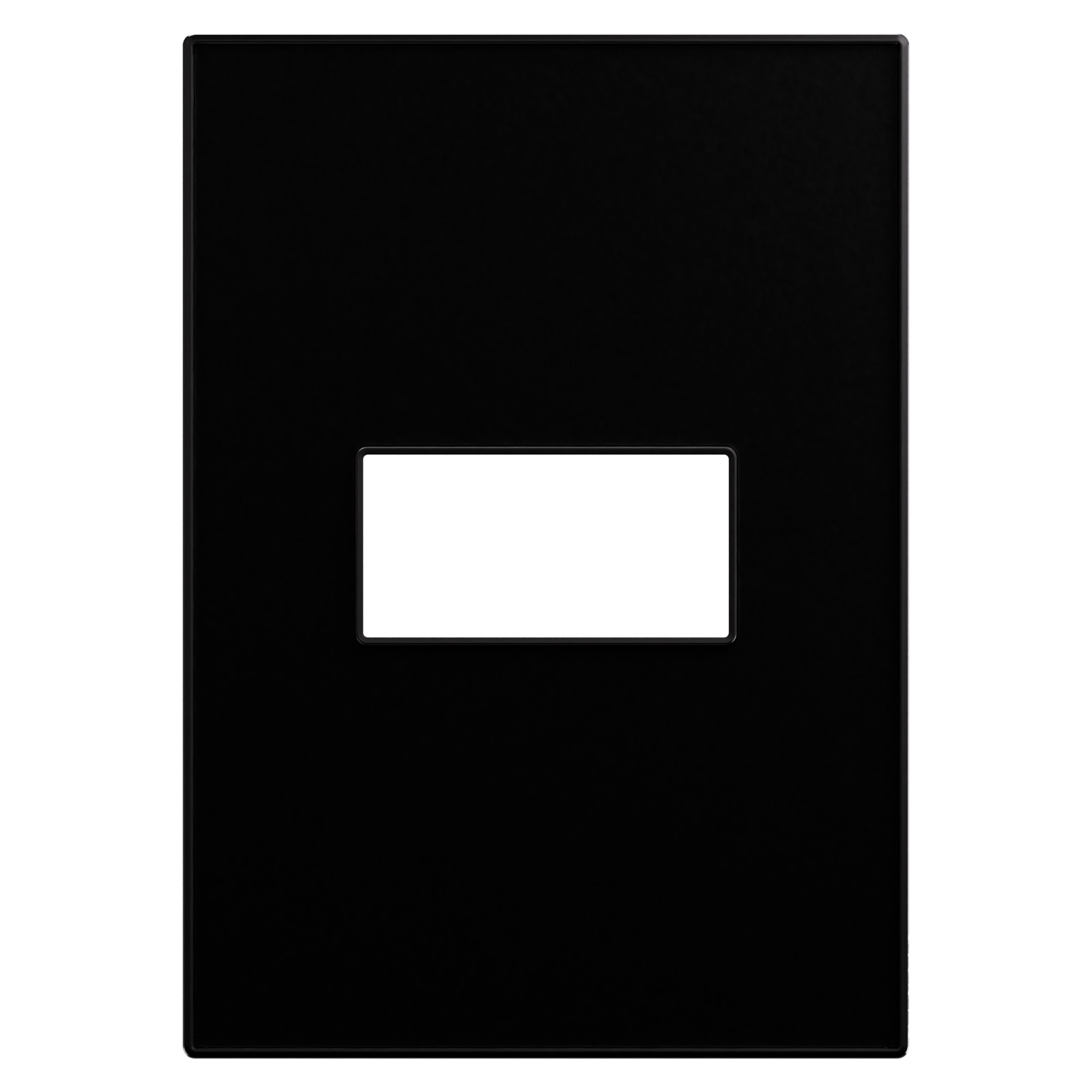

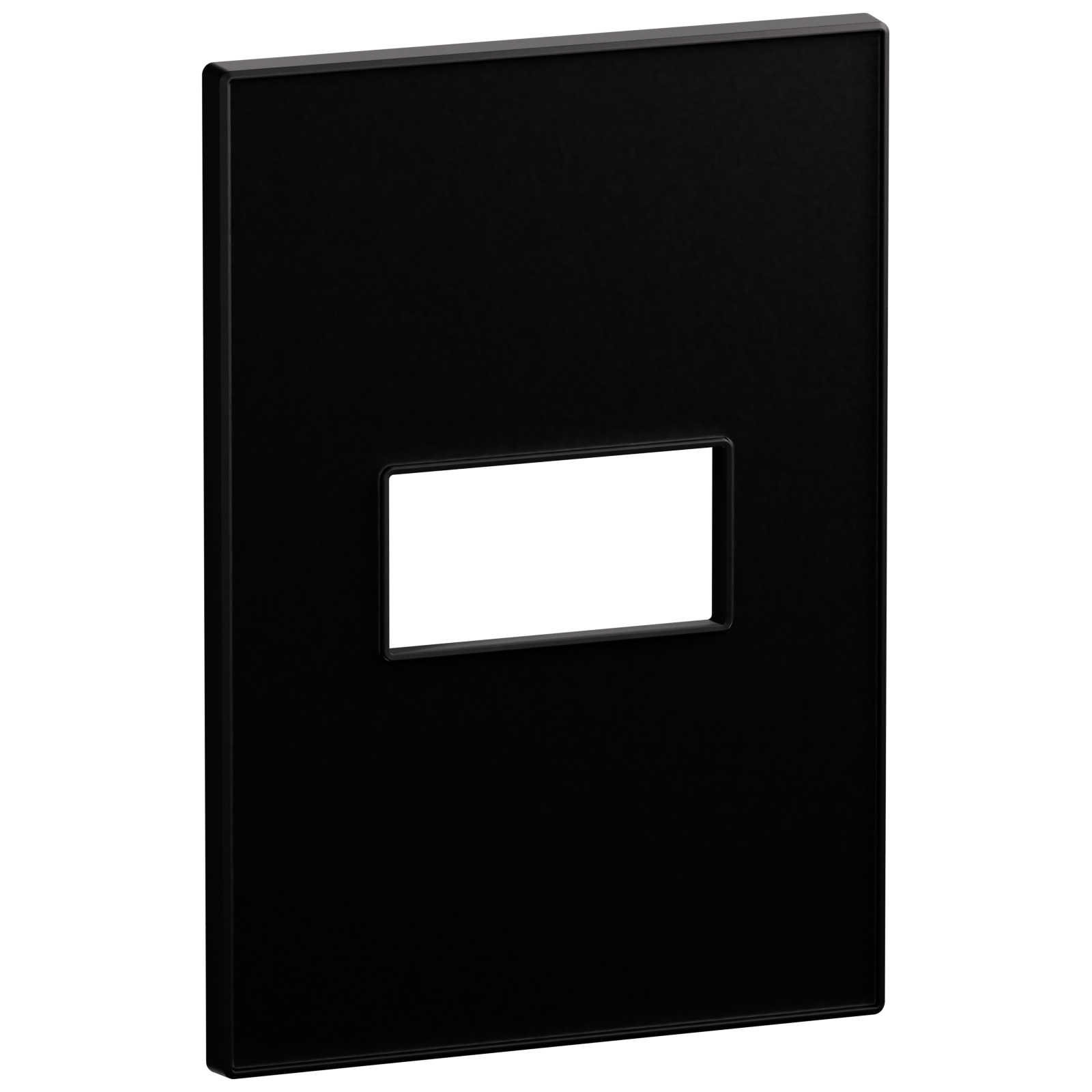

Arteor Advance - 2x4 US vertical plate for 1-module switch frosted black - Crystal polycarbonate square design - Matt halogen-free IP20

REF. AC1135FB EAN. 3414973072624
This 2x4 US vertical plate for 1-module switches in frosted black crystal polycarbonate offers refined square-format design and modular flexibility.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 US vertical plate for 1-module switches in frosted black crystal polycarbonate offers refined square-format design and modular flexibility.

Product characteristics
  • 2x4 US vertical plate for one-module switch, optimized for standard domestic switching device layouts
  • Frosted black matte finish for reduced glare and refined, contemporary aesthetic
  • Crystal polycarbonate thermoplastic plate, halogen free, ensuring high mechanical strength and long-term visual stability
  • Square format enabling modularity and flexible configuration within Arteor Advance installations
  • IP20 flush-mounted cover frame with snap fastening, 127mm height and 8.5mm depth, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Crystal PC, set in a cradle, providing both velvety touch and black opacity
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 127 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 22.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04886EN-00.pdf pdf (0.51 Mo)
