Arteor Advance - 2x4 Plate for 3 Modules Slender Frosted Black - Crystal Polycarbonate Velvet-Touch Finish - Horizontal Flush-Mount

Arteor Advance Legrand

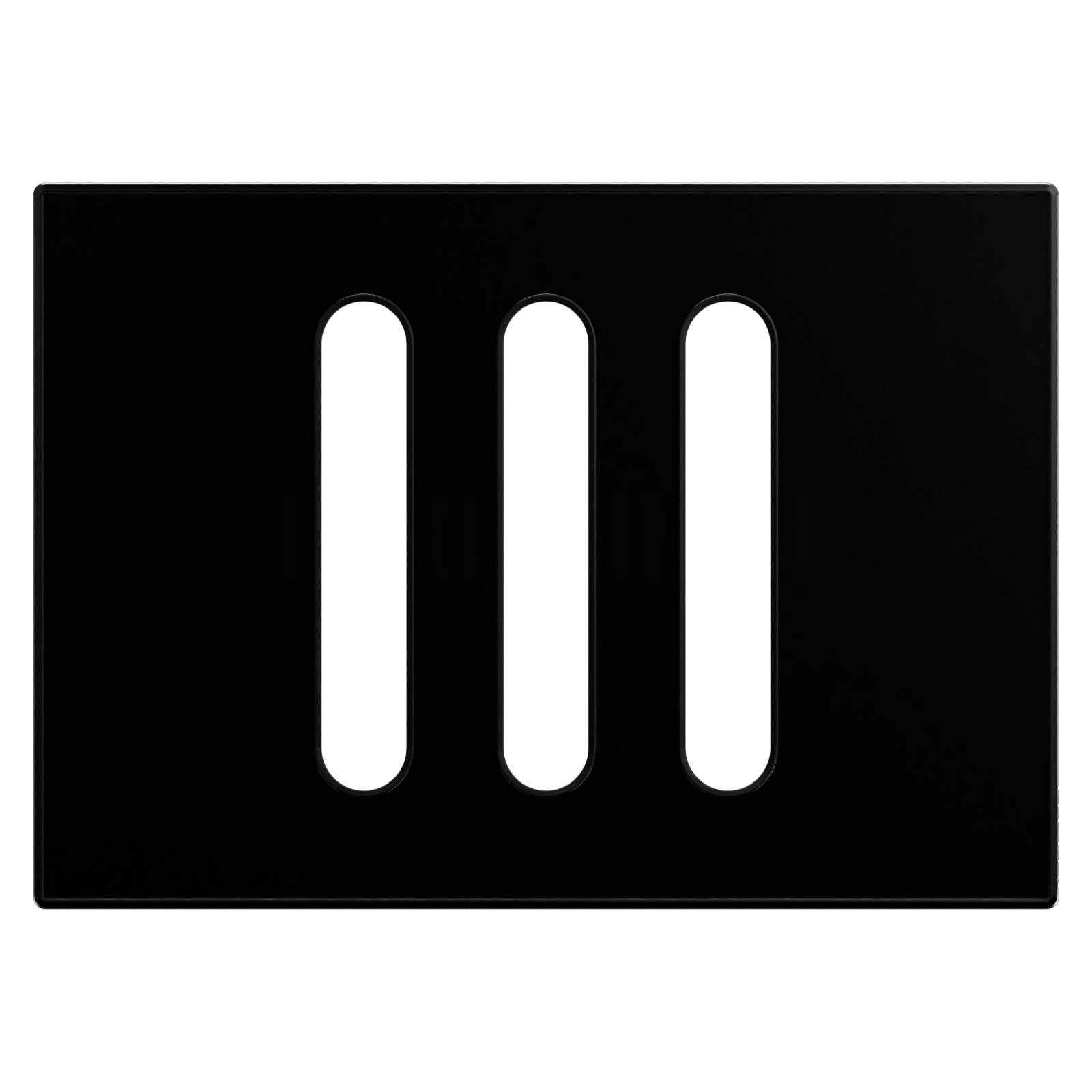

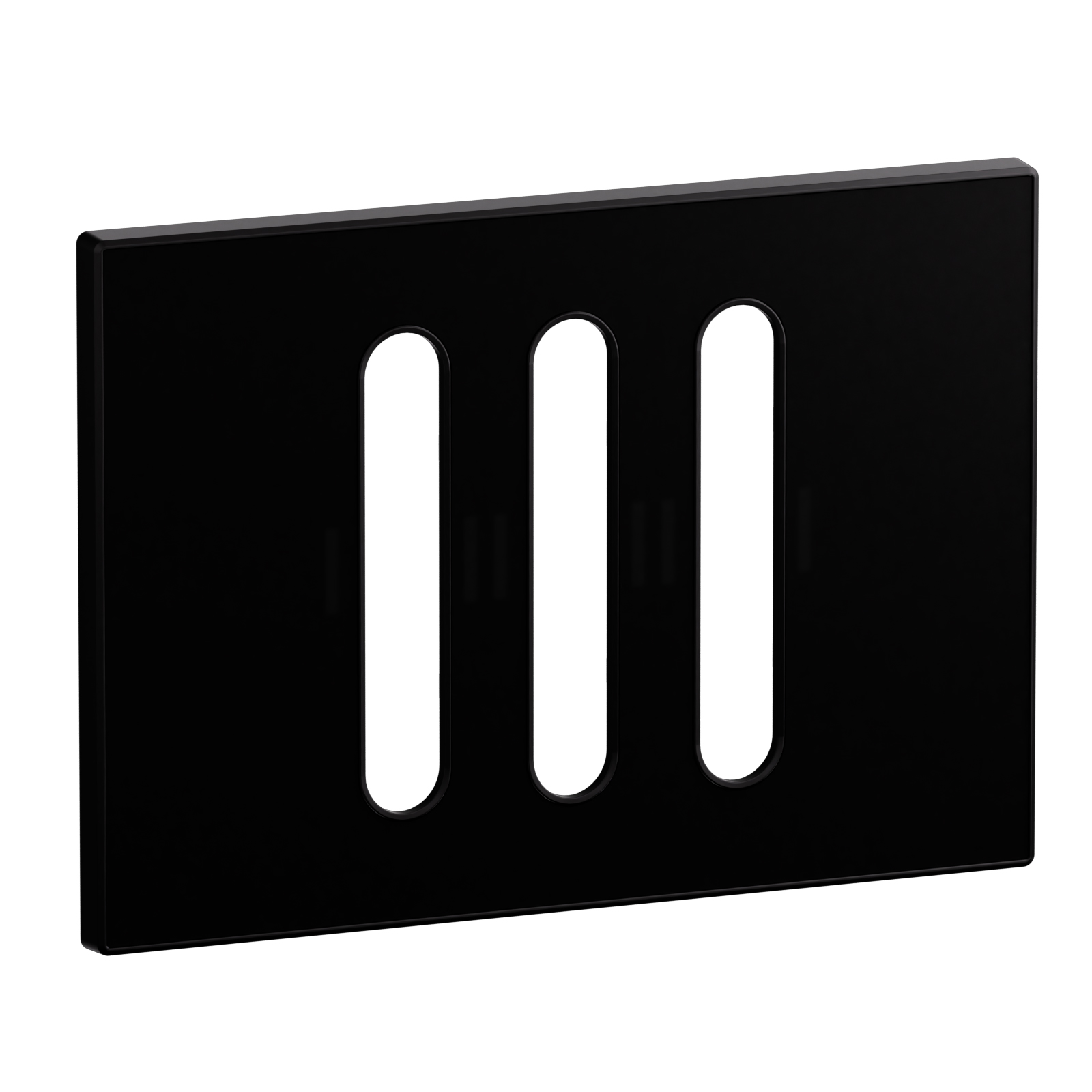

Arteor Advance - 2x4 Plate for 3 Modules Slender Frosted Black - Crystal Polycarbonate Velvet-Touch Finish - Horizontal Flush-Mount

REF. AA1118FB EAN. 3414972722506
This 2x4 plate for 3 modules features a slender, frosted black crystal polycarbonate design with velvet touch and high opacity. Its refined geometry ensures an elegant finish for Arteor Advance devices.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 plate for 3 modules features a slender, frosted black crystal polycarbonate design with velvet touch and high opacity. Its refined geometry ensures an elegant finish for Arteor Advance devices.

Product characteristics
  • Three-module 2x4 cover frame for domestic switching devices, providing horizontal accommodation for 3 modules in a single-gang configuration
  • Frosted black matte finish for reduced glare and a refined, contemporary aesthetic in technical and architectural installations
  • Crystal polycarbonate plate in a thermoplastic cradle, delivering high mechanical strength, black opacity, and a velvet-touch surface
  • Ultra-slender profile with 8.5mm depth for a flush-mounted, low-protrusion appearance on the wall
  • Integrated adjuster ensures precise alignment and perfect wall installation; recommended for indoor flush-mounted applications at -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Crystal PC, set in a cradle, providing both velvet touch and black opacity
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04502EN-00.pdf pdf (0.5 Mo)
