Arteor Advance - 2x4 plate for 3 modules slender brushed stainless steel - Horizontal 3 modules cover frame - Brushed stainless steel

Arteor Advance Legrand

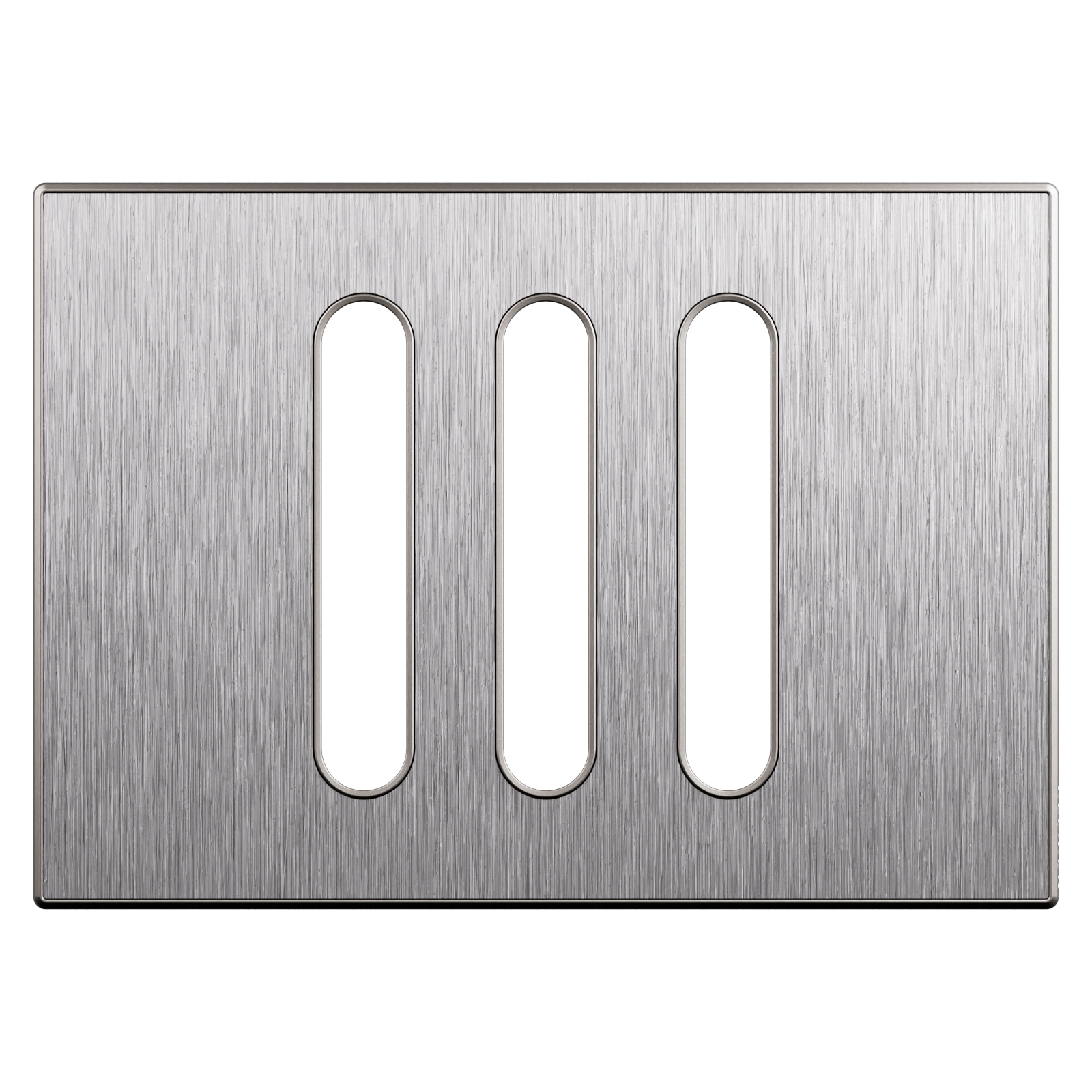

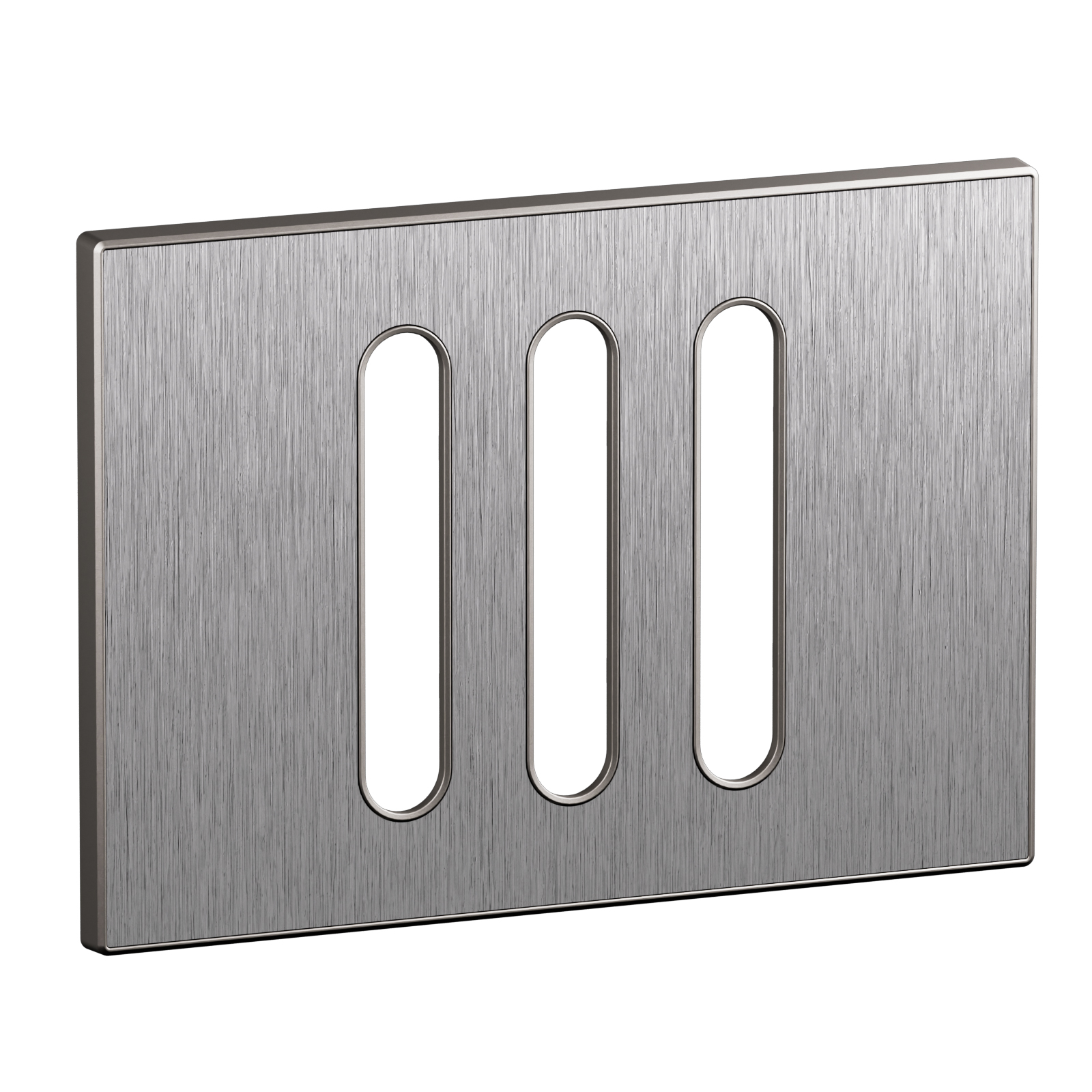

Arteor Advance - 2x4 plate for 3 modules slender brushed stainless steel - Horizontal 3 modules cover frame - Brushed stainless steel

REF. AA1118BS EAN. 3414972722452
This 2x4 plate for 3 modules features real brushed stainless steel with a matt finish. Its snap fastening supports flush-mounted, horizontal 3 modules layouts. An integrated adjuster ensures precise wall alignment for Arteor Advance devices
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 plate for 3 modules features real brushed stainless steel with a matt finish. Its snap fastening supports flush-mounted, horizontal 3 modules layouts. An integrated adjuster ensures precise wall alignment for Arteor Advance devices

Product characteristics
  • Three-module 2x4 cover frame for domestic switching devices, providing capacity for 3 horizontal modules in a single-gang layout
  • Real brushed stainless steel construction with matt finish for high durability, corrosion resistance, and premium aesthetic
  • Plates are made of real brushed stainless steel metal, halogen free and non-transparent, ensuring robust, long-life installation
  • Slender 8.5mm depth profile for a refined, low-projection appearance on flush-mounted installations
  • Horizontal flush-mounted 127x90mm plate with snap fastening, optimized for indoor use within -5° C to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design
  • Unique design blending straight and organic lines

Technical characteristics

Number of units 3
Mounting direction Horizontal
Number of units horizontal 3
Number of units vertical 1
Number of modules horizontal (module system) 3
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04502EN-00.pdf pdf (0.5 Mo)
