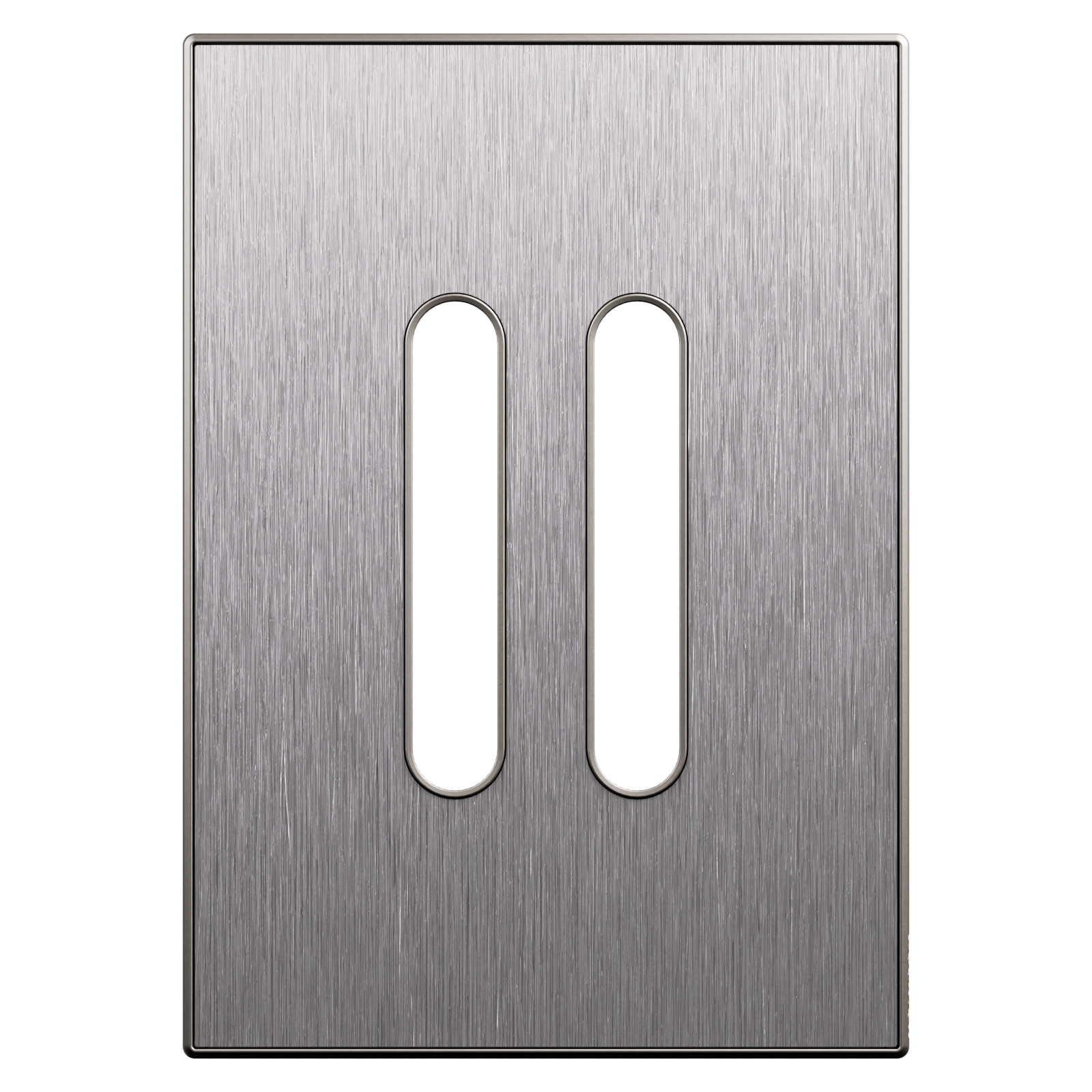

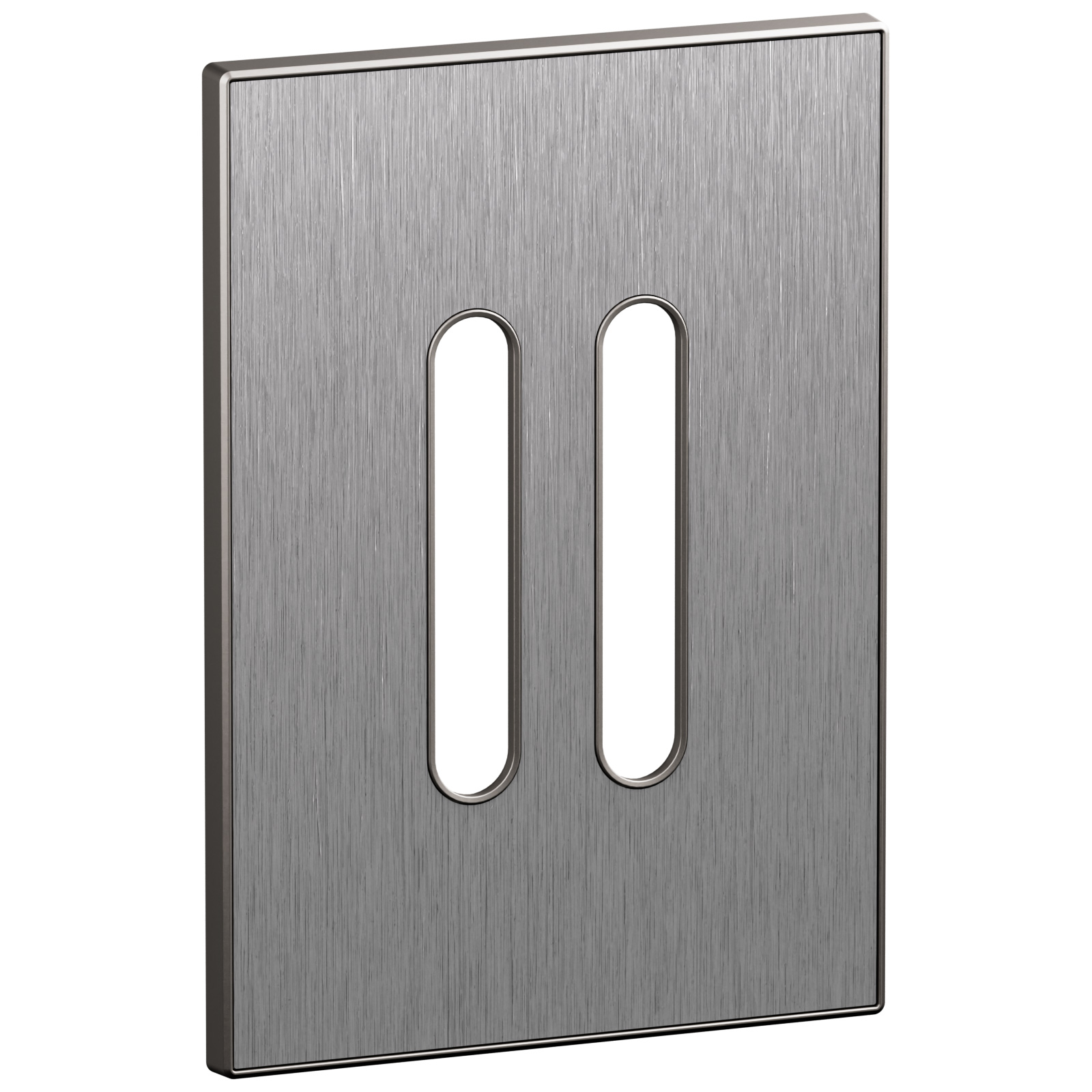

Arteor Advance - 2x4 IT/US vertical plate for 2x1 module slender switches brushed stainless steel - Matt finish IP20 flush mounting

Arteor Advance Legrand

Arteor Advance - 2x4 IT/US vertical plate for 2x1 module slender switches brushed stainless steel - Matt finish IP20 flush mounting

REF. AA1138BS EAN. 3414973067750
This 2x4 vertical plate for 2x1 module slender switches in real brushed stainless steel with refined matt finish features snap-on mounting and flush-mount compatibility for clean integration and long-term aesthetics.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 vertical plate for 2x1 module slender switches in real brushed stainless steel with refined matt finish features snap-on mounting and flush-mount compatibility for clean integration and long-term aesthetics.

Product characteristics
  • 2x4 vertical cover frame for 2x1 module slender switches, optimized for IT/US boxes
  • Brushed stainless steel metal plate with matt surface for a refined, technical finish
  • Plates are made of real brushed stainless steel, ensuring long-term aesthetics against daily wear and sunlight exposure
  • Slender 8.5mm profile for a low-projection, minimalist appearance on the wall
  • IP20 flush-mounted frame with snap fastening, suitable for wall duct and subfloor installation, with label space for circuit identification
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Real brushed stainless steel, set in a cradle, with a slight ethereal effect
  • Refined design

Technical characteristics

Number of units 2
Mounting direction Vertical
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Stainless steel
Halogen free Yes
Antimicrobial treatment No
Surface protection Brushed
Surface finishing Matt
Colour Stainless steel
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 127 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04886EN-00.pdf pdf (0.51 Mo)
