Arteor Advance - 2x4 Italian/US Vertical Plate for 2x1 Module Slender Switches Midnight Blue - Matt Lacquered Aluminum

Arteor Advance Legrand

Arteor Advance - 2x4 Italian/US Vertical Plate for 2x1 Module Slender Switches Midnight Blue - Matt Lacquered Aluminum

REF. AA1138NB EAN. 3414973067873

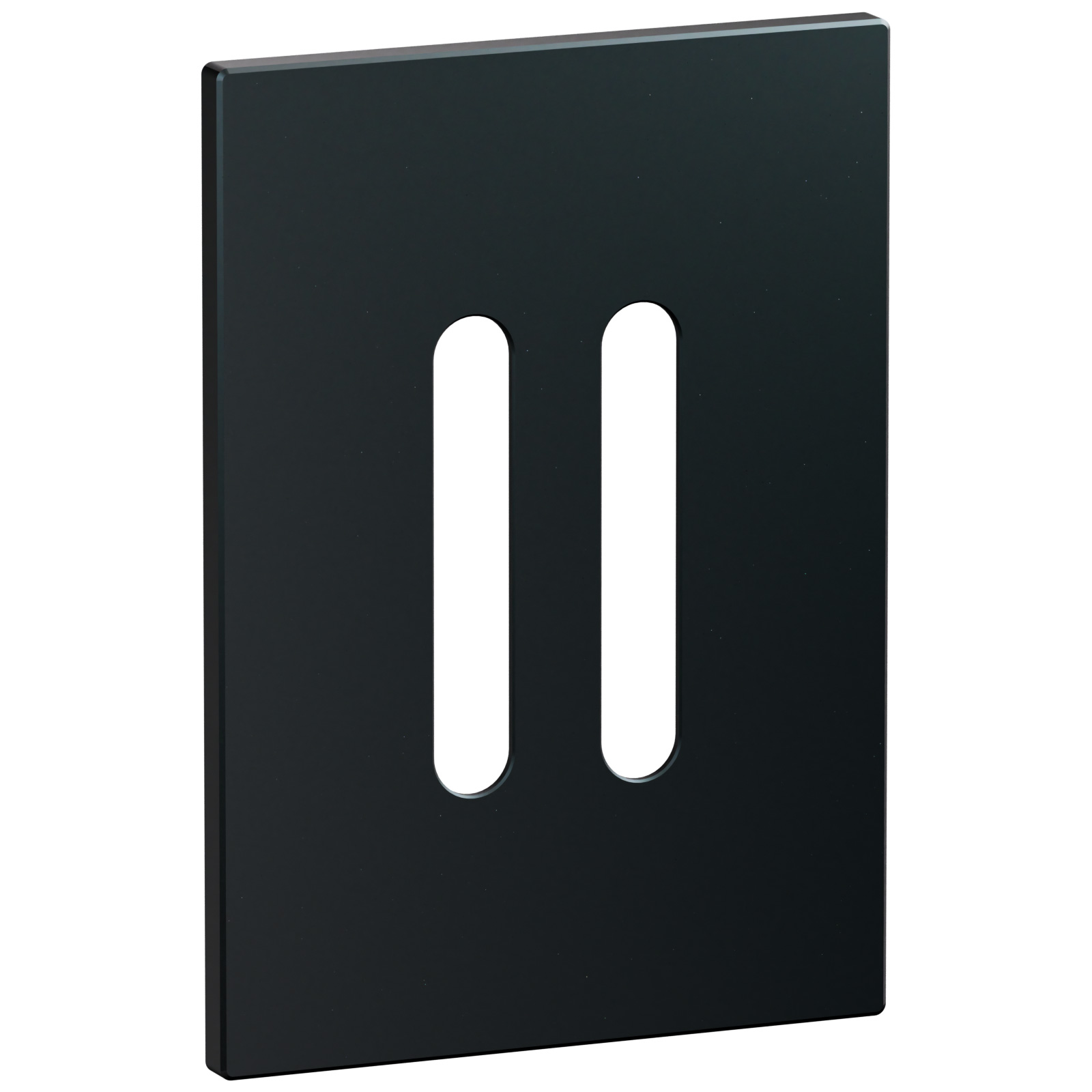

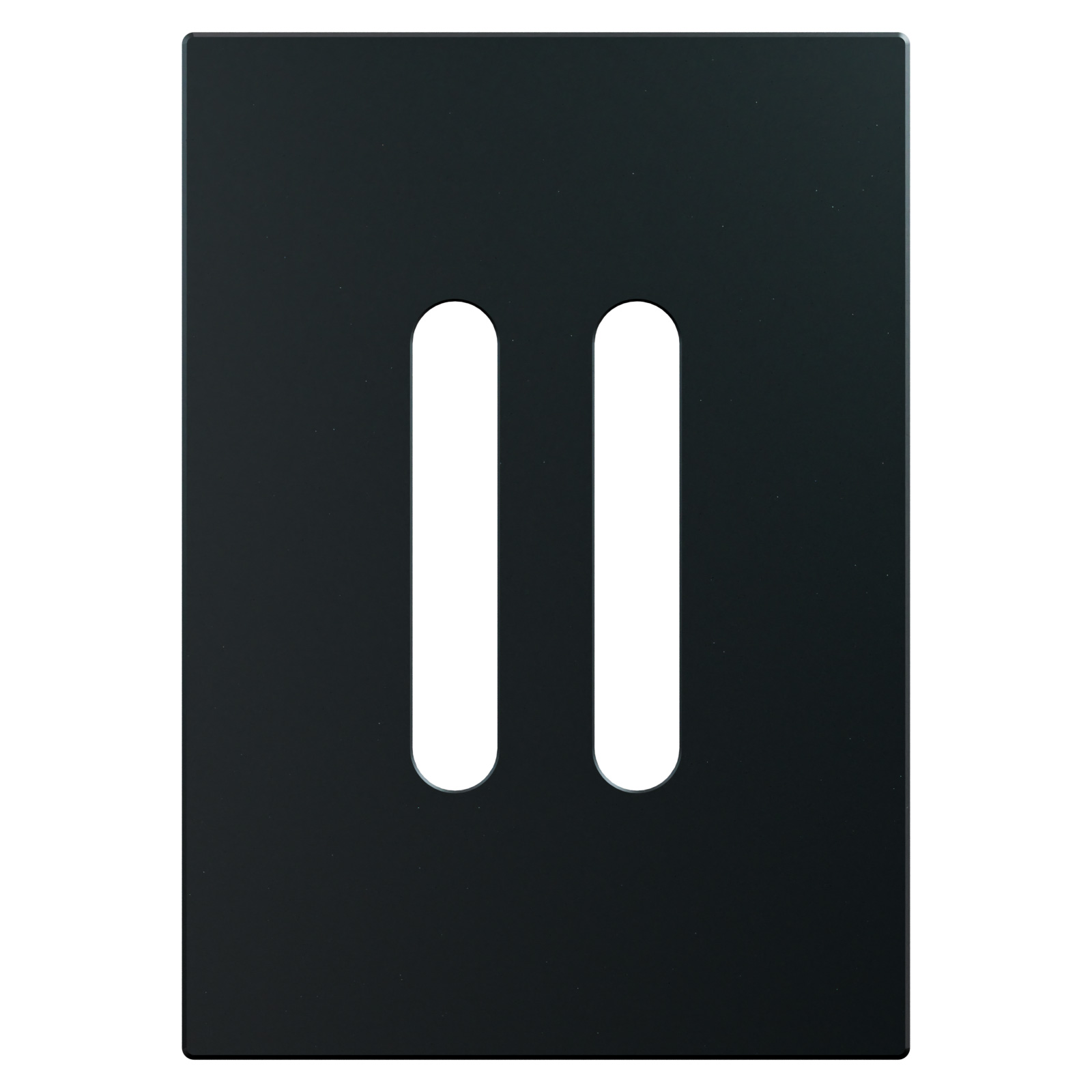

This 2x4 Italian/US vertical plate for 2x1 module slender switches combines real plain aluminum construction with a refined midnight blue matt lacquered finish.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 Italian/US vertical plate for 2x1 module slender switches combines real plain aluminum construction with a refined midnight blue matt lacquered finish.

Product characteristics
  • 2x4 Italian/US vertical cover plate for 2x1 module slender switches, optimized for Arteor Advance domestic installations
  • Midnight blue lacquered matte finish with dark blue pearlescent gleam for refined, contemporary aesthetics
  • Real plain aluminum metal plate, halogen free and lacquer-protected for enhanced durability against daily wear and sunlight exposure
  • Slender 8.5mm profile with engage (snap) fastening for a sleek, low‑projection appearance on flush-mounted and duct installations
  • IP20 indoor-rated, 90mmx127mm plate with label space, suitable for flush-mounted boxes, subfloor duct boxes, and wall ducts
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design

Technical characteristics

Number of units 2
Mounting direction Vertical
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 127 mm
Depth 8.5 mm
Built-in width 10.5 mm
Built-in height 60.5 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04887EN-00.pdf pdf (0.51 Mo)
