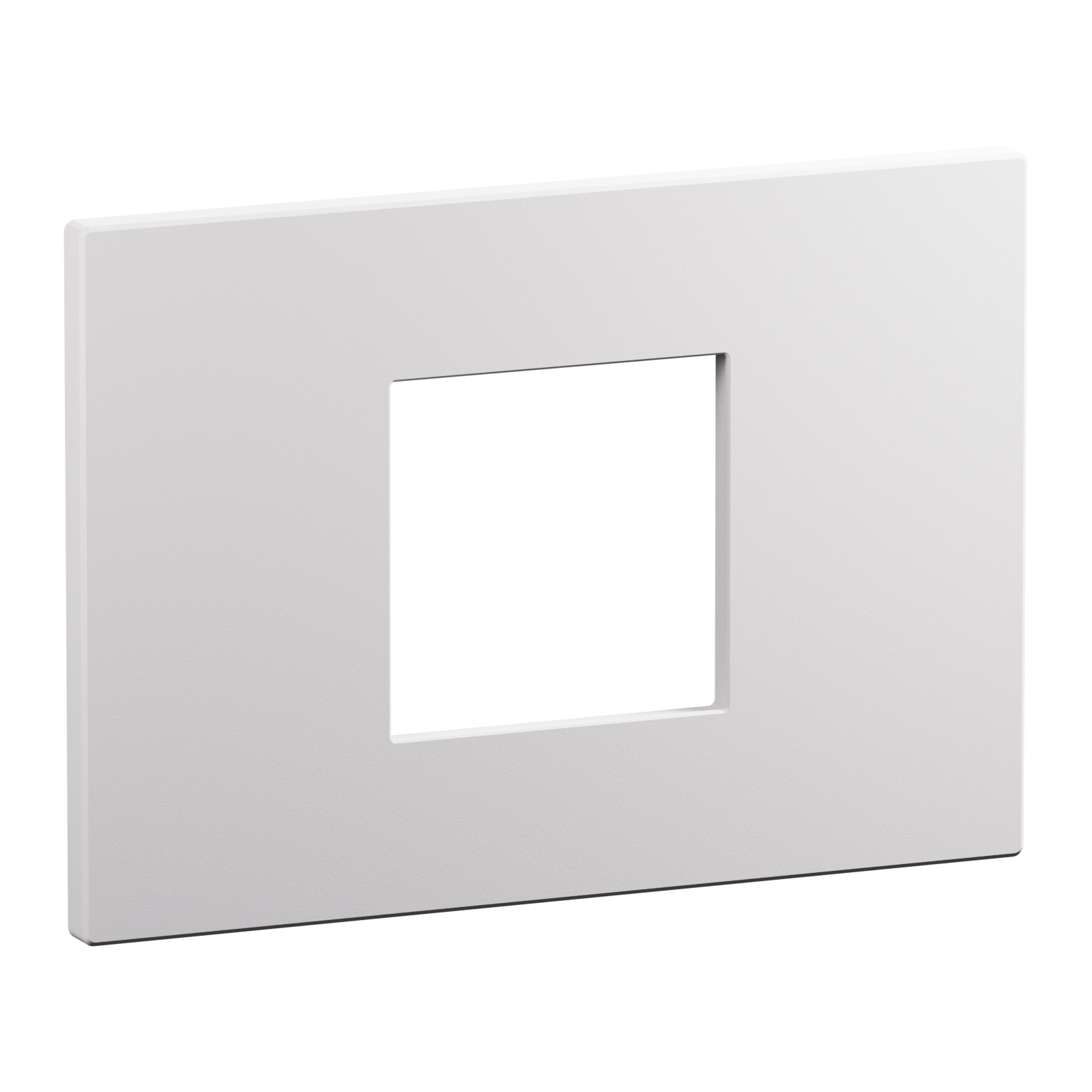

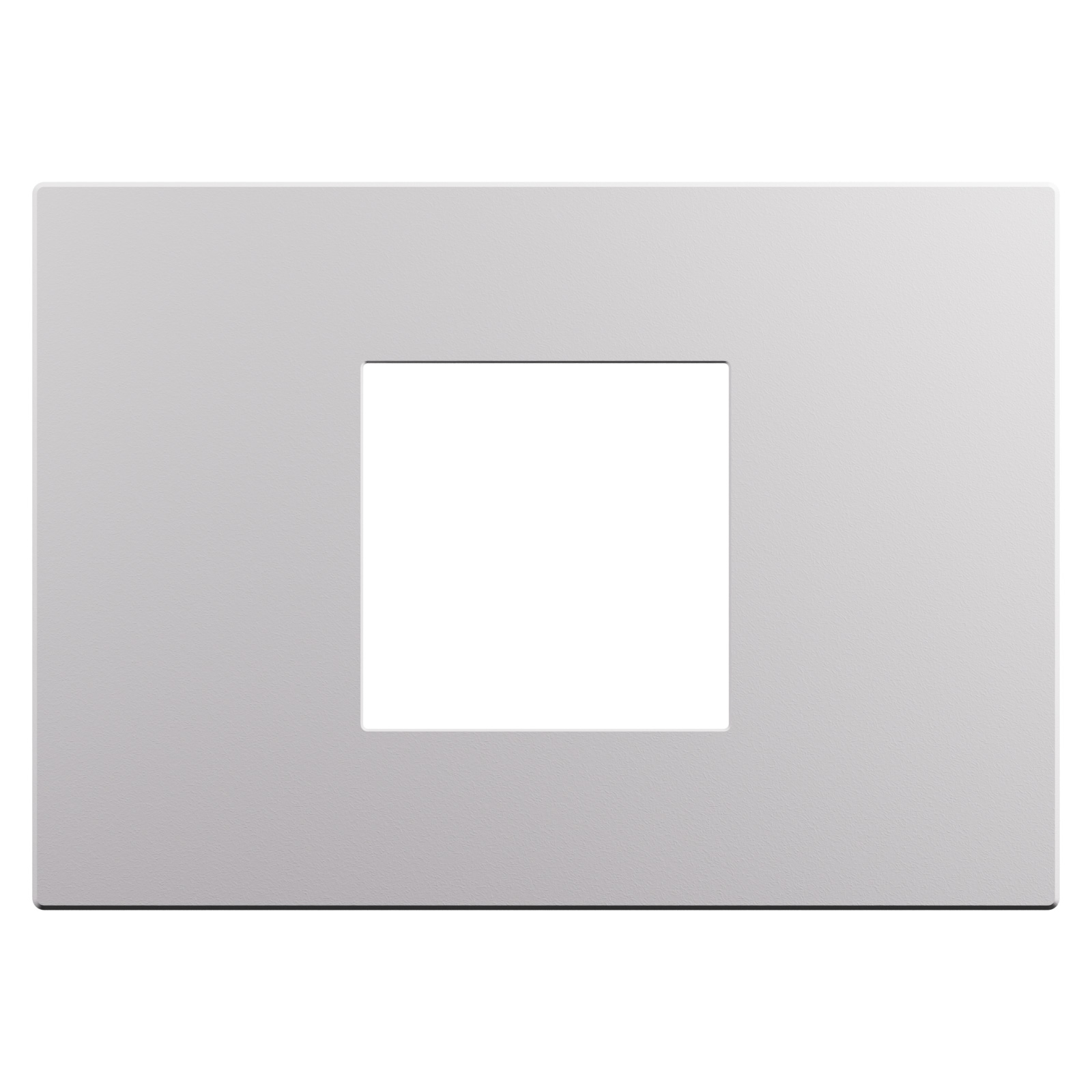

Arteor Advance - 2x4 Italian/US vertical plate for 2 modules switches matt white - Thermoplastic IP20 - Snap-on flush mounting

Arteor Advance Legrand

Arteor Advance - 2x4 Italian/US vertical plate for 2 modules switches matt white - Thermoplastic IP20 - Snap-on flush mounting

REF. AC1125MW EAN. 3414973070583
This 2x4 Italian/US vertical plate for 2 modules switches in matt white offers flush-mounted installation, IP20 protection and halogen-free thermoplastic construction.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 Italian/US vertical plate for 2 modules switches in matt white offers flush-mounted installation, IP20 protection and halogen-free thermoplastic construction.

Product characteristics
  • 2x4 Italian/US vertical cover frame for two switch modules, optimized for Arteor Advance domestic installations
  • Matt white finish (similar to RAL 9003) with smooth, powdery aspect for a minimalist, contemporary look
  • Plate made of halogen-free thermoplastic polycarbonate for enhanced mechanical strength and long-term aesthetic stability
  • Square 90-Drummm x127mm profile with 2 vertical modules (flush-mounted, IP20) enabling modular and flexible configuration
  • Snap-on fastening with integrated adjuster for precise wall alignment; suitable for flush-mounted boxes, subfloor ducts, and wall ducts for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Powdery white with a smooth matte aspect
  • Minimalist design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 2
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 127 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04885EN-00.pdf pdf (0.5 Mo)
