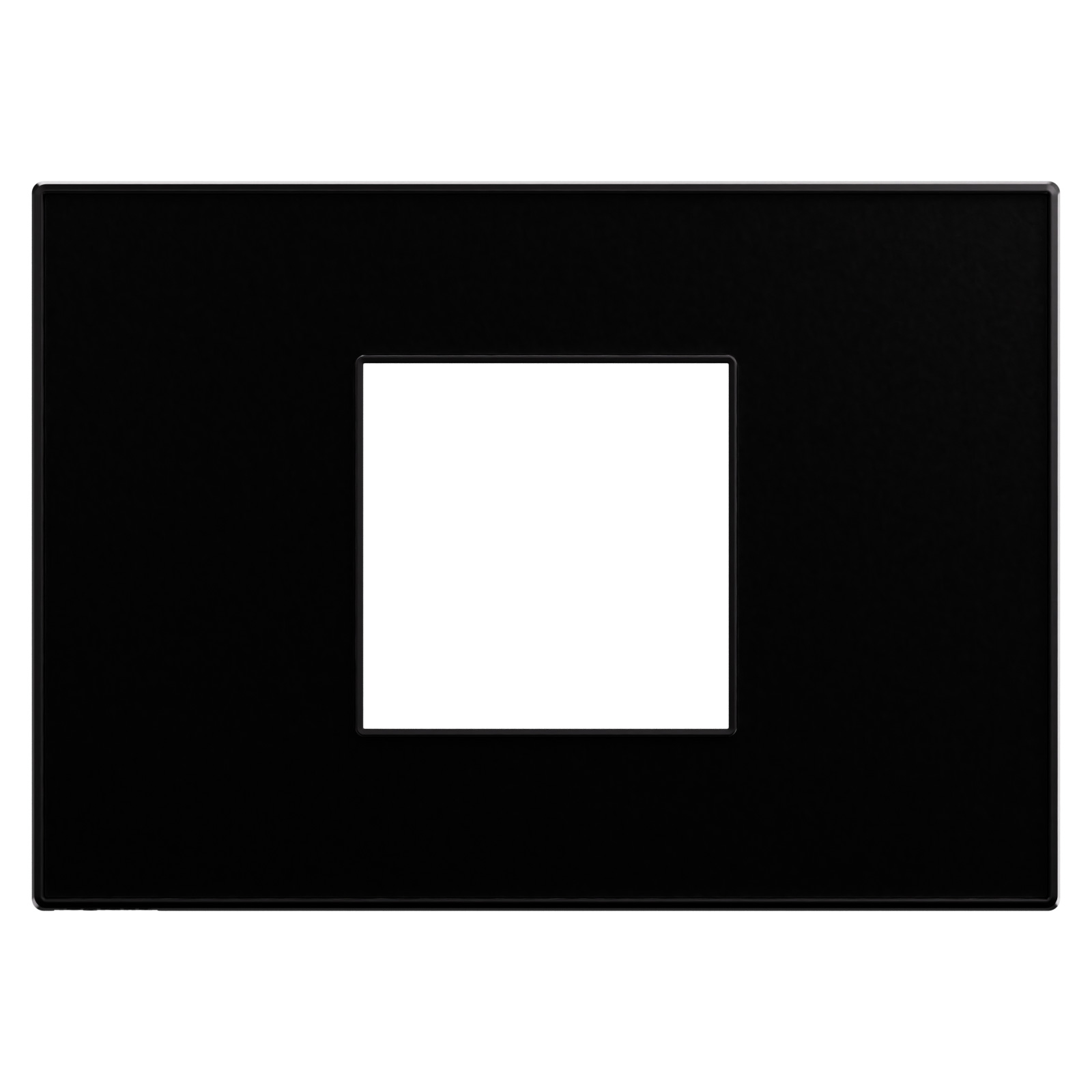

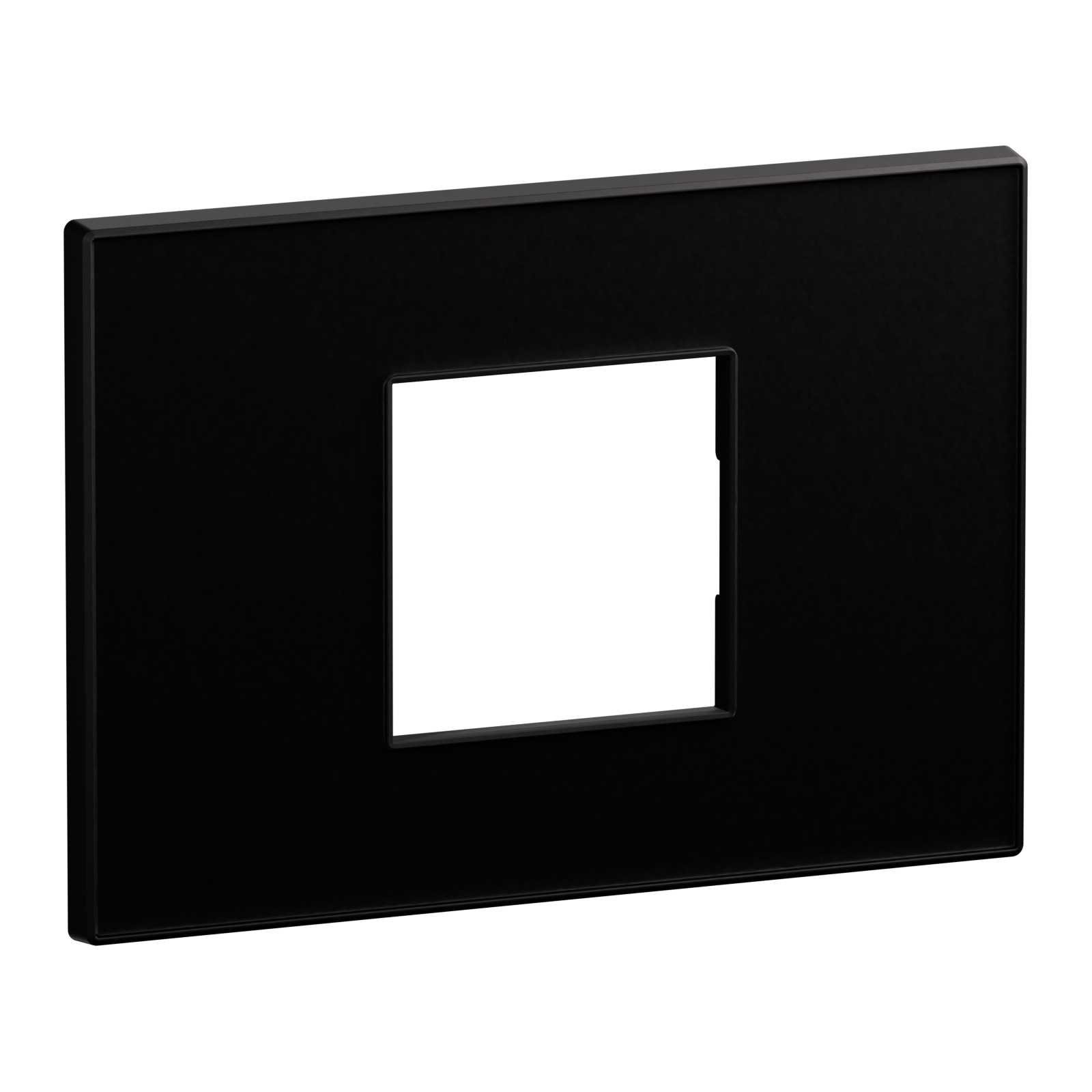

Arteor Advance - 2x4 Italian/US Vertical Plate for 2 modules Switches Frosted Black - Crystal Polycarbonate - Matt Black IP20

Arteor Advance Legrand

Arteor Advance - 2x4 Italian/US Vertical Plate for 2 modules Switches Frosted Black - Crystal Polycarbonate - Matt Black IP20

REF. AC1125FB EAN. 3414973070460
This 2x4 Italian/US vertical plate for 2 modules switches in frosted black features crystal polycarbonate construction, IP20 protection, and halogen-free thermoplastic.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 Italian/US vertical plate for 2 modules switches in frosted black features crystal polycarbonate construction, IP20 protection, and halogen-free thermoplastic.

Product characteristics
  • 2x4 Italian/US vertical cover frame for two switch modules, 2 units arranged 2 modules vertical for flush-mounted and duct box installations
  • Frosted black matte finish providing black opacity and long-term aesthetic stability against daily wear and indoor sunlight exposure
  • Crystal polycarbonate thermoplastic plate set in a cradle, halogen free, offering velvety touch and enhanced mechanical robustness
  • Square format plate enabling modularity and flexible configuration with engage (snap) fastening for precise alignment
  • Dimensions 127mm height, 90mm width, 8.5mm depth, IP20 degree of protection, with label space for circuit identification and no mounting grid
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Crystal PC, set in a cradle, providing both velvety touch and black opacity
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 1
Mounting direction Vertical
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 1
Number of modules vertical (module system) 2
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 90 mm
Height 127 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04886EN-00.pdf pdf (0.51 Mo)
