Arteor Advance - 2x4 Italian/US Horizontal Plate for Slender Rotary Dimmer - Solid Aluminum Matt Finish - Snap-On Flush Mount - IP20

Arteor Advance Legrand

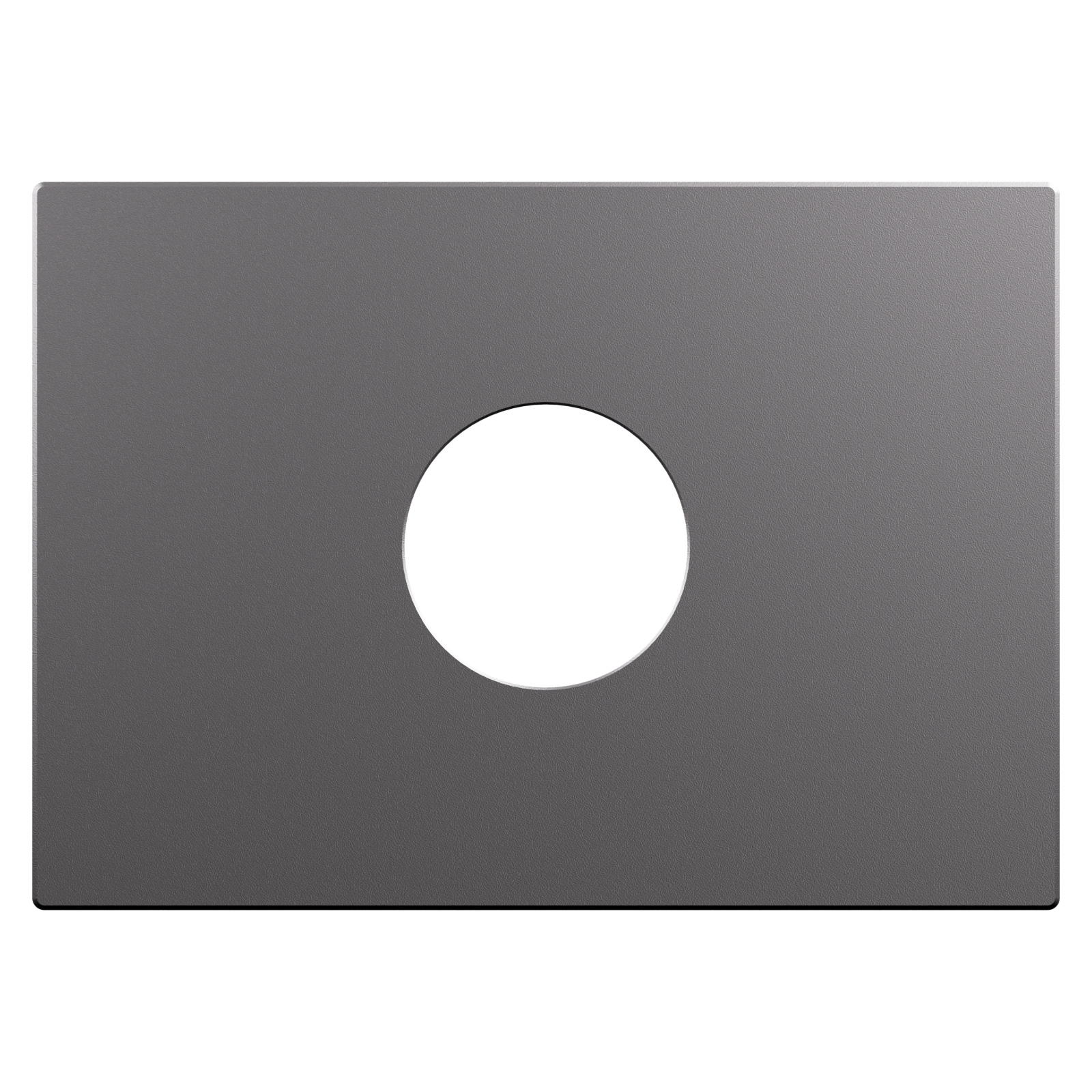

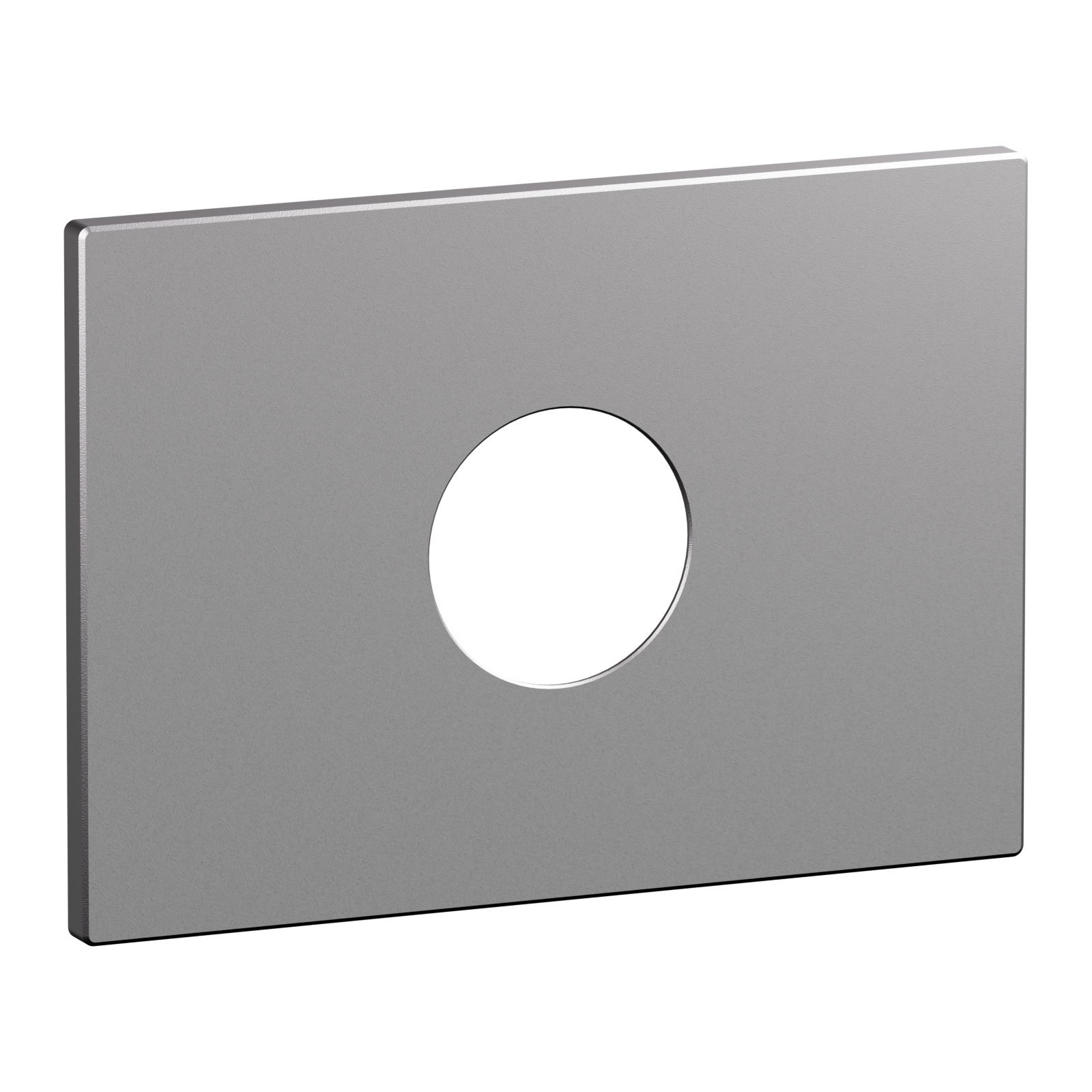

Arteor Advance - 2x4 Italian/US Horizontal Plate for Slender Rotary Dimmer - Solid Aluminum Matt Finish - Snap-On Flush Mount - IP20

REF. AA1132SA EAN. 3414973067545
This 2x4 Italian/US horizontal plate for slender rotary dimmers features solid matt lacquered aluminum and 127x90x8.5mm profile for flush-mounted installation. Snap fastening and IP20 rating ensure reliable integration.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 Italian/US horizontal plate for slender rotary dimmers features solid matt lacquered aluminum and 127x90x8.5mm profile for flush-mounted installation. Snap fastening and IP20 rating ensure reliable integration.

Product characteristics
  • Solid aluminum cover frame engineered for 2x4 Italian/US horizontal mounting of slender rotary dimmers
  • Constructed from real plain aluminum with lacquered, matt surface for enhanced durability and muted reflection
  • Slender 8.5mm profile optimizes wall integration while maintaining a refined, minimalist design
  • Flush-mounted, snap-engage installation compatible with wall duct and subfloor installation duct boxes for domestic switching devices
  • IP20, halogen-free metal plate with 127mm width, 35mm bore opening, and label space, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Aluminum with muted reflection and cool sensation of metal
  • Refined design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Diameter bore hole (opening) 35 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04790EN-00.pdf pdf (0.5 Mo)
