Arteor Advance - 2x4 Italian/US Horizontal Plate for Slender Rotary Dimmer Matt White - Matt thermoplastic cover frame IP20

Arteor Advance Legrand

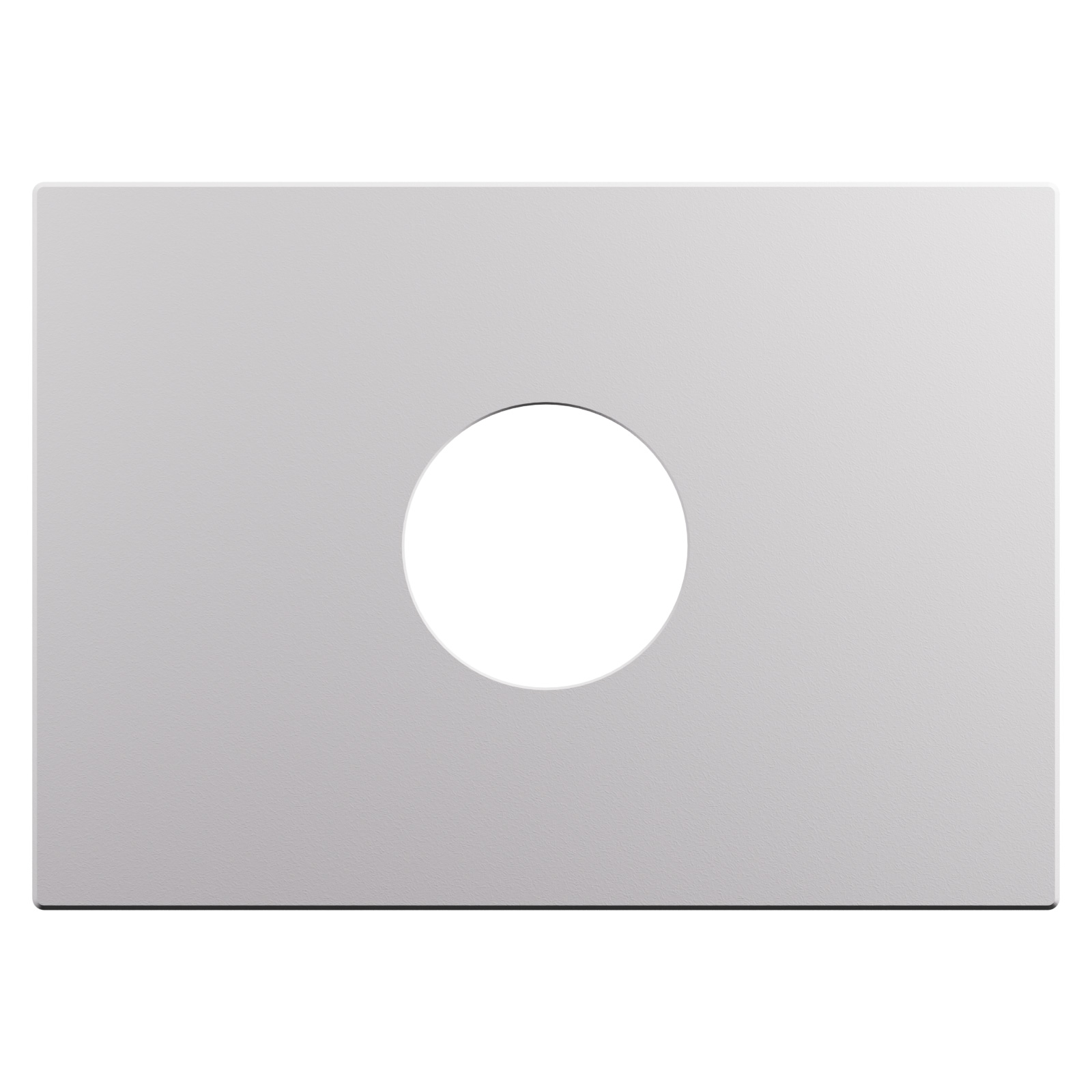

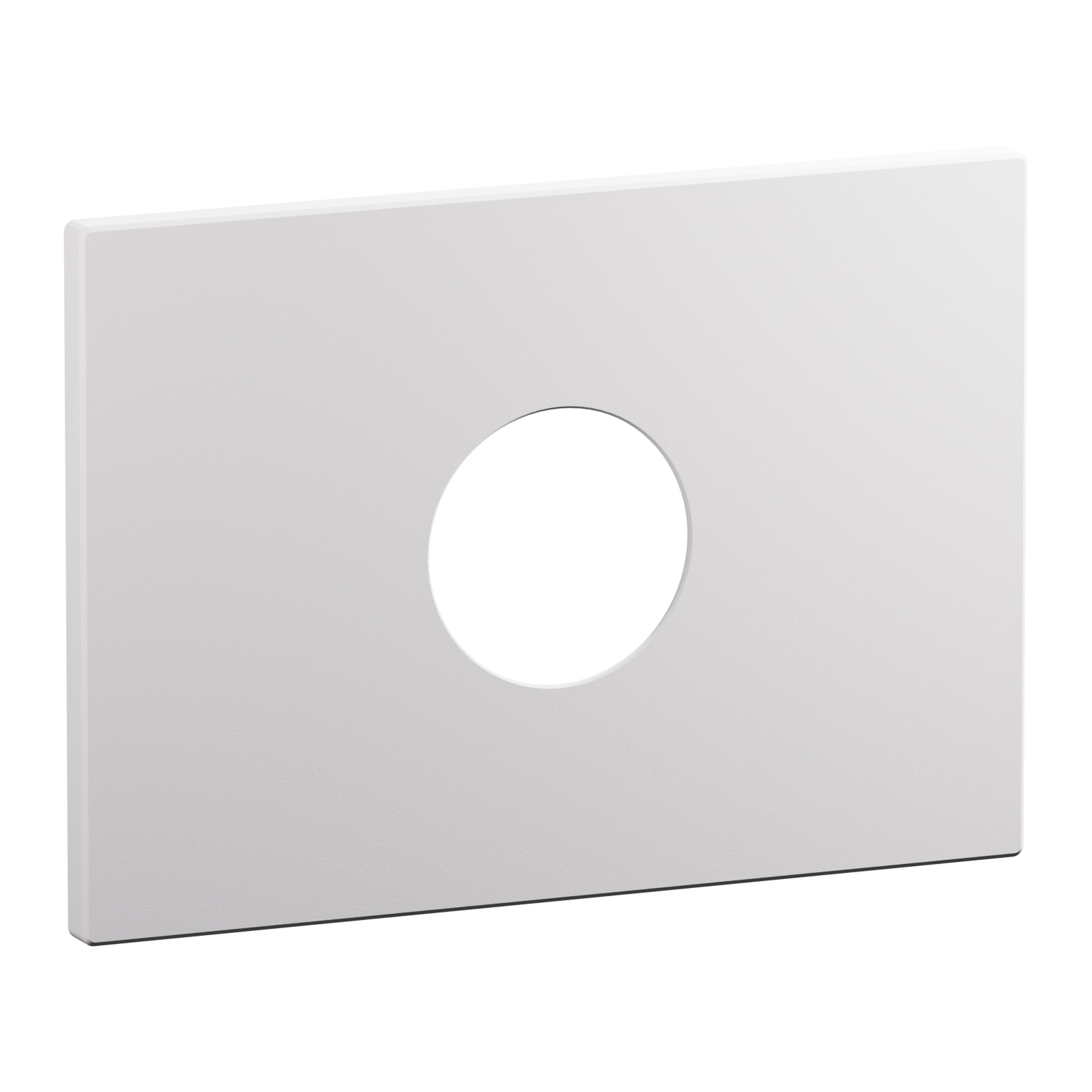

Arteor Advance - 2x4 Italian/US Horizontal Plate for Slender Rotary Dimmer Matt White - Matt thermoplastic cover frame IP20

REF. AA1132MW EAN. 3414973067484
This 2x4 Italian/US horizontal plate for slender rotary dimmer in matt white offers flush-mounted integration and minimalist design. Its thermoplastic, halogen-free construction with IP20 rating ensures safe indoor use. Dimensions:127x90x8
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 Italian/US horizontal plate for slender rotary dimmer in matt white offers flush-mounted integration and minimalist design. Its thermoplastic, halogen-free construction with IP20 rating ensures safe indoor use. Dimensions:127x90x8

Product characteristics
  • Matt white finish (RAL 9003) with powdery, smooth aspect for long-term aesthetic stability against daily wear and indoor UV exposure
  • Matt white color and untreated matt surface finishing provide a low-glare, contemporary appearance suited to modern interiors
  • Plate made of thermoplastic polycarbonate, halogen free, ensuring high mechanical strength and improved fire behavior for professional installations
  • Slender, minimalist 2x4 Italian/US horizontal plate design optimized for the Slender rotary dimmer, contributing to a discreet, space-saving wall profile
  • Flush-mounted IP20 cover frame, 127x90x8.5mm, snap-on fastening, suitable for wall duct and subfloor duct box, with 35mm bore opening and label space
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Powdery white with a smooth matte aspect
  • Minimalist design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Diameter bore hole (opening) 35 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04501EN-00.pdf pdf (0.5 Mo)
