Arteor Advance - 2x4 Italian/US horizontal plate for slender rotary dimmer frosted black - Crystal polycarbonate matt IP20 indoor

Arteor Advance Legrand

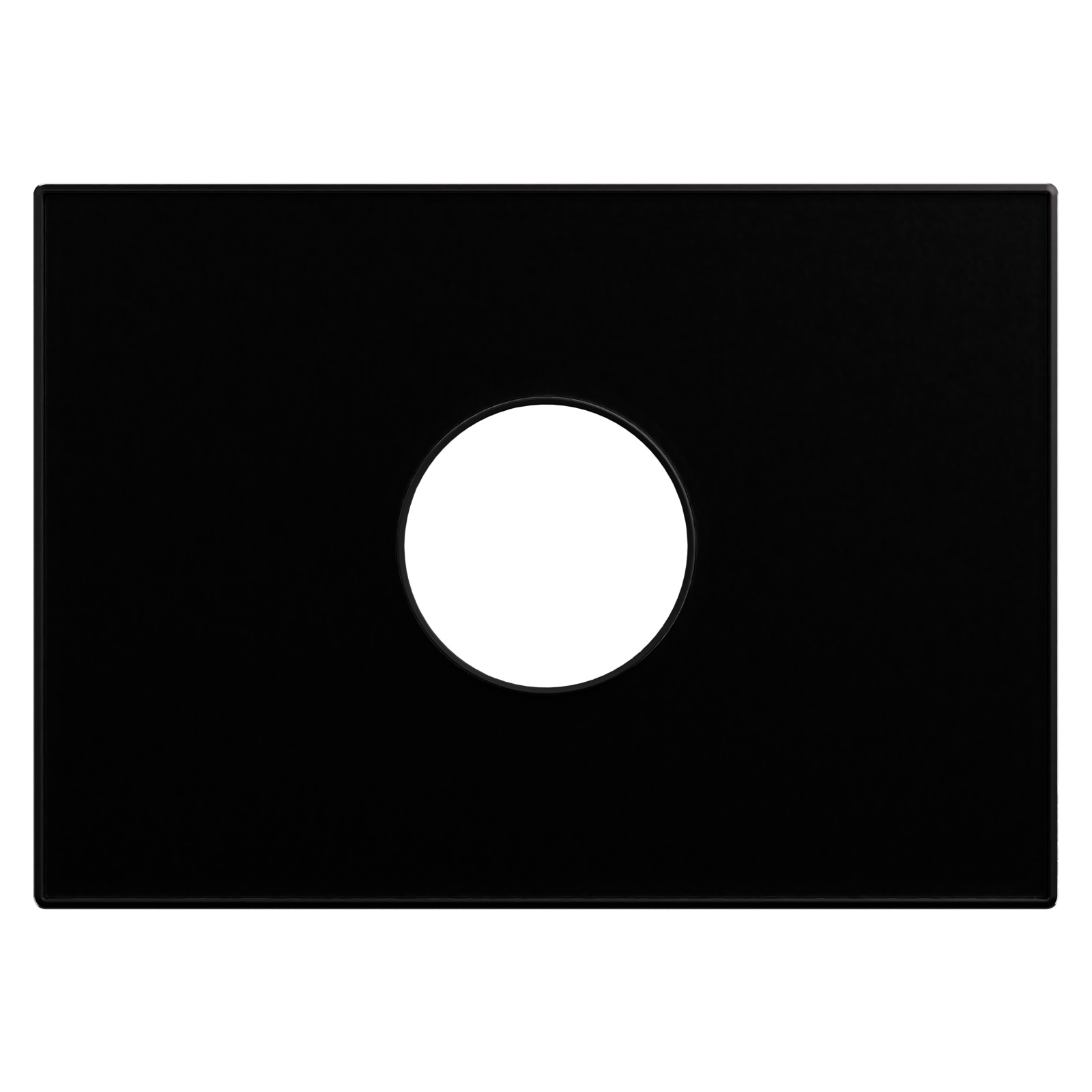

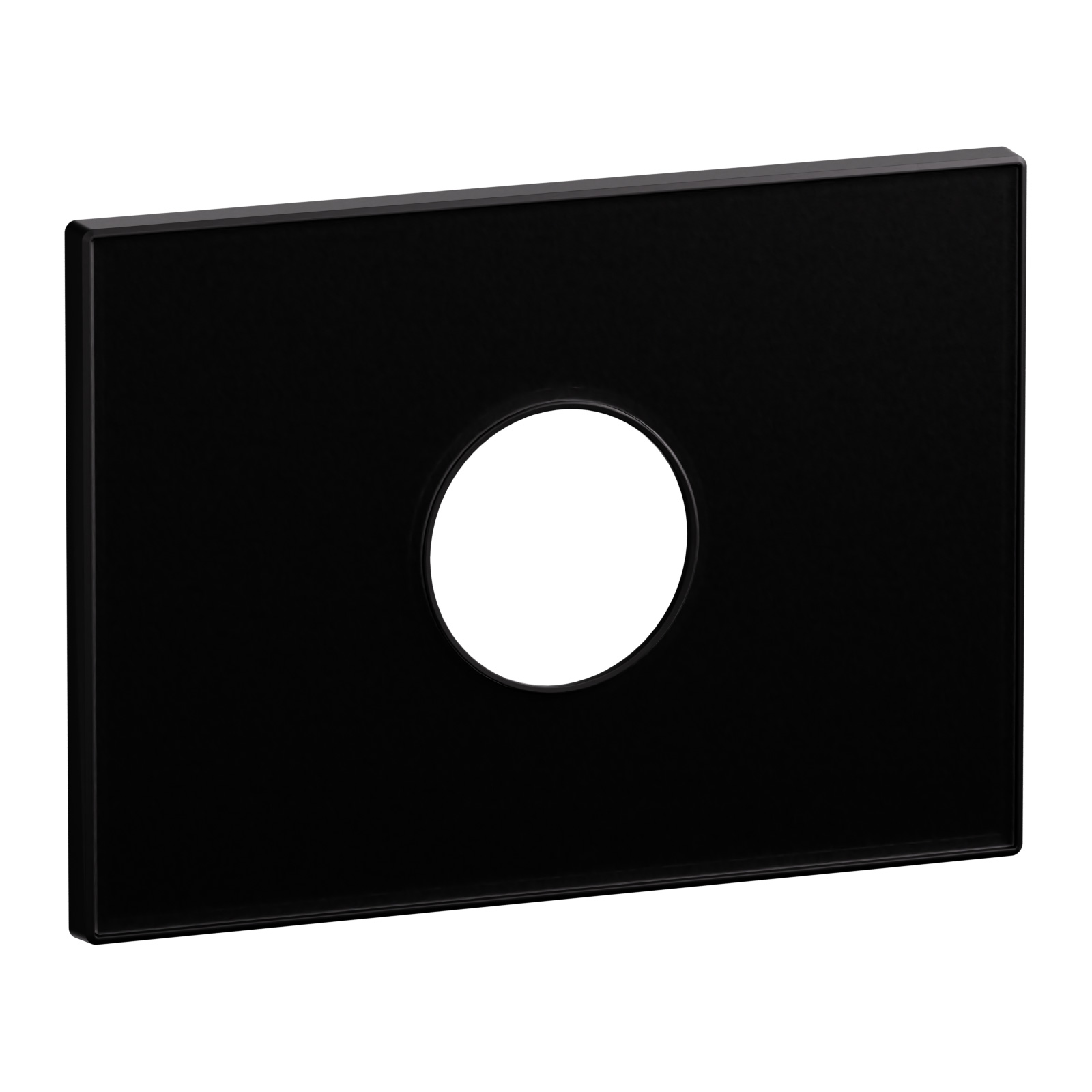

Arteor Advance - 2x4 Italian/US horizontal plate for slender rotary dimmer frosted black - Crystal polycarbonate matt IP20 indoor

REF. AA1132FB EAN. 3414973067361
This 2x4 Italian/US horizontal plate for slender rotary dimmer in frosted black features crystal polycarbonate construction for high durability and black opacity. Its matt finish and refined design ensure long-term aesthetics.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x4 Italian/US horizontal plate for slender rotary dimmer in frosted black features crystal polycarbonate construction for high durability and black opacity. Its matt finish and refined design ensure long-term aesthetics.

Product characteristics
  • Frosted black 2x4 Italian/US horizontal plate specifically designed for Slender rotary dimmer applications
  • Crystal polycarbonate plate construction delivers high mechanical strength with long-term aesthetic stability against daily wear and sunlight exposure
  • Slim, slender profile with 8.5mm depth supports refined, space-saving wall integration in Arteor Advance installations
  • Matt black, non-transparent thermoplastic, halogen-free material with IP20 rating for indoor flush-mounted and duct box installations
  • Snap-on fastening with 127mm width, 90mm height and 35mm bore hole diameter, providing precise fit for 2 modules horizontal domestic switching devices
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Crystal PC, set in a cradle, providing both velvety touch and black opacity
  • Refined design

Technical characteristics

Number of units 1
Mounting direction Horizontal
Number of units horizontal 1
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 127 mm
Height 90 mm
Depth 8.5 mm
Diameter bore hole (opening) 35 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04502EN-00.pdf pdf (0.5 Mo)
