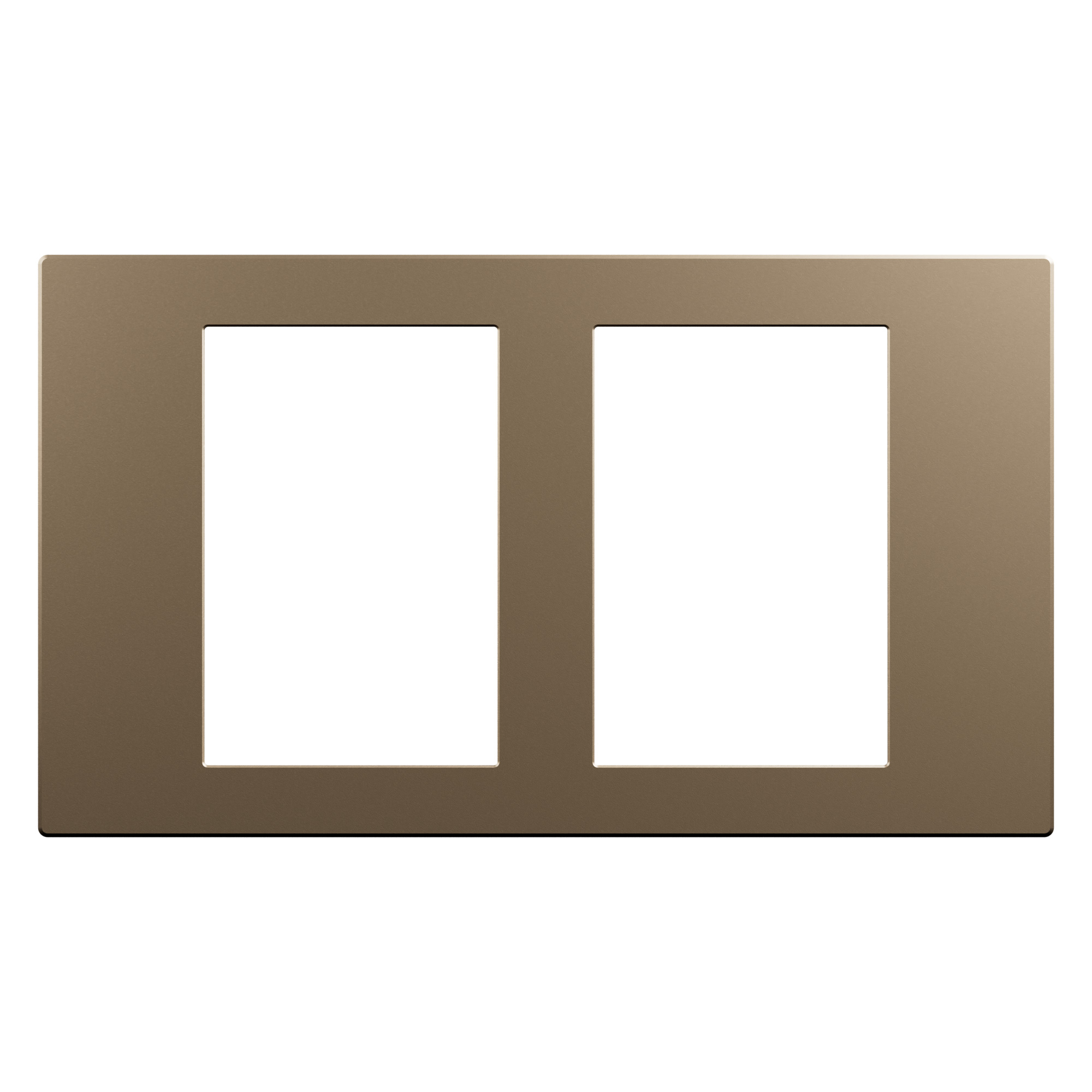

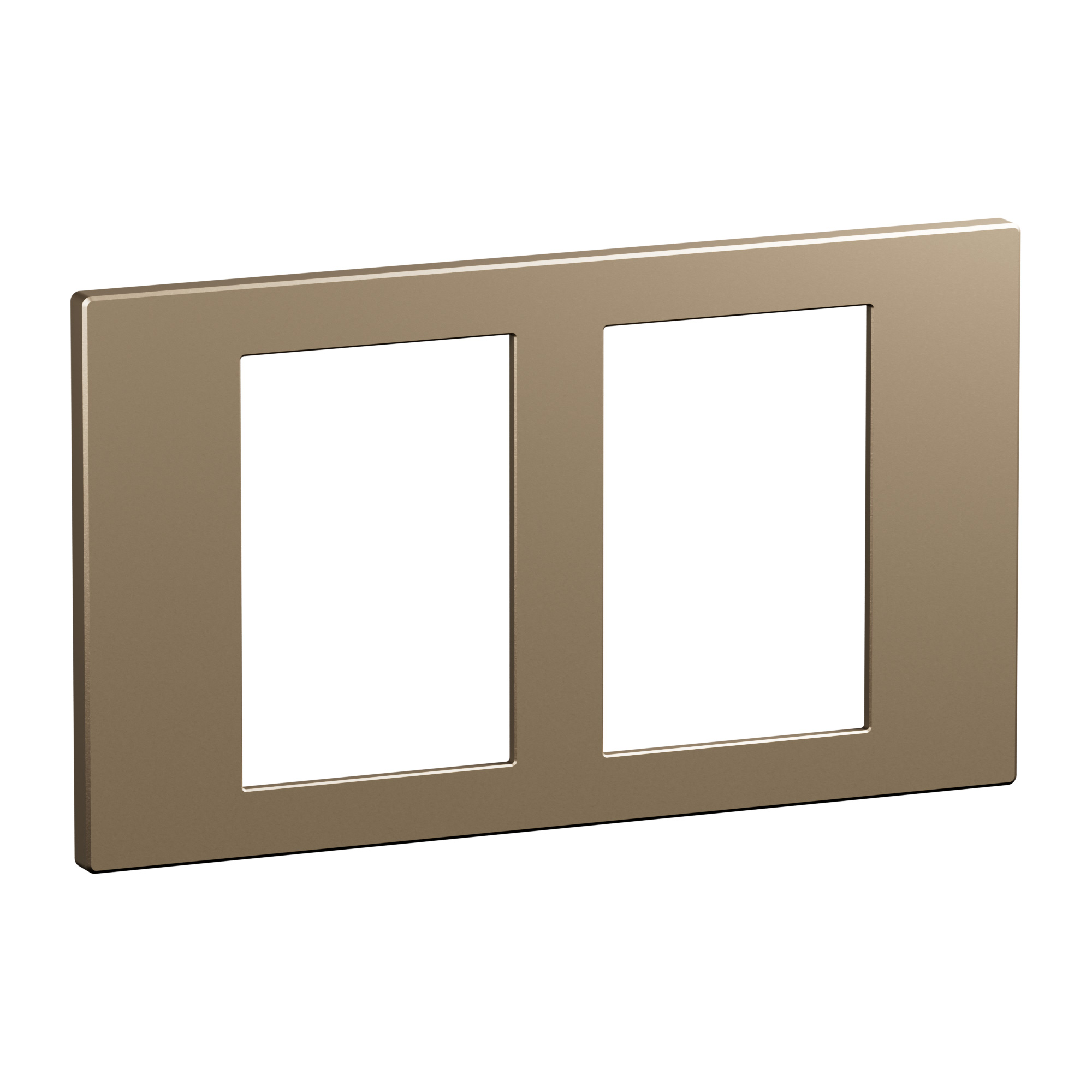

Arteor Advance - 2x3 modules British Standard plate for IoT socket solid sand - Matt lacquered aluminum, snap-on flush-mounted design

Arteor Advance Legrand

Arteor Advance - 2x3 modules British Standard plate for IoT socket solid sand - Matt lacquered aluminum, snap-on flush-mounted design

REF. AC1112SD EAN. 3414972977098
This 2x3 modules British Standard plate for IoT socket in solid sand offers robust metal construction with lacquered matt finish. Its halogen-free aluminum body and snap fastening ensure reliable, flush-mounted installation.
Download product sheet
Finition :
Number of units horizontal :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x3 modules British Standard plate for IoT socket in solid sand offers robust metal construction with lacquered matt finish. Its halogen-free aluminum body and snap fastening ensure reliable, flush-mounted installation.

Product characteristics
  • 2x3 modules British Standard plate providing a compact 2-horizontalx3-vertical module configuration for IoT sockets
  • Solid sand sandy-gold finish in beige tone delivering a mineral, metallic aesthetic aligned with Arteor Advance
  • Plate made of lacquered aluminum, halogen free, with matt surface for enhanced durability and professional finish
  • Square minimalist design enabling modularity and flexibility in a compact configuration for domestic switching devices
  • Flush-mounted horizontal cover frame (157x90x8.5mm) with snap fastening, optimized for indoor wall installation within -5° C to 35° C operating range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Sandy gold finish reminiscent of natural mineral elegance with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Beige
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04884EN-00.pdf pdf (0.46 Mo)
