Arteor Advance - 2x3 modules British Standard plate for IoT socket rose - Pink matt thermoplastic flush-mounted plate

Arteor Advance Legrand

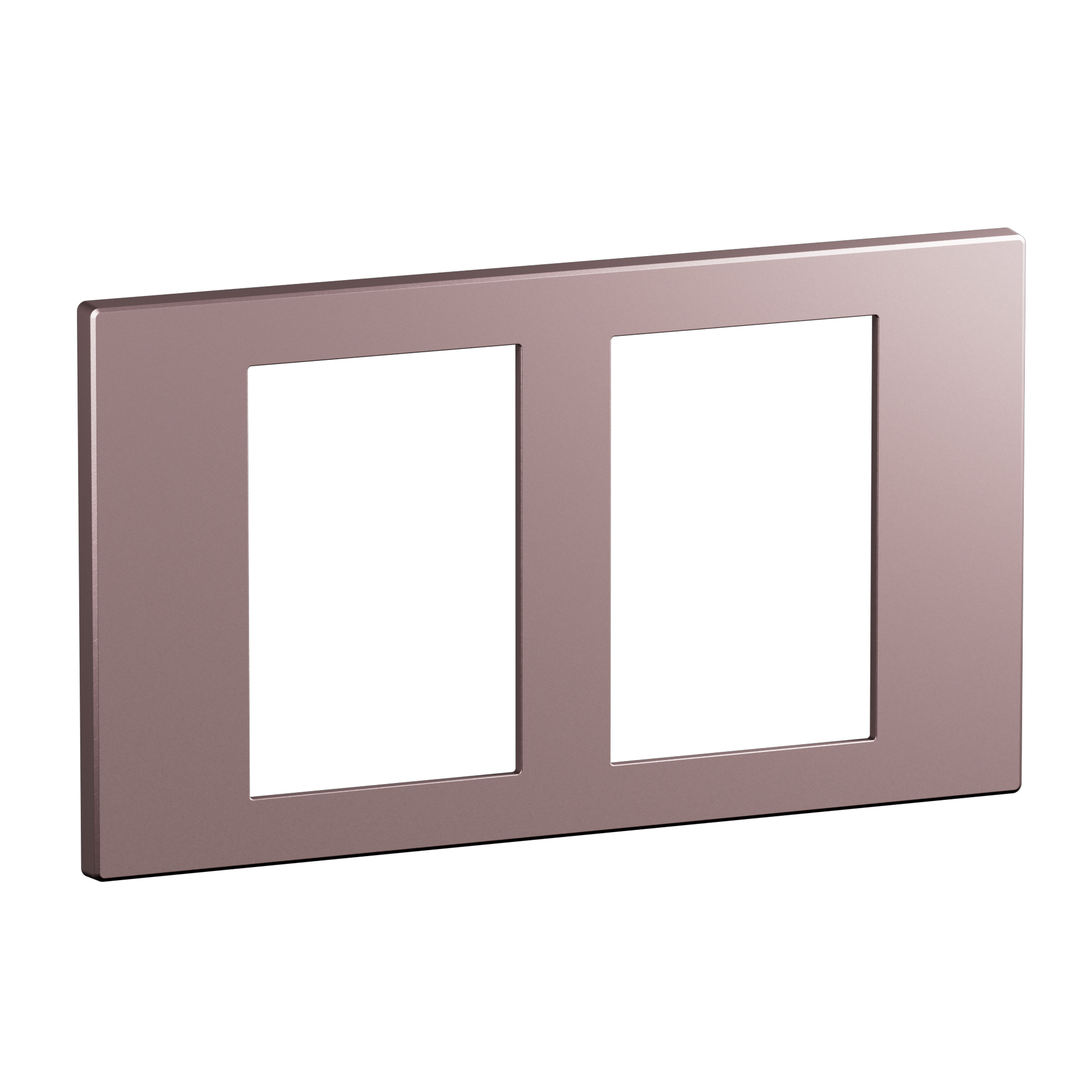

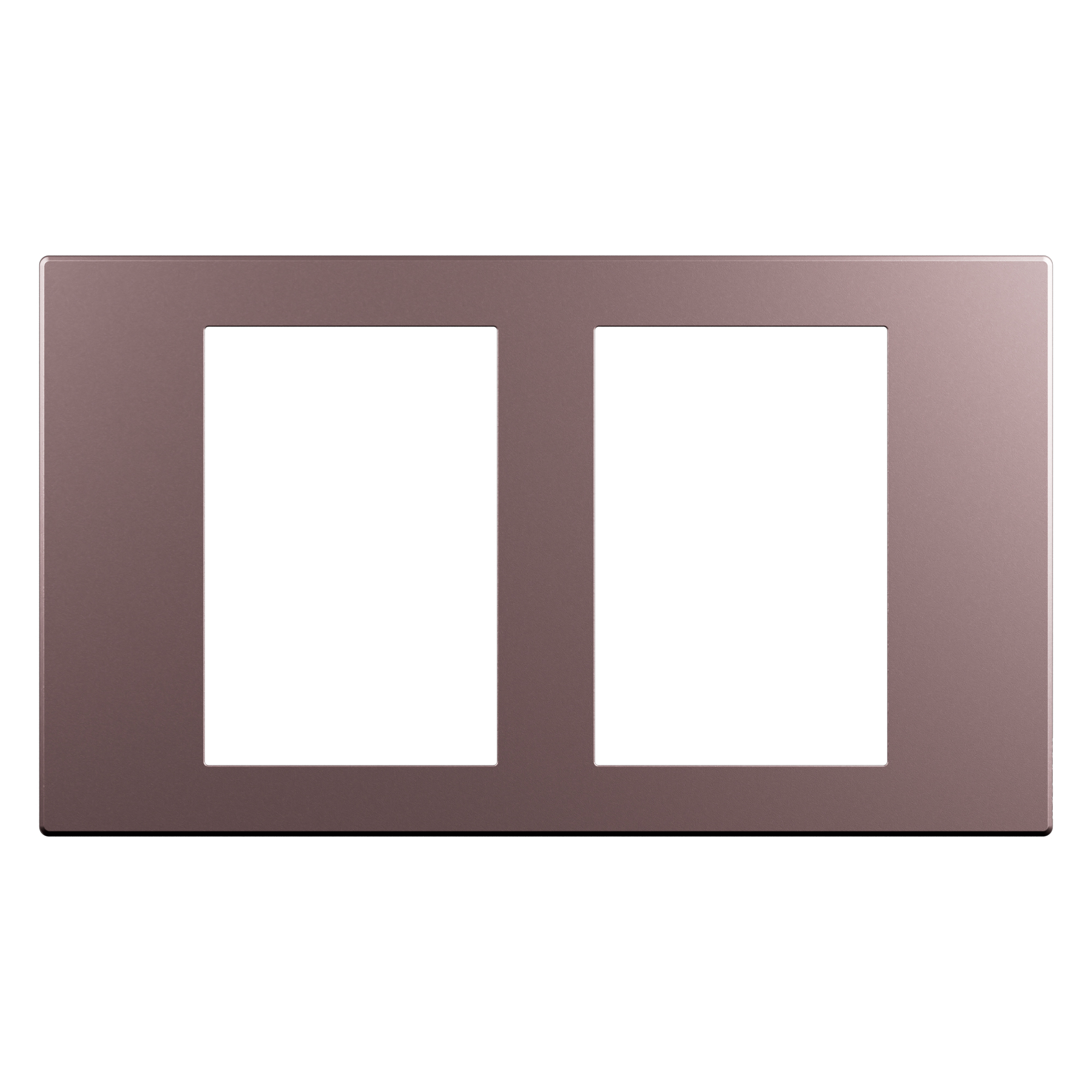

Arteor Advance - 2x3 modules British Standard plate for IoT socket rose - Pink matt thermoplastic flush-mounted plate

REF. AC1112RS EAN. 3414972921800
This 2x3 modules British Standard plate for IoT socket rose offers precise horizontal flush mounting and compact 157x90x8.5mm dimensions. Its halogen-free thermoplastic construction with matt lacquered pink finish delivers durability
Download product sheet
Finition :
Number of units horizontal :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x3 modules British Standard plate for IoT socket rose offers precise horizontal flush mounting and compact 157x90x8.5mm dimensions. Its halogen-free thermoplastic construction with matt lacquered pink finish delivers durability

Product characteristics
  • 2x3 modules British Standard plate for IoT socket configurations, providing a compact 2-gang horizontalx3 modules vertical layout for modular wiring accessories
  • Rose (pink) finish with a subtle blush effect, aligned with the Arteor Advance aesthetic for distinctive visual differentiation in premium interiors
  • Plate manufactured from halogen-free thermoplastic polycarbonate, lacquered matt surface for enhanced durability and easy cleaning in residential and commercial environments
  • Square, minimalist design enabling modularity and flexibility in a compact configuration, optimized for flush-mounted horizontal installation (157x90x8.5mm)
  • Snap-on fastening cover frame for domestic switching devices, with internal adjuster to ensure precise wall alignment; recommended for indoor use within -5 to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Pink finish evoking subtle blush effect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Pink
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04882EN-00.pdf pdf (0.46 Mo)
