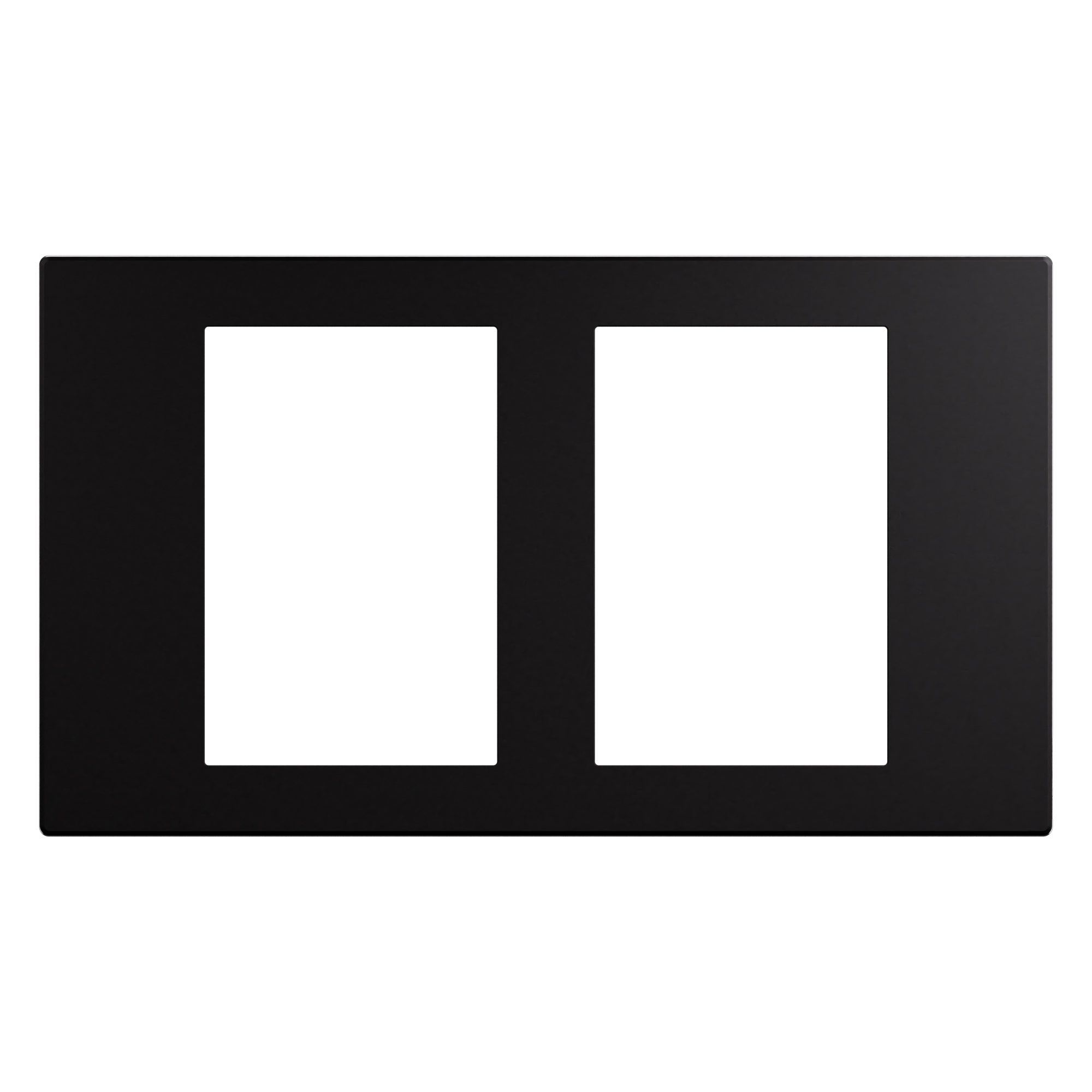

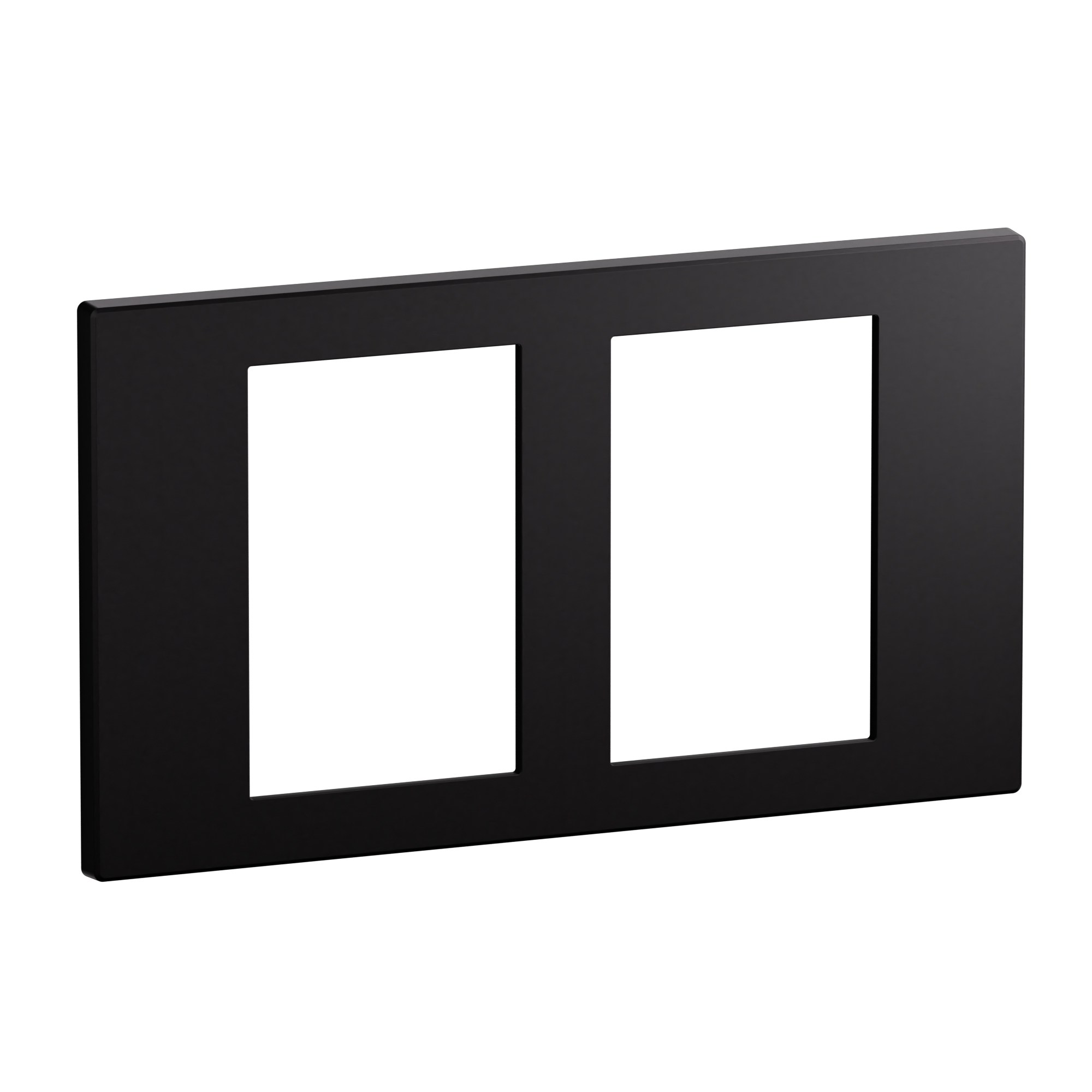

Arteor Advance - 2x3 Modules British Standard Plate for IoT Socket Matt Black - 2x3 modular BS cover frame - Matt black thermoplastic

Arteor Advance Legrand

Arteor Advance - 2x3 Modules British Standard Plate for IoT Socket Matt Black - 2x3 modular BS cover frame - Matt black thermoplastic

REF. AC1112MB EAN. 3414972736817
This 2x3 modules British Standard plate for IoT socket in matt black offers deep black, smooth matt thermoplastic construction and minimalist square design. Its snap fastening and 157x90x8mm dimensions ensure precise flush mounting.
Download product sheet
Finition :
Number of units horizontal :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x3 modules British Standard plate for IoT socket in matt black offers deep black, smooth matt thermoplastic construction and minimalist square design. Its snap fastening and 157x90x8mm dimensions ensure precise flush mounting.

Product characteristics
  • 2x3 modules British Standard plate providing a compact 2-gang horizontal x 3 modules vertical configuration for IoT sockets
  • Deep matt black finish for a minimalist, contemporary aesthetic that coordinates with modern electrical installations
  • Plate manufactured from thermoplastic polycarbonate for high mechanical strength, durability, and dimensional stability
  • Square geometry enabling modularity and flexibility in a compact cover frame layout for domestic switching devices
  • Flush-mounted, snap-on plastic frame (157x90x8mm) designed for indoor use within -5° C to 35° C operating temperature range
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Deep black with a smooth matt aspect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 2
Number of modules vertical (module system) 3
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Black
Transparent No
With hinged lid No
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04882EN-00.pdf pdf (0.46 Mo)
