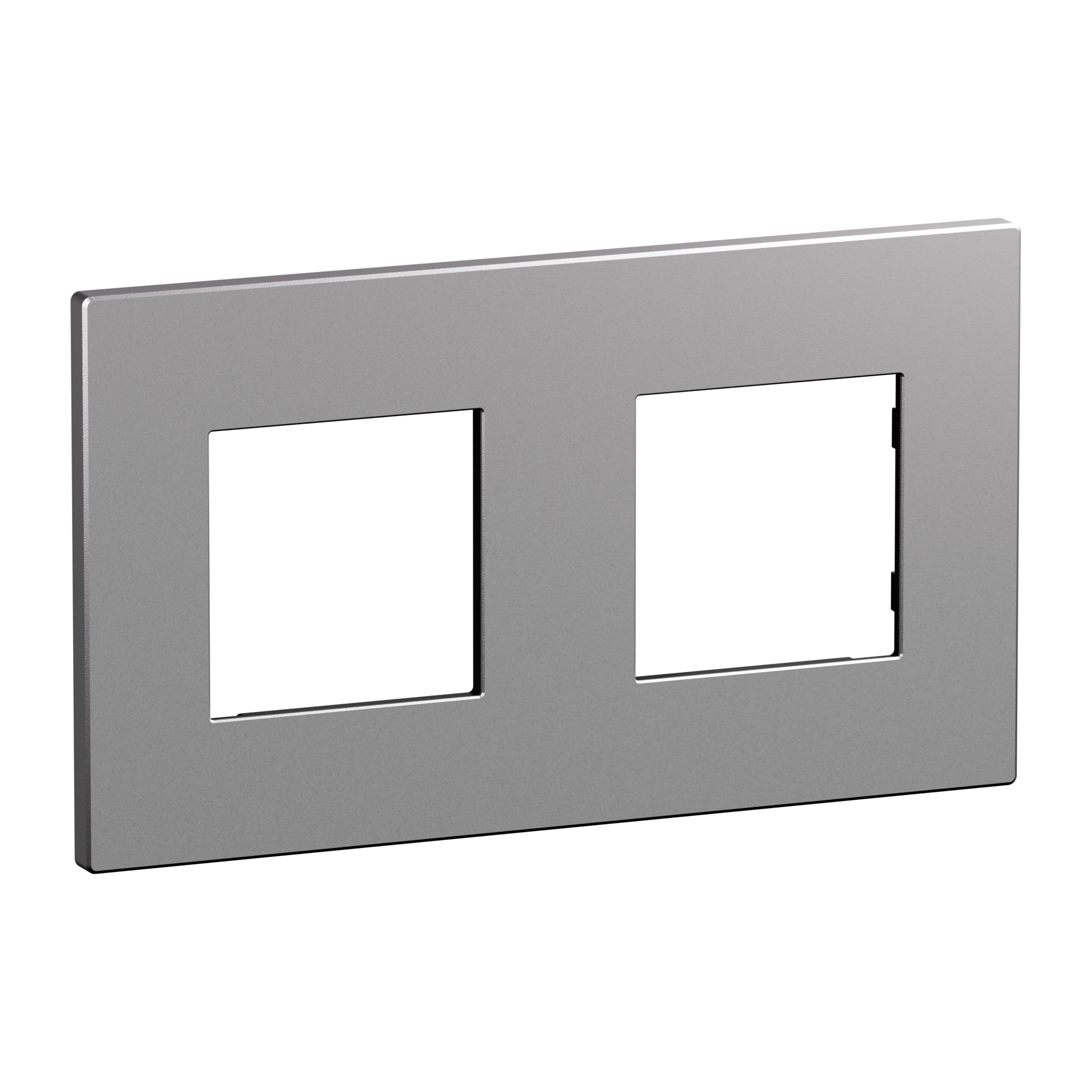

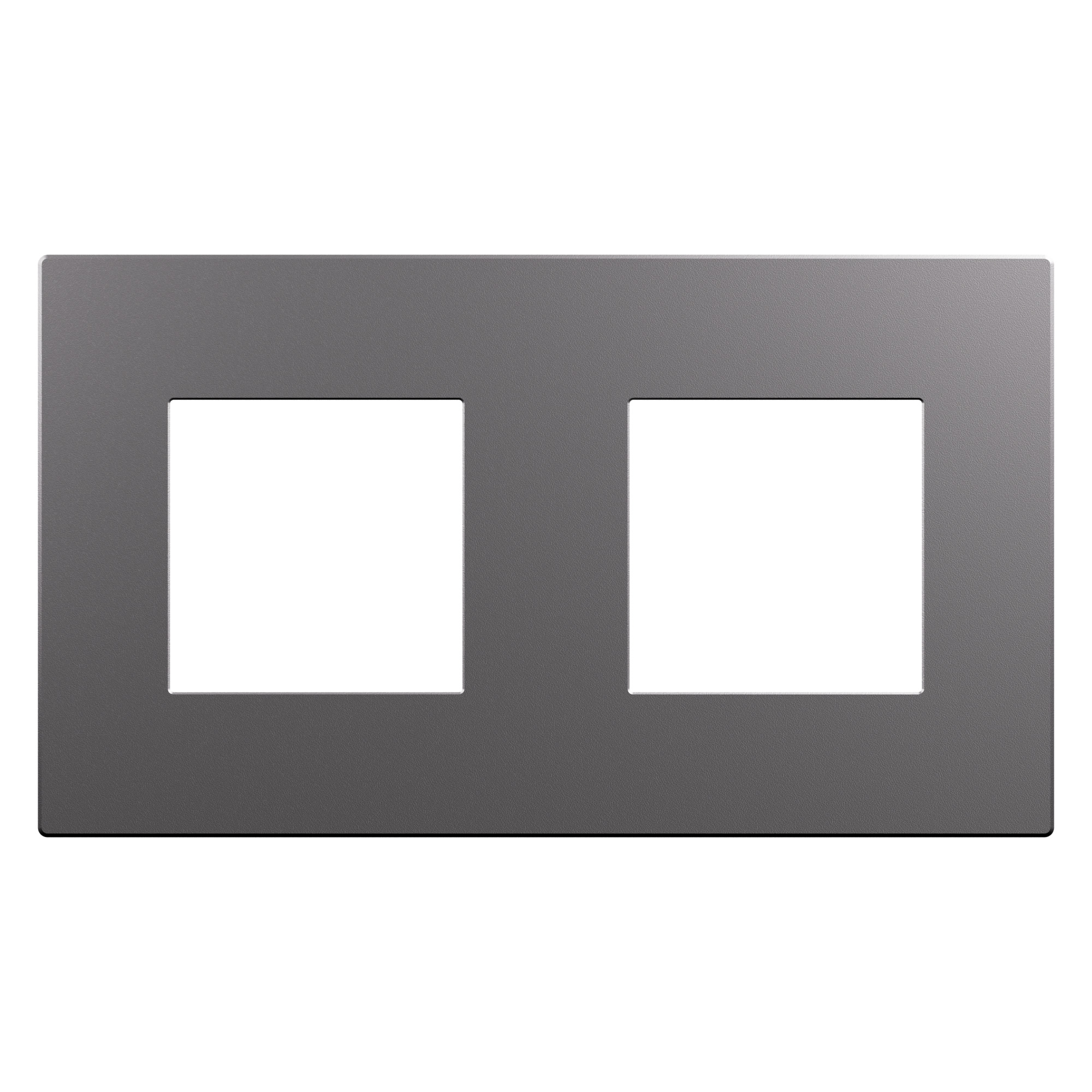

Arteor Advance - 2x2 modules French/Schuko plate solid aluminum - Horizontal 4 modules cover frame - Matt aluminum - Flush-mounted IP20

Arteor Advance Legrand

Arteor Advance - 2x2 modules French/Schuko plate solid aluminum - Horizontal 4 modules cover frame - Matt aluminum - Flush-mounted IP20

REF. AC1133SA EAN. 3414973072266
This 2x2 modules French/Schuko plate made of IP20 aluminum, halogen-free, offers a durable matte lacquered finish. Its square format allows modular configurations in horizontal, recessed or trunking installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x2 modules French/Schuko plate made of IP20 aluminum, halogen-free, offers a durable matte lacquered finish. Its square format allows modular configurations in horizontal, recessed or trunking installation.

Product characteristics
  • 2x2 modules French/Schuko cover frame enabling four horizontal modules for domestic switching devices
  • Solid aluminum metal construction for high mechanical robustness and long service life
  • Plates are made of real plain aluminum with matt lacquered surface for muted reflection and stable appearance
  • Square format plate providing modularity and flexible configuration in horizontal flush-mounted installations
  • IP20-rated, halogen-free frame, 157x90x8.5mm, with snap fastening and label space for professional indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Aluminium with muted reflection and cool sensation of metal
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Aluminium
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04879EN-00.pdf pdf (0.53 Mo)
