Arteor Advance - 2x2 modules French/Schuko plate Midnight Blue - Real Plain Aluminum Matt Finish - Horizontal 4 modules cover frame

Arteor Advance Legrand

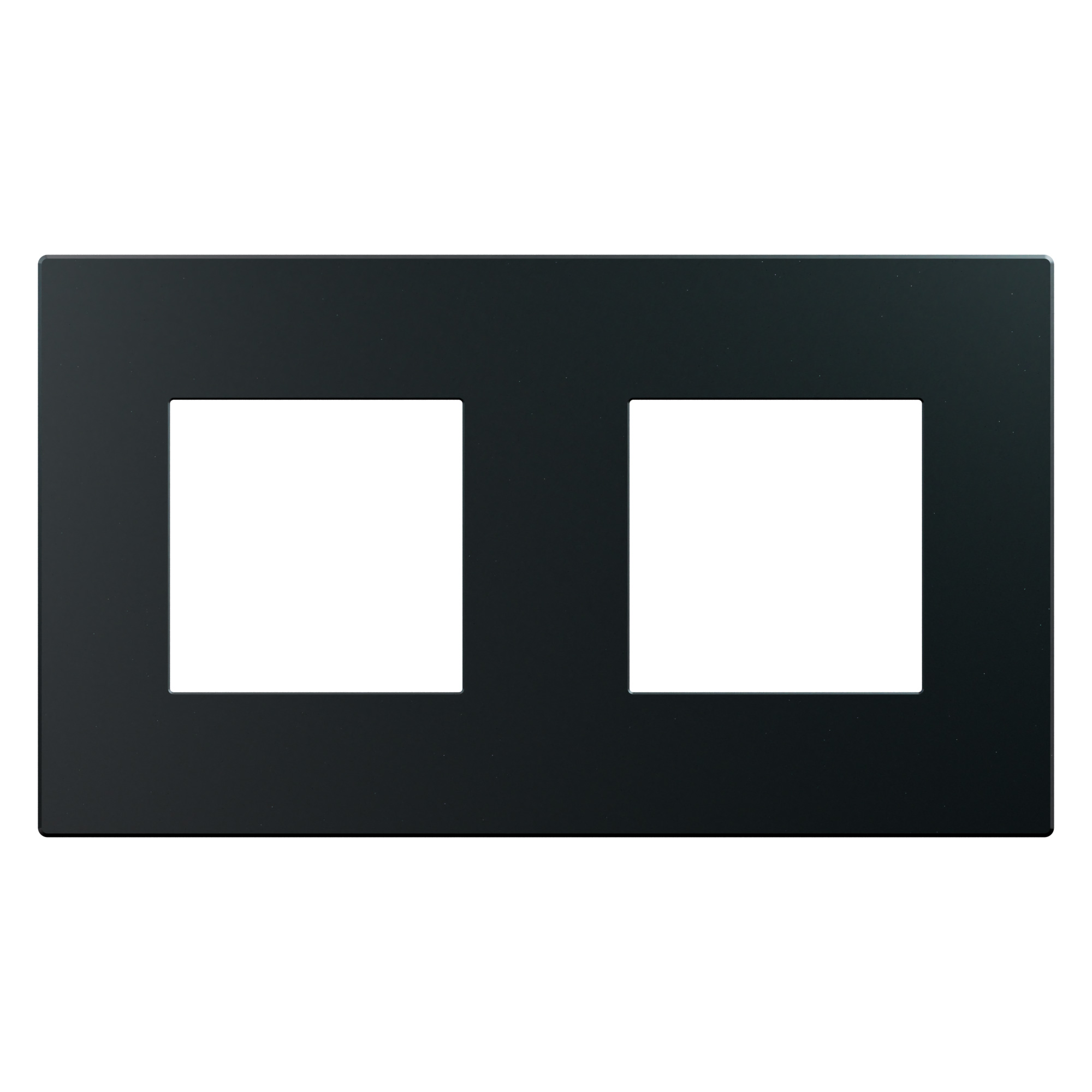

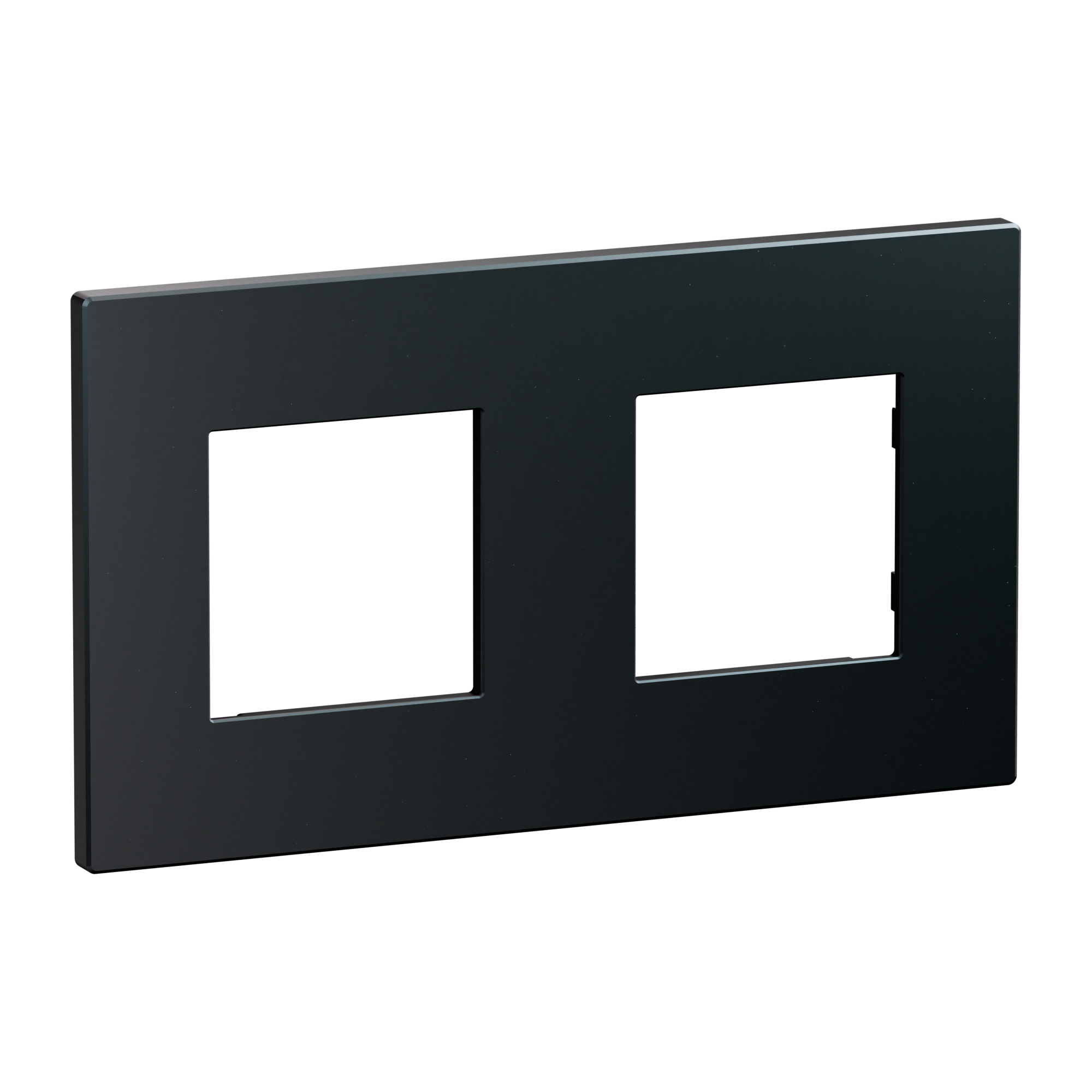

Arteor Advance - 2x2 modules French/Schuko plate Midnight Blue - Real Plain Aluminum Matt Finish - Horizontal 4 modules cover frame

REF. AC1133NB EAN. 3414973072235
This 2x2 modules French/Schuko plate in midnight blue features real plain aluminum with matt lacquered finish. Its square format enables modular configurations, while the integrated adjuster ensures precise flush-mounted installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x2 modules French/Schuko plate in midnight blue features real plain aluminum with matt lacquered finish. Its square format enables modular configurations, while the integrated adjuster ensures precise flush-mounted installation.

Product characteristics
  • 2x2 modules French/Schuko cover frame enabling four horizontal devices in a compact configuration
  • Midnight blue lacquered matte finish providing a dark blue pearlescent appearance for refined aesthetics
  • Real plain aluminum plate construction, halogen free, ensuring mechanical robustness and long-term dimensional stability
  • Square format 157x90x8.5mm with 45x45mm built-in window, allowing modularity and flexible configuration
  • Flush-mounted IP20 cover frame for indoor use, suitable for wall duct and subfloor duct box, with snap-on fastening and label space
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Dark blue with pearlescent gleam and cool sensation of metal
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Blue
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable
