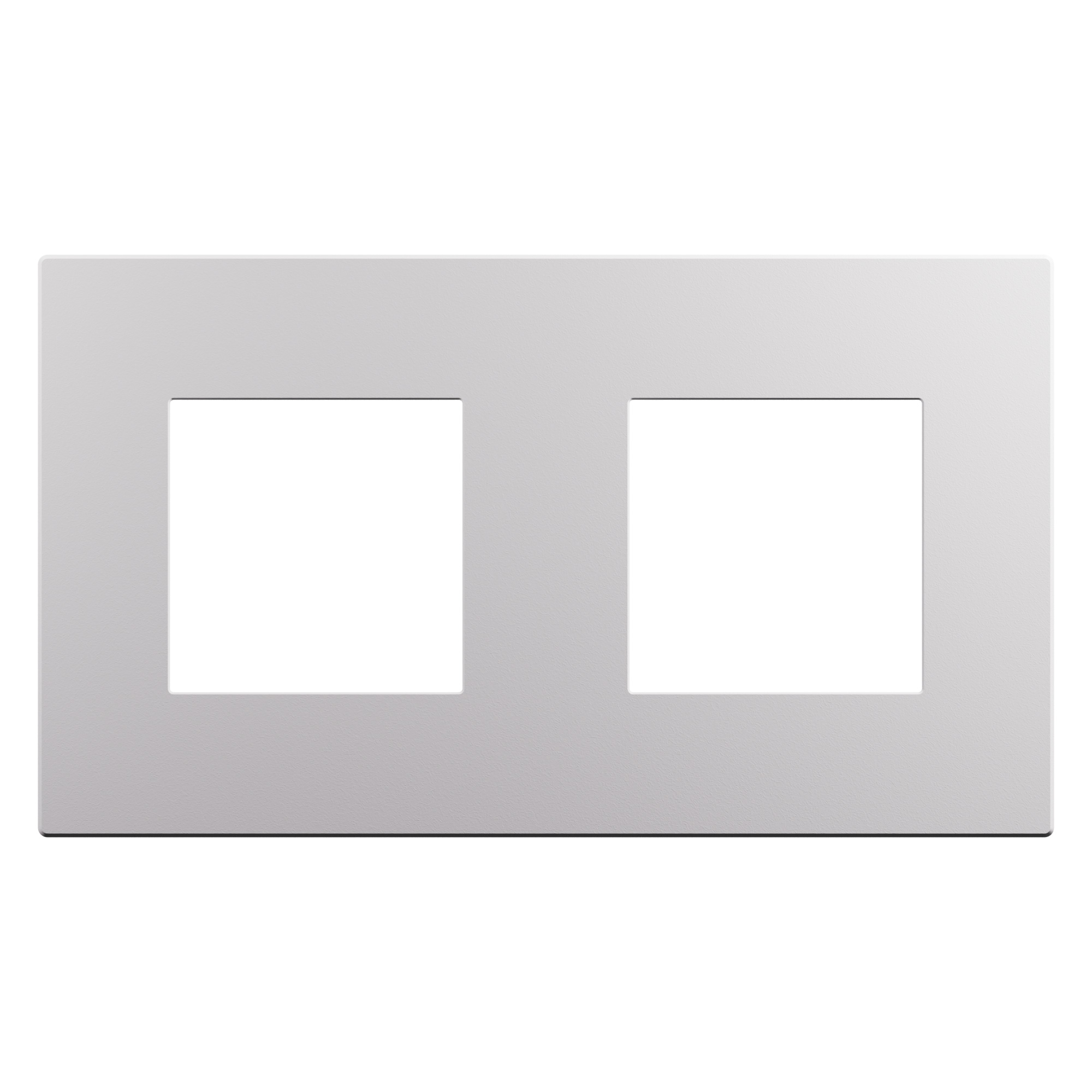

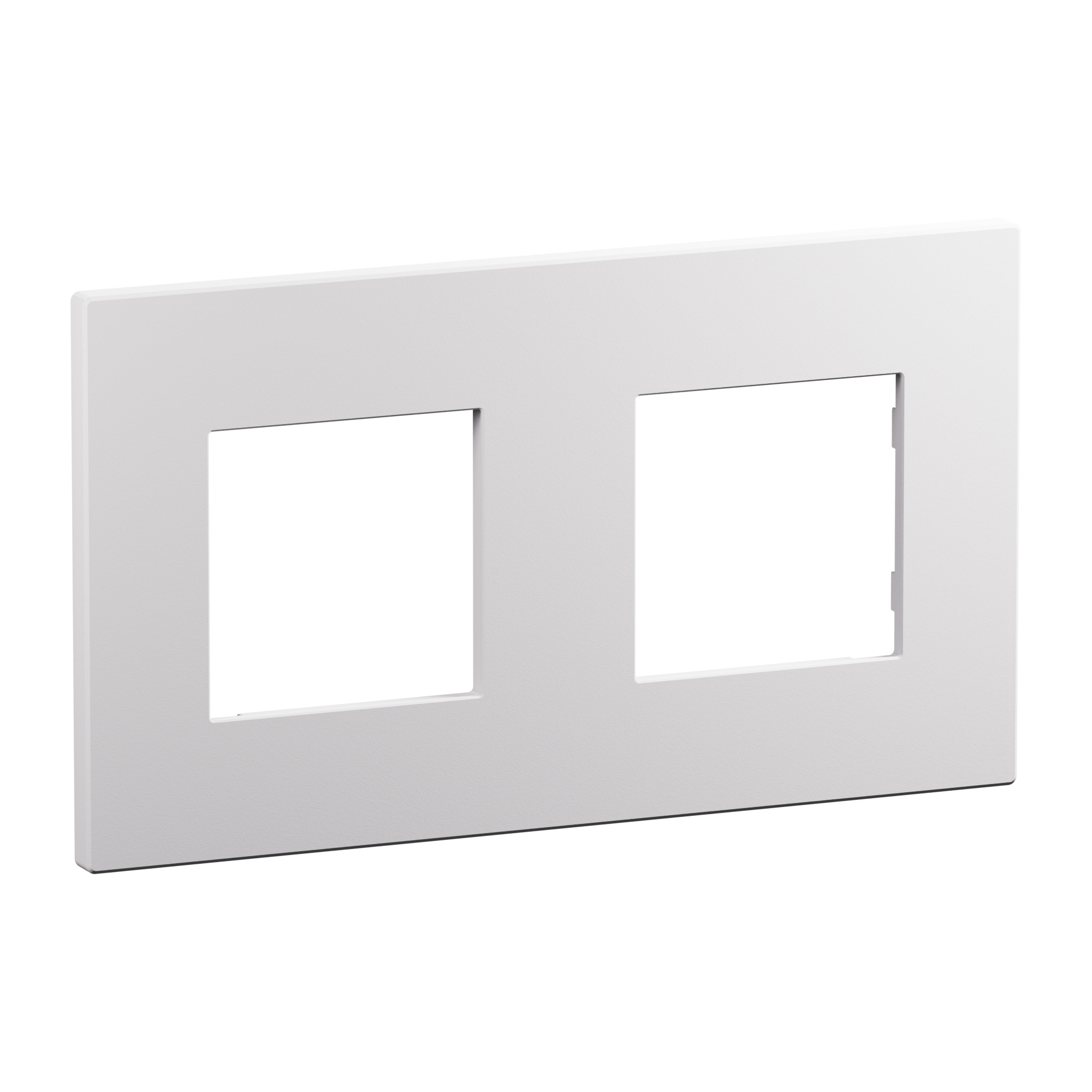

Arteor Advance - 2x2 modules French/Schuko plate matt white - 4 horizontal modules, IP20, flush-mounted - Thermoplastic RAL9003

Arteor Advance Legrand

Arteor Advance - 2x2 modules French/Schuko plate matt white - 4 horizontal modules, IP20, flush-mounted - Thermoplastic RAL9003

REF. AC1133MW EAN. 3414973072204
This 2x2 modules French/Schuko plate in matt white thermoplastic offers IP20 protection and halogen-free safety. Its square, minimalist design and smooth finish ensure long-term aesthetics. Snap fastening provides precise, flush mounting
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x2 modules French/Schuko plate in matt white thermoplastic offers IP20 protection and halogen-free safety. Its square, minimalist design and smooth finish ensure long-term aesthetics. Snap fastening provides precise, flush mounting

Product characteristics
  • 2x2 modules cover frame for French/Schuko devices, providing four horizontal modules for multi-gang configurations
  • Matt white finish (similar to RAL 9003) with powdery, smooth surface for a minimalist, contemporary aesthetic
  • High-quality thermoplastic polycarbonate plate, halogen free and impact resistant for durable professional installations
  • Square, flush-mounted IP20 frame with engage (snap) fastening, optimized for horizontal mounting in wall and subfloor duct systems
  • 157x90x8.5mm dimensions with 45mm built-in width/height and integrated label space for clear circuit identification
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Powdery white with a smooth matte aspect
  • Minimalist design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04877EN-00.pdf pdf (0.53 Mo)
