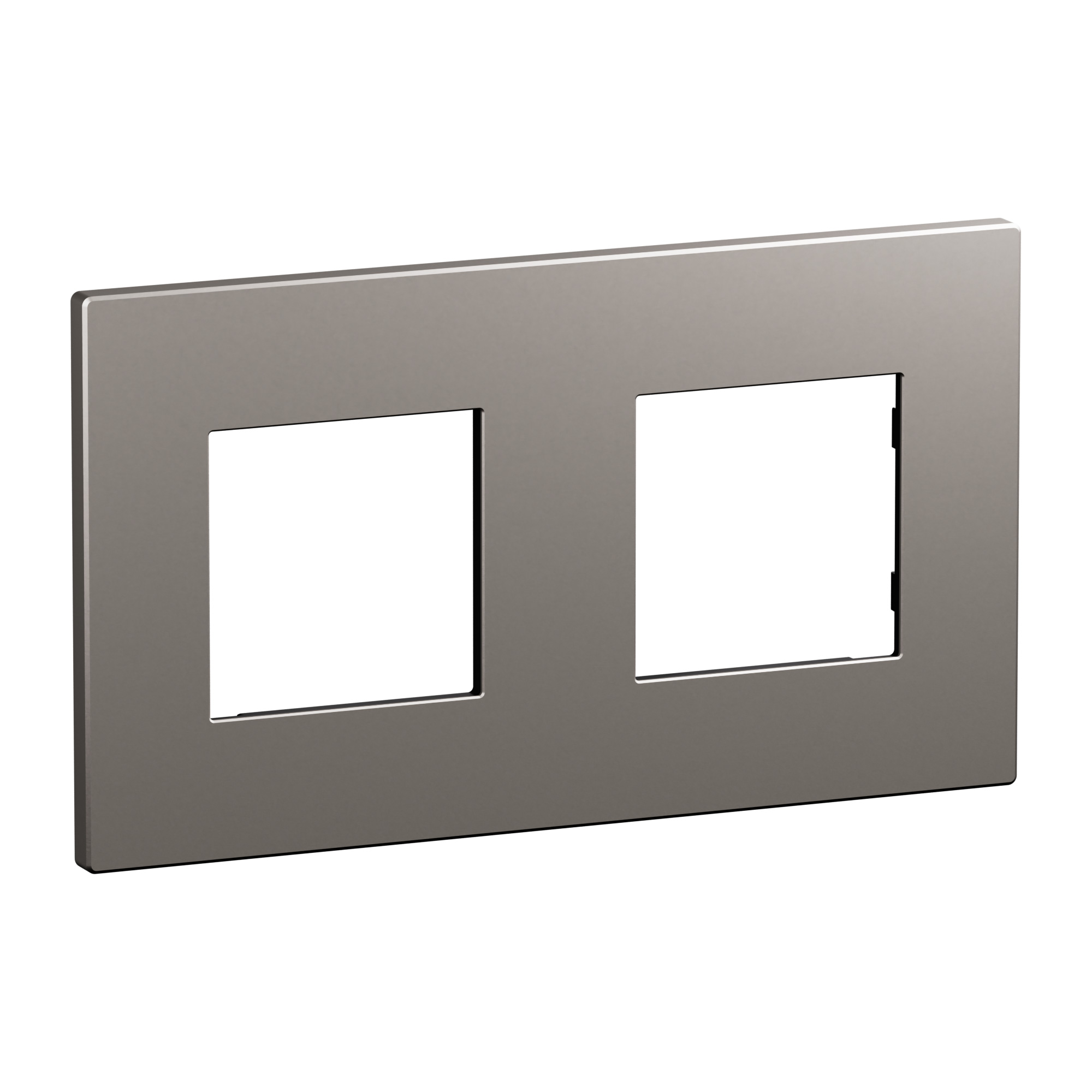

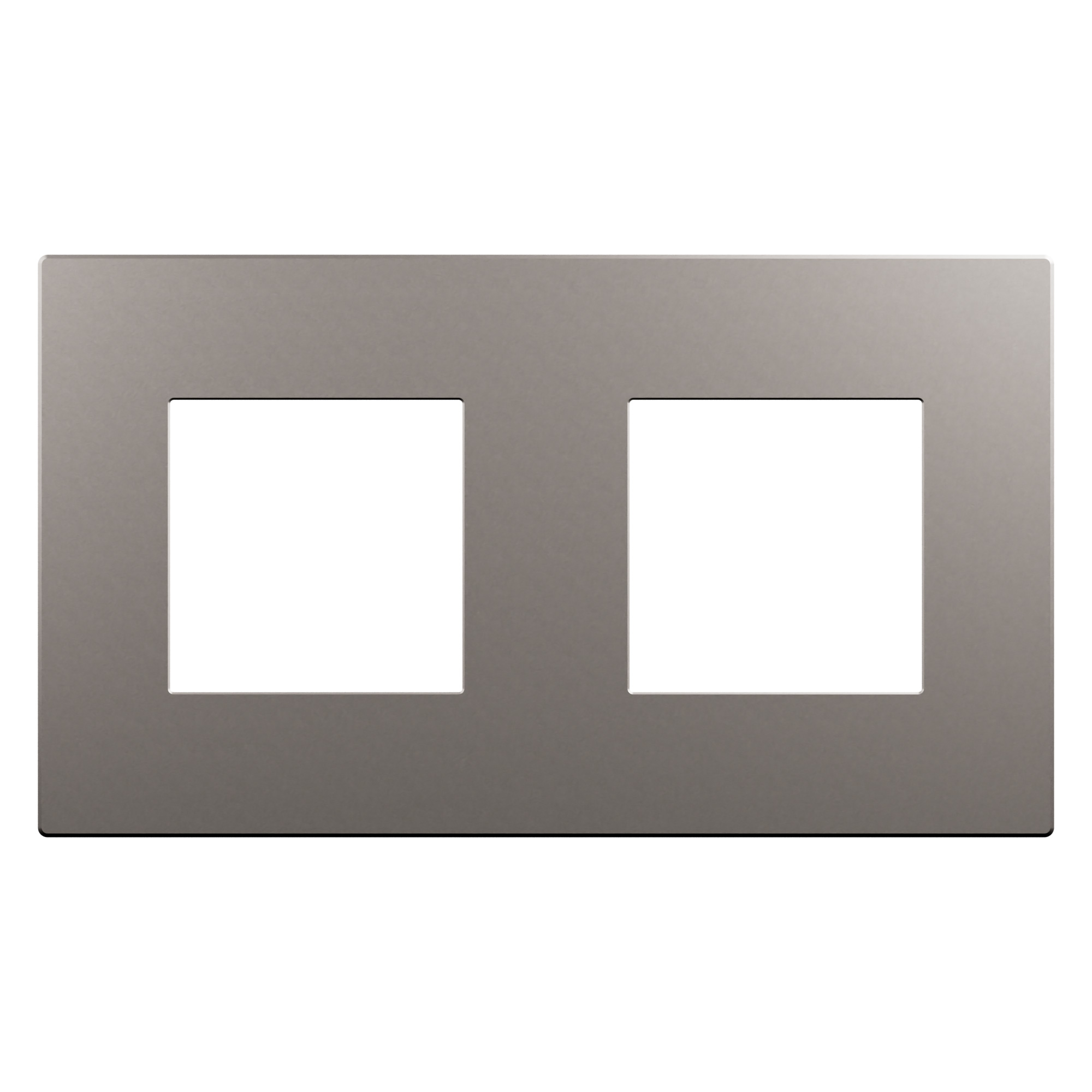

Arteor Advance - 2x2 modules French/Schuko plate matt titanium - 4 modules horizontal cover frame - Matt titanium thermoplastic IP20

Arteor Advance Legrand

Arteor Advance - 2x2 modules French/Schuko plate matt titanium - 4 modules horizontal cover frame - Matt titanium thermoplastic IP20

REF. AC1133MT EAN. 3414973072174
This 2x2 modules French/Schuko plate in matt titanium offers minimalist square design and modular flexibility for horizontal 4-gang layouts.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x2 modules French/Schuko plate in matt titanium offers minimalist square design and modular flexibility for horizontal 4-gang layouts.

Product characteristics
  • 2x2 modules French/Schuko cover frame for domestic switching devices, providing four horizontal modules for multi-gang configurations.
  • Matt titanium surface finish delivers a smooth, low-glare aesthetic aligned with modern architectural interiors.
  • Plate manufactured from thermoplastic polycarbonate, halogen free and impact-resistant for durable, safe installations.
  • Square format frame enables modularity and flexible configuration while maintaining a minimalist, geometric design language.
  • Flush-mounted IP20 cover frame with snap fastening, 157x90x8.5mm, suitable for wall duct and subfloor installation duct boxes for indoor use.
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Titanium with a smooth matte finish
  • Minimalist design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Titanium
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04877EN-00.pdf pdf (0.53 Mo)
