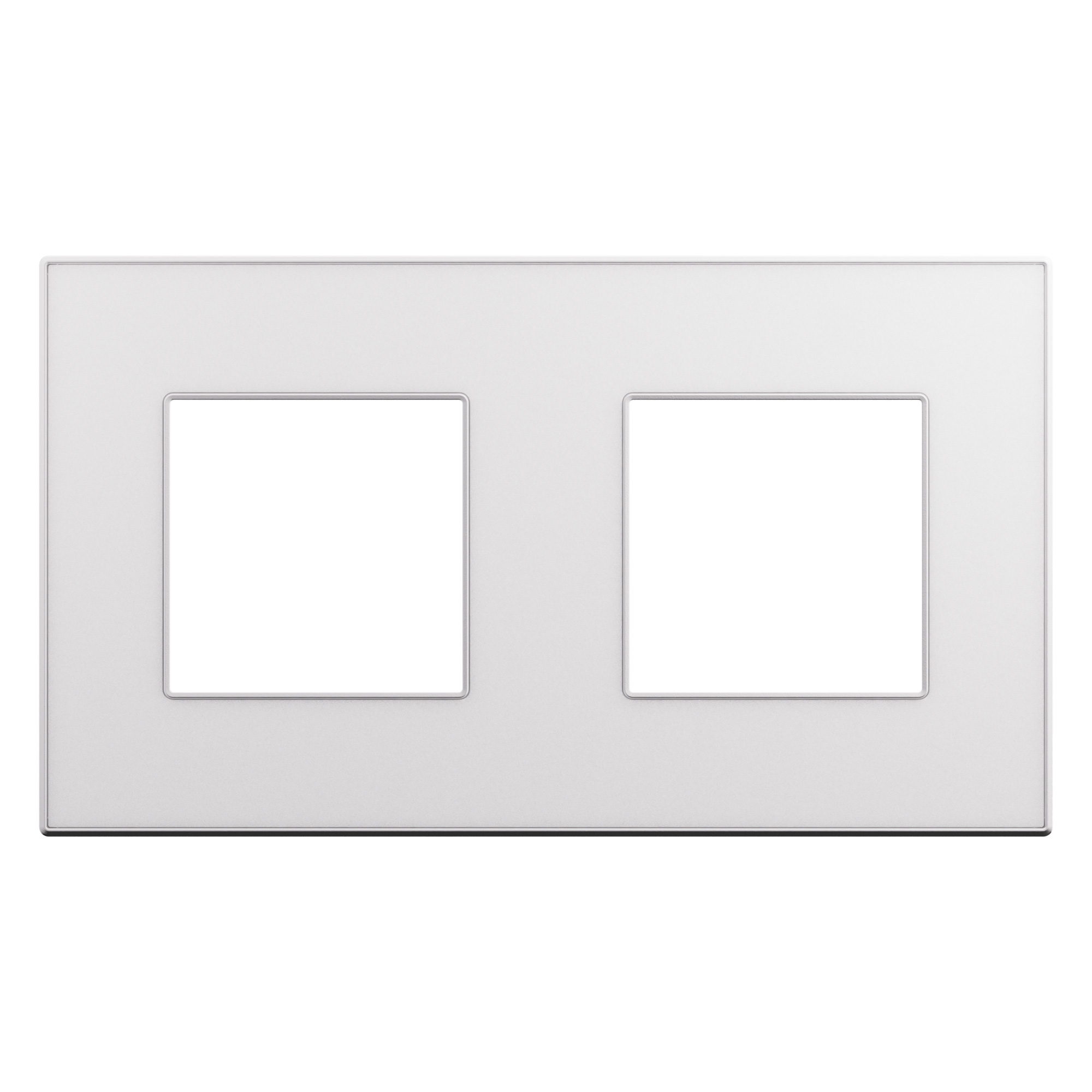

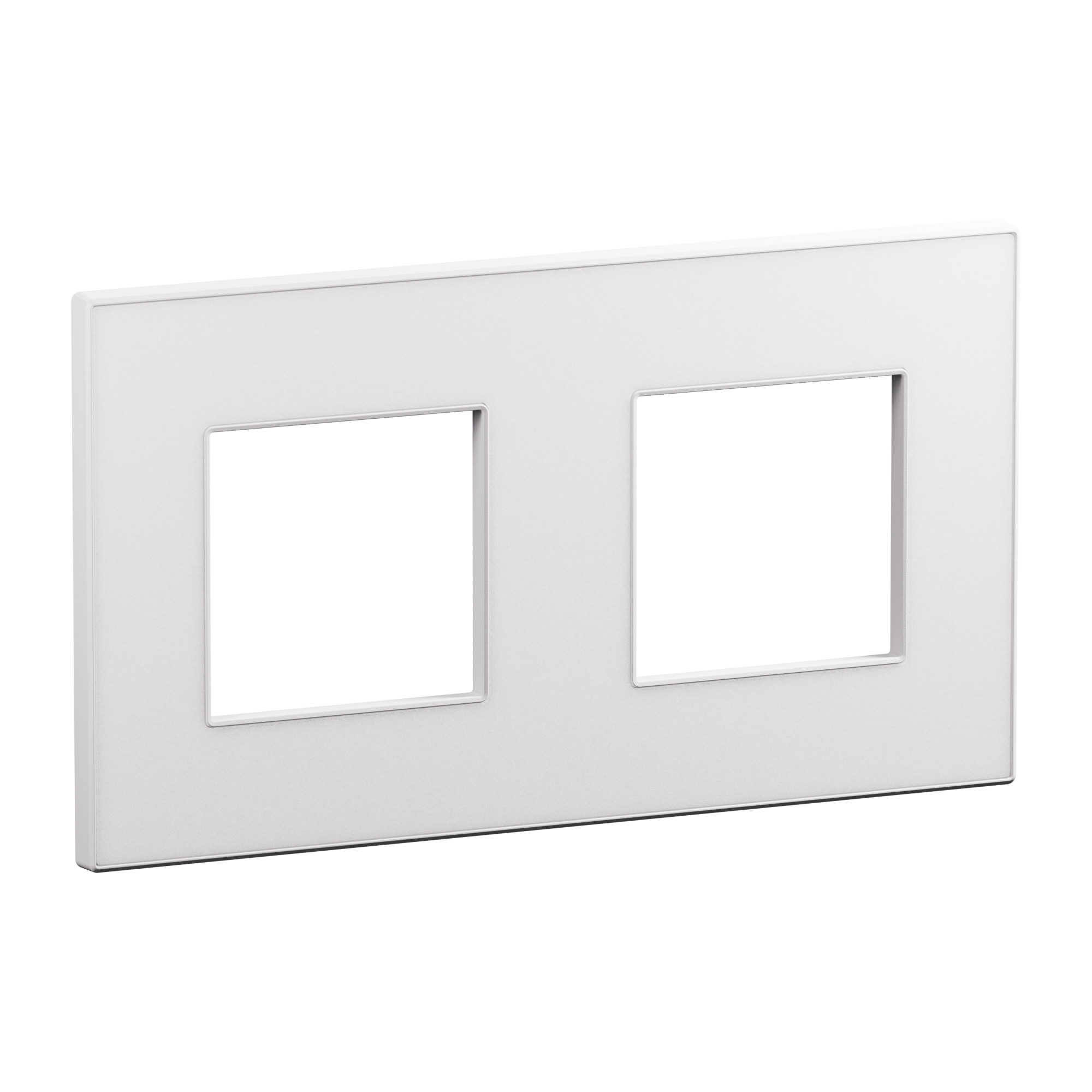

Arteor Advance - 2x2 modules French/Schuko plate frosted white - Crystal polycarbonate square frame - Horizontal flush mount IP20

Arteor Advance Legrand

Arteor Advance - 2x2 modules French/Schuko plate frosted white - Crystal polycarbonate square frame - Horizontal flush mount IP20

REF. AC1133FW EAN. 3414973072112
This 2x2 modules French/Schuko plate in frosted white offers refined square design and horizontal 4-gang configuration. Its crystal polycarbonate with matt finish ensures long-term aesthetics. Snap fastening provides precise flush-mounted
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x2 modules French/Schuko plate in frosted white offers refined square design and horizontal 4-gang configuration. Its crystal polycarbonate with matt finish ensures long-term aesthetics. Snap fastening provides precise flush-mounted

Product characteristics
  • 2x2 modules French/Schuko cover frame enabling four horizontal device positions for modular configurations
  • Frosted white, matt lacquered finish providing refined aesthetics and reduced glare for premium interior installations
  • Crystal polycarbonate thermoplastic plate offering high mechanical strength, halogen-free composition, and long-term visual stability
  • Square format frame (157x90x8.5mm) with IP20 protection, optimized for flush-mounted and duct installations
  • Snap-on fastening without mounting grid, with label space for circuit identification, recommended for indoor use only
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Crystal PC, set in a cradle, providing both velvety touch and white translucence
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04878EN-00.pdf pdf (0.53 Mo)
