Arteor Advance - 2x2 modules French/Schuko plate dark aluminum - Real brushed dark aluminum - Square 4 modules frame IP20

Arteor Advance Legrand

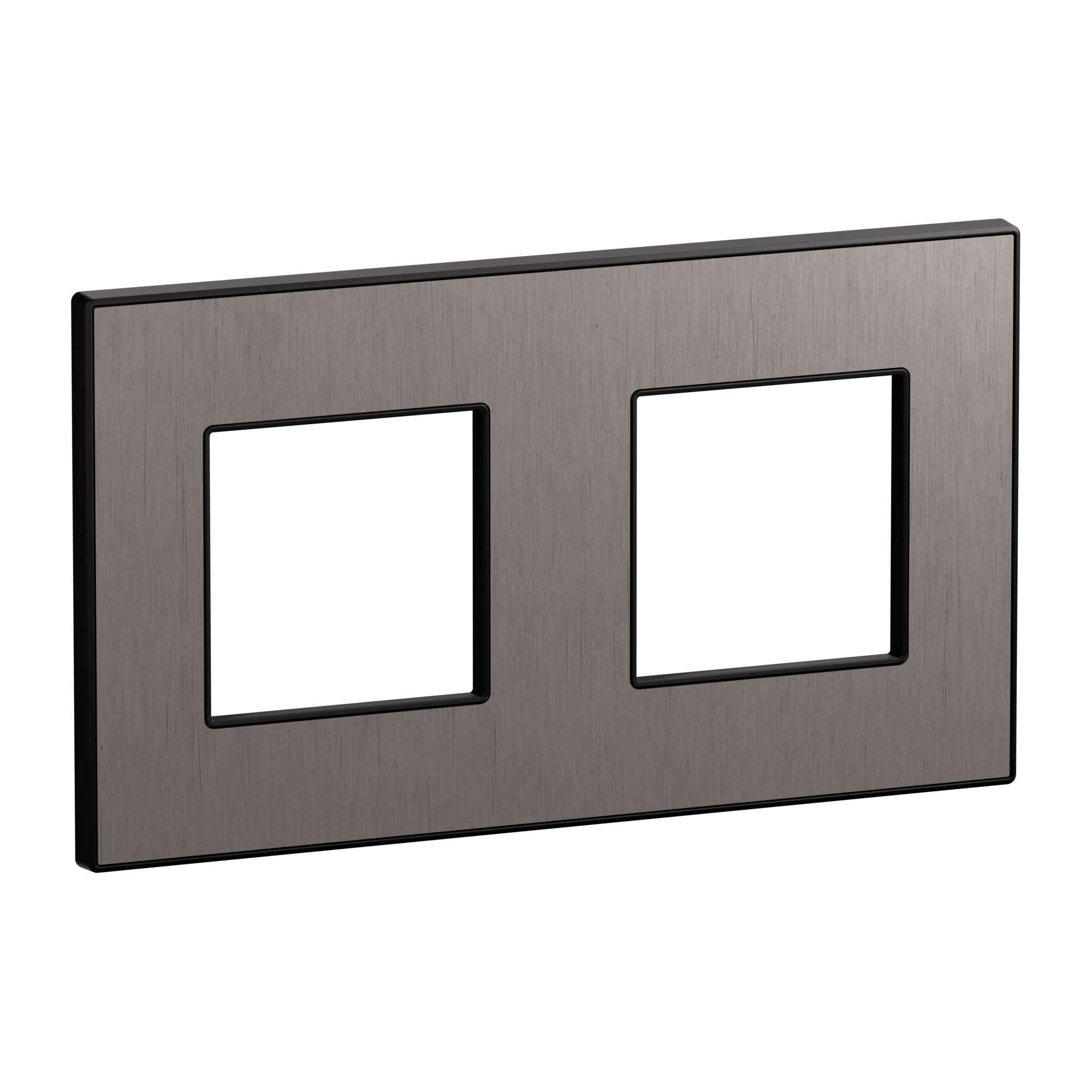

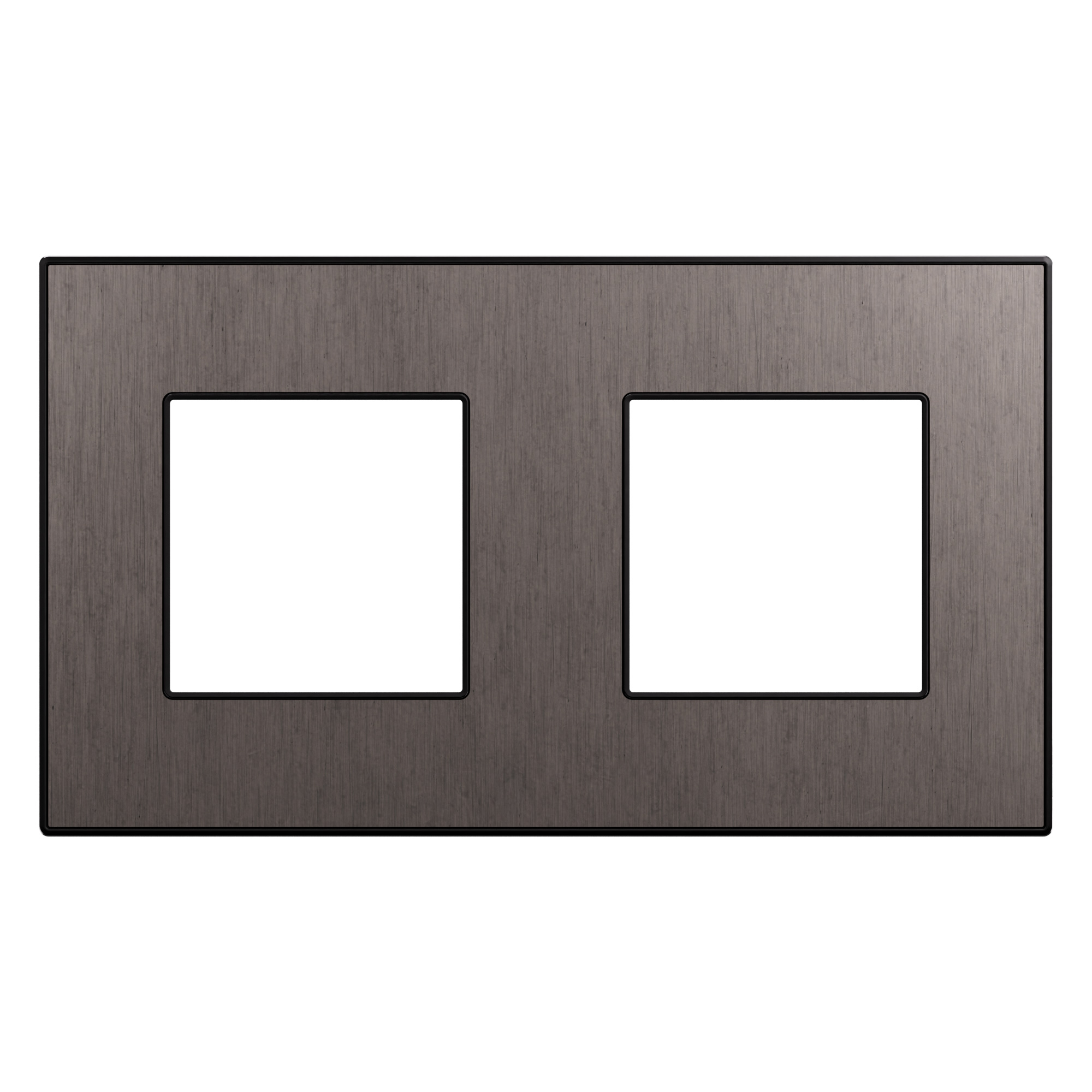

Arteor Advance - 2x2 modules French/Schuko plate dark aluminum - Real brushed dark aluminum - Square 4 modules frame IP20

REF. AC1133DA EAN. 3414973072051
This 2x2 modules French/Schuko plate in dark brushed aluminum offers refined, square-format design and modular flexibility. Its matt warm gray finish ensures long-term aesthetics. Snap fastening enables precise, flush-mounted installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x2 modules French/Schuko plate in dark brushed aluminum offers refined, square-format design and modular flexibility. Its matt warm gray finish ensures long-term aesthetics. Snap fastening enables precise, flush-mounted installation.

Product characteristics
  • 2x2 modules French/Schuko cover frame enabling four horizontal devices in a compact 157mmx90mm footprint
  • Dark aluminum finish with matt warm gray reflection for a refined, contemporary aesthetic in technical interiors
  • Front plate in real brushed aluminum for enhanced surface durability and long-term visual stability under daily wear and sunlight exposure
  • Square geometry allowing modularity and flexible configuration of Arteor Advance mechanisms in horizontal installations
  • Flush-mounted IP20 cover frame, halogen free and snap-fastened, suitable for wall duct and subfloor duct box installations with 45mm built-in aperture
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • The plate contains an adjuster that ensures perfect installation on the wall
Usage
  • Ensures long-term aesthetic against daily wear and sunlight exposure.
Avantages
  • Real brushed aluminium set in a cradle, with a matt warm grey reflection
  • Refined design
  • Square format allows modularity and flexible configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box Yes
Suitable for wall duct Yes
Suitable for built-in installation No
Label space/information surface Yes
Material Other
Material quality Other
Halogen free Yes
Antimicrobial treatment No
Surface protection Untreated
Surface finishing Matt
Colour Grey
Transparent No
With hinged lid No
Degree of protection (IP) IP20
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Built-in width 45 mm
Built-in height 45 mm
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04878EN-00.pdf pdf (0.53 Mo)
