Arteor Advance - 2x2 modules British Standard plate solid rose - 2-gang 2x2 modular cover frame - Matt aluminum, pink finish

Arteor Advance Legrand

Arteor Advance - 2x2 modules British Standard plate solid rose - 2-gang 2x2 modular cover frame - Matt aluminum, pink finish

REF. AC1108SR EAN. 3414972976947

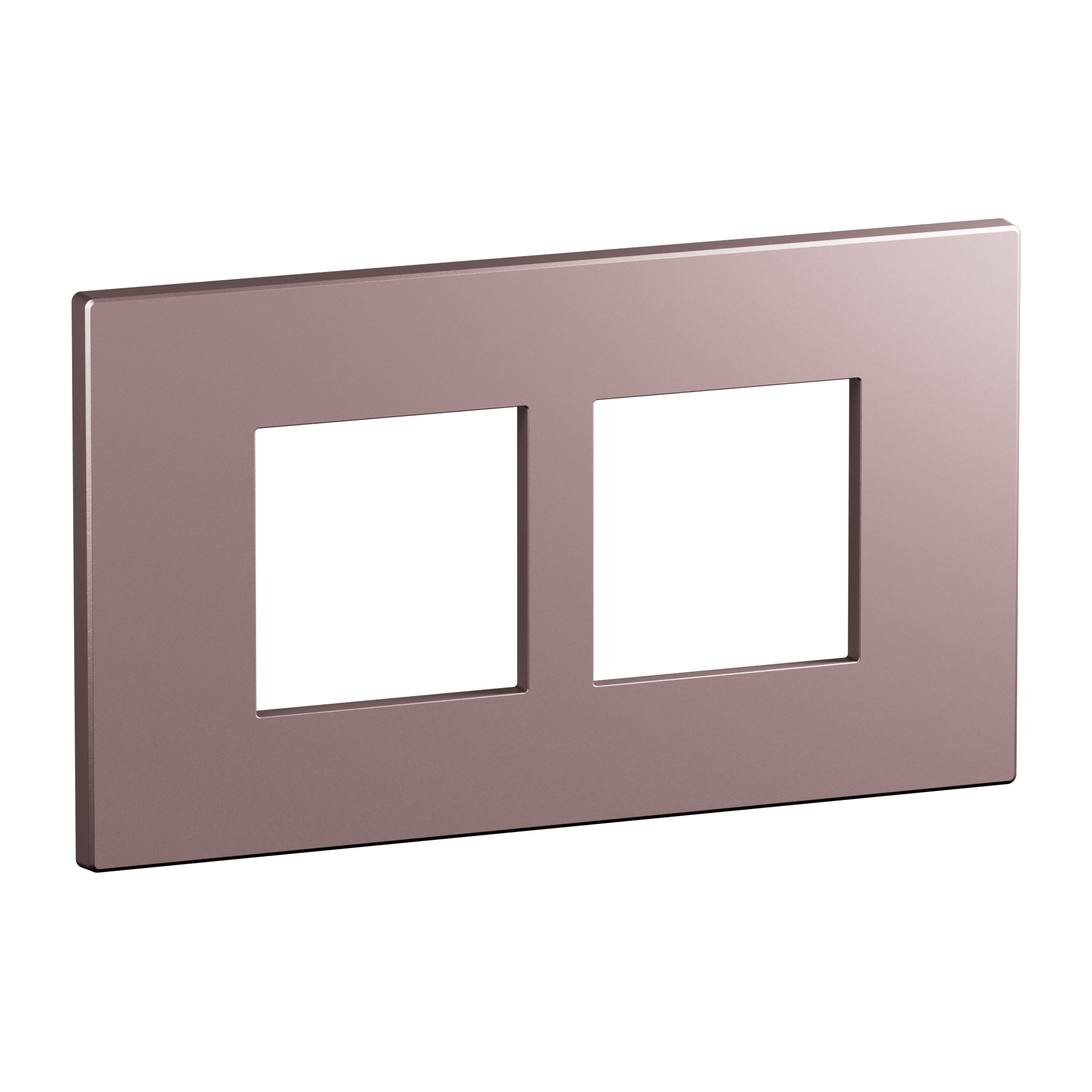

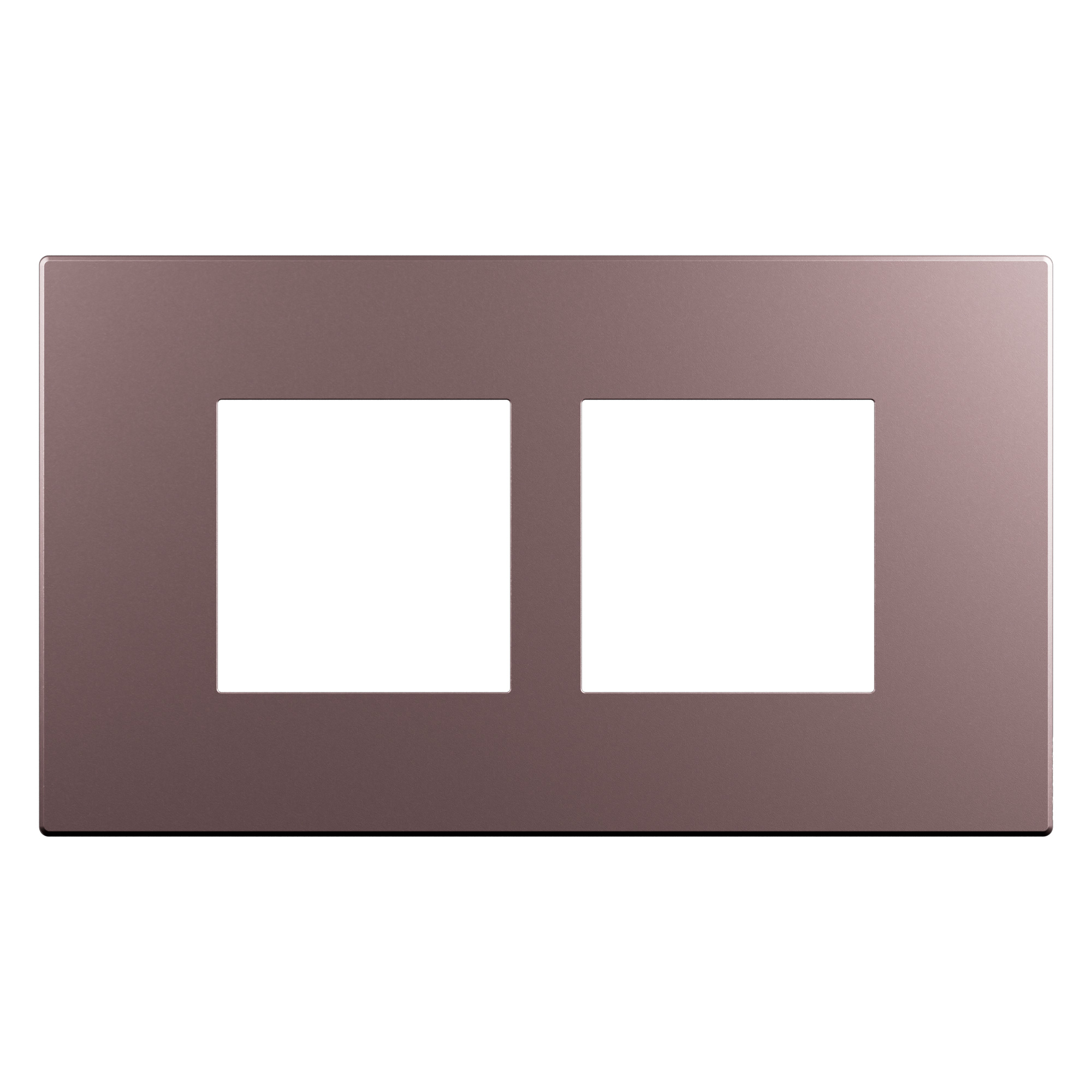

The 2x2 modules British standard plate solid rose is a minimalist, square metal cover frame offering 2-gang, 2x2 module capacity for flush-mounted installations. Its pink matt lacquered finish and snap fastening ensure precise wall align
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

The 2x2 modules British standard plate solid rose is a minimalist, square metal cover frame offering 2-gang, 2x2 module capacity for flush-mounted installations. Its pink matt lacquered finish and snap fastening ensure precise wall align

Product characteristics
  • Two-gang British Standard cover frame for 2x2 modules, horizontal mounting, flush-mounted installation
  • Solid rose pink lacquered finish delivering a subtle blush effect with the cool sensation of metal
  • Plate made of matt lacquered aluminum, halogen free, ensuring robust, long-lasting performance
  • Square, minimalist design enabling modularity and flexibility in a compact 4 modules (2x2) configuration
  • Snap-on fastening with IK02 impact resistance, dimensions 157x90x8.5mm, operating temperature -5 to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Pink finish evoking a subtle blush effect with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Pink
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
