Arteor Advance - 2x2 Modules British Standard Plate Solid Champagne - 2-gang 4 modules horizontal cover frame - Matt gold aluminum

Arteor Advance Legrand

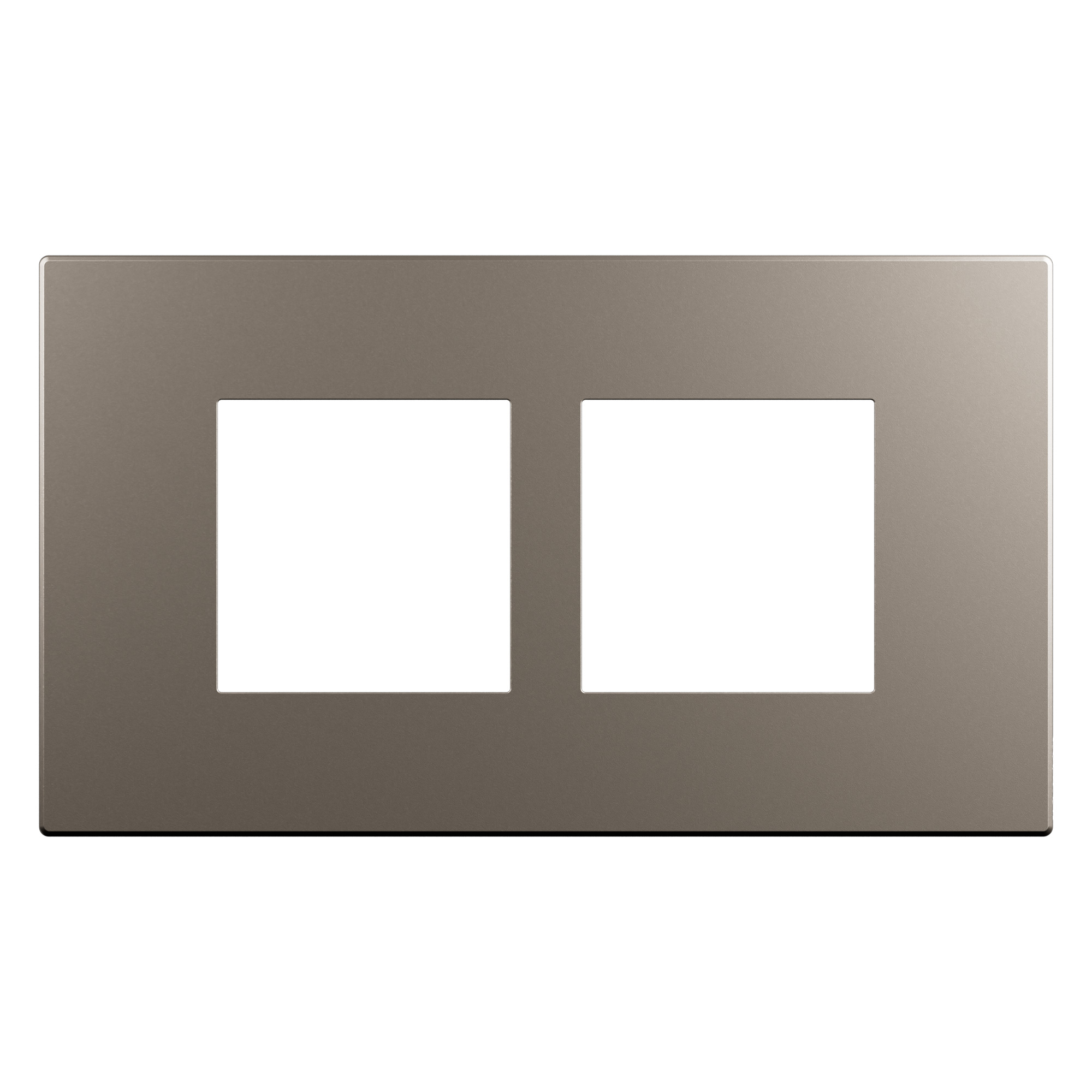

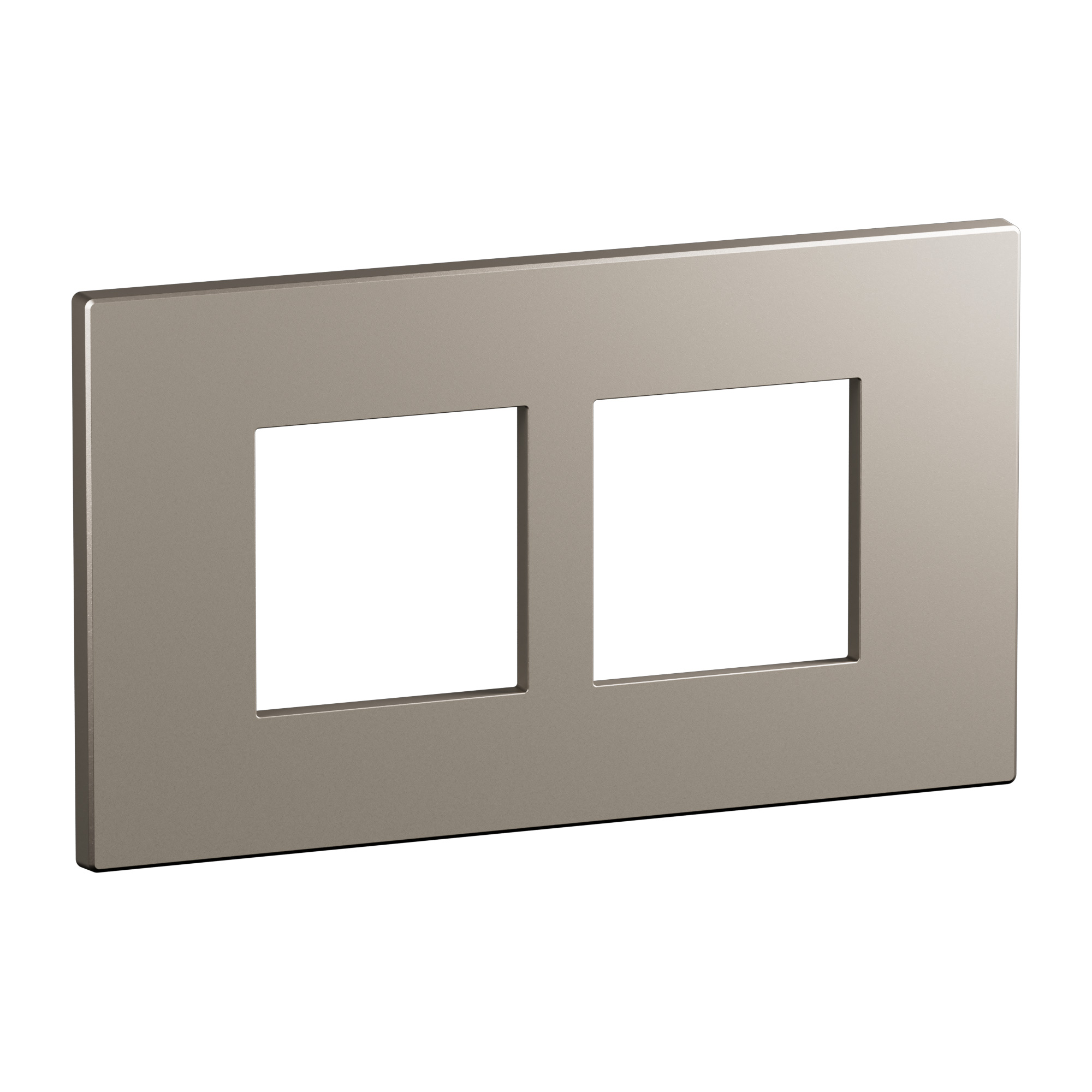

Arteor Advance - 2x2 Modules British Standard Plate Solid Champagne - 2-gang 4 modules horizontal cover frame - Matt gold aluminum

REF. AC1108SC EAN. 3414972976886
This 2x2 modules British Standard plate in solid champagne features a minimalist square design for modular flexibility. Its lacquered matt aluminum construction with IK02 impact strength ensures durable, flush-mounted installation.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x2 modules British Standard plate in solid champagne features a minimalist square design for modular flexibility. Its lacquered matt aluminum construction with IK02 impact strength ensures durable, flush-mounted installation.

Product characteristics
  • Two-gang British Standard cover frame supporting 2x2 modules for domestic switching devices
  • Solid champagne matt lacquered finish in warm gold tone for a refined, minimalist aesthetic
  • Cover plate manufactured from lacquered aluminum, halogen free and non-transparent for robust, safe installations
  • Square horizontal 2-gang geometry (157x90x8.5mm) enabling modularity and compact configuration
  • Snap-on flush-mounted installation, IK02 impact resistance, operating temperature -5-35° C, recommended for indoor use
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Warm gray finish infused with ivory hues highlights silky elegance with cool sensation of metal
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Metal
Material quality Aluminium
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Gold
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04496EN-00.pdf pdf (0.52 Mo)
