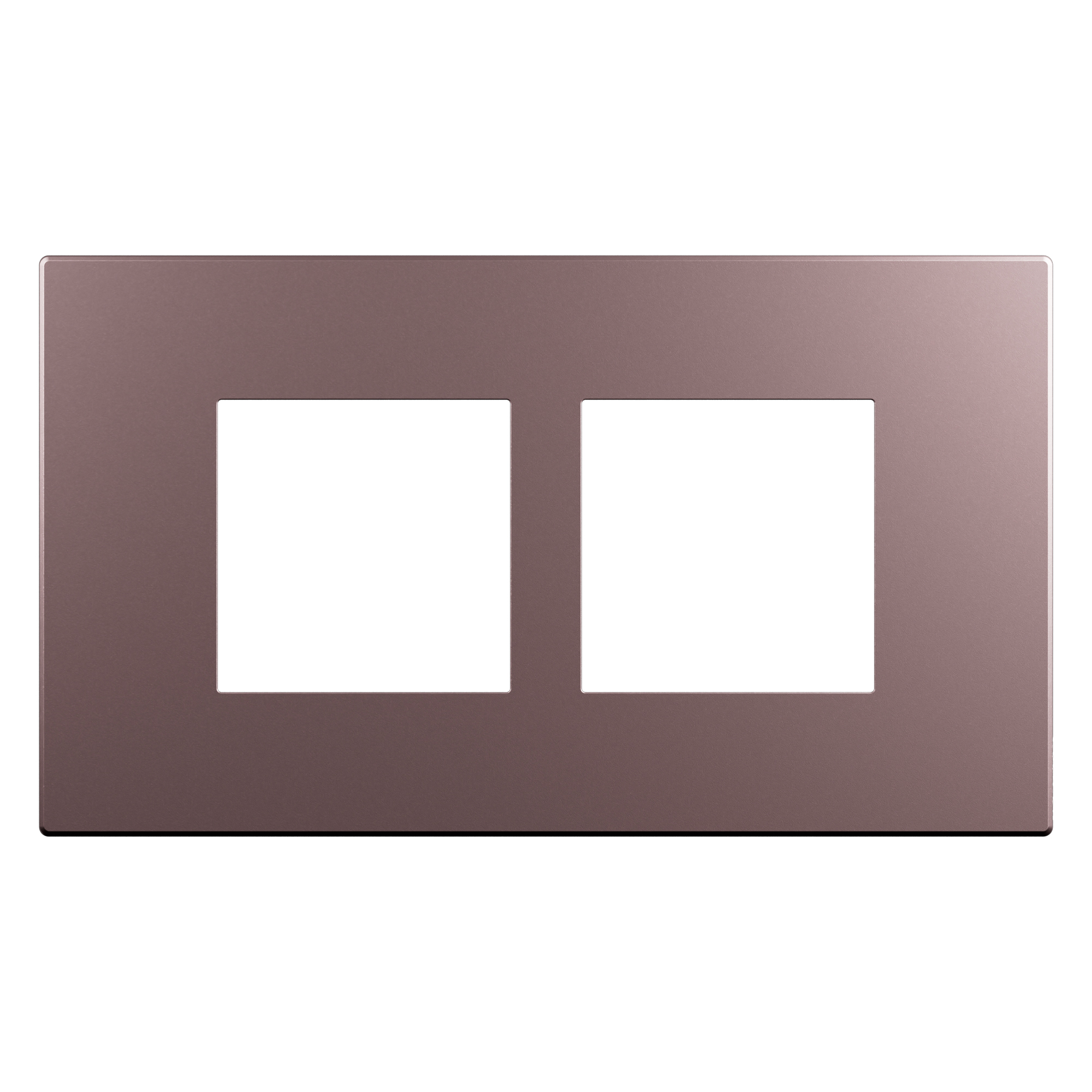

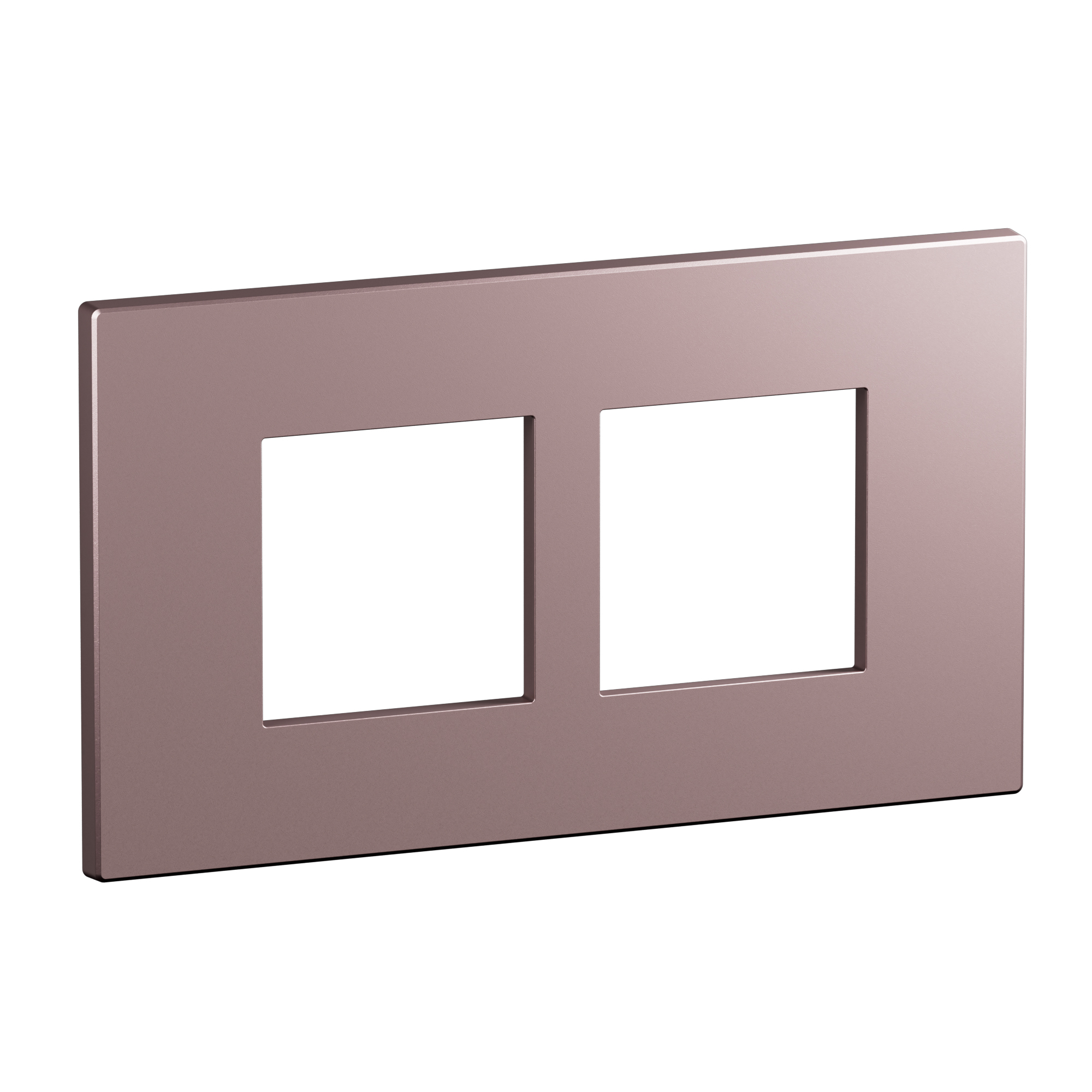

Arteor Advance - 2x2 modules British standard plate rose - Two gang 2x2 modules - Pink matt thermoplastic plate - Flush-mounted design

Arteor Advance Legrand

Arteor Advance - 2x2 modules British standard plate rose - Two gang 2x2 modules - Pink matt thermoplastic plate - Flush-mounted design

REF. AC1108RS EAN. 3414972921718
This 2x2 modules British Standard plate rose delivers a minimalist square design with pink finish. Its thermoplastic, halogen-free construction and snap fastening ensure robust, precise flush mounting.
Download product sheet
Finition :
Number of modules horizontal (module system) :
Number of modules vertical (module system) :
You can only compare 4 products, you must remove 1 to add this one

Description

This 2x2 modules British Standard plate rose delivers a minimalist square design with pink finish. Its thermoplastic, halogen-free construction and snap fastening ensure robust, precise flush mounting.

Product characteristics
  • Two-gang British Standard cover frame providing 2x2 modules for modular domestic switching layouts
  • Rose (pink) matt lacquered finish delivering a subtle blush aesthetic aligned with Arteor Advance design
  • Plate manufactured from halogen-free thermoplastic polycarbonate for enhanced mechanical strength and safety
  • Square horizontal 4 modules (2x2) configuration enabling compact, flexible arrangement of switching devices
  • Flush-mounted snap-on plate, 157mmx90mmx8.5mm, recommended for indoor use with operating temperature from -5° C to 35° C
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Usage
  • The plate contains an adjuster that ensures perfect installation on the wall
Avantages
  • Pink finish evoking subtle blush effect
  • Minimalist design
  • Square design allows modularity and flexibility in a compact configuration

Technical characteristics

Number of units 2
Mounting direction Horizontal
Number of units horizontal 2
Number of units vertical 1
Number of modules horizontal (module system) 4
Number of modules vertical (module system) 1
With mounting grid No
Flush-mounted installation Yes
Suitable for subfloor installation duct box No
Suitable for wall duct No
Label space/information surface No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour Pink
Transparent No
With hinged lid No
degree of impact strength (IK) IK02
Type of fastening Engage (snap)
Width 157 mm
Height 90 mm
Depth 8.5 mm
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Latin wood species Not applicable
Certification of wood (list) Not applicable
Wood Climate area Not applicable

Documentation

1 document
Technical Sheet
F04493EN-00.pdf pdf (0.51 Mo)
