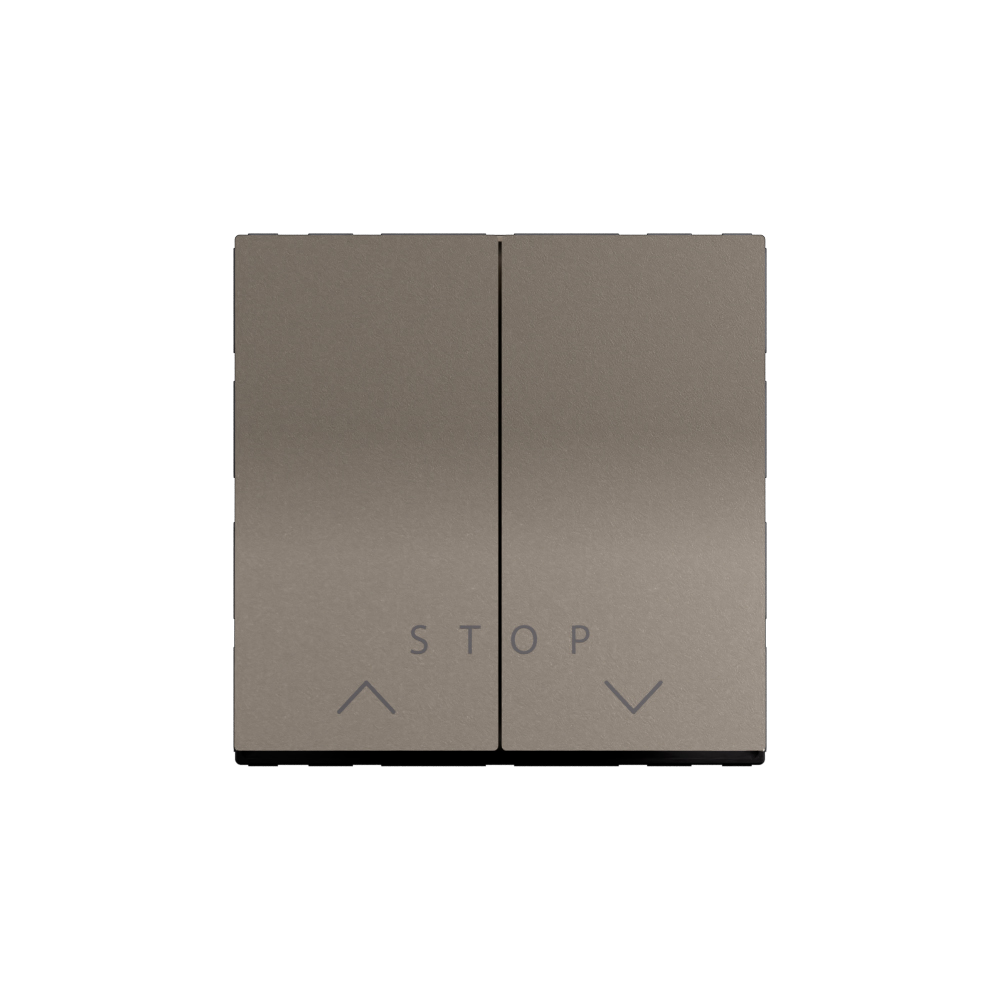

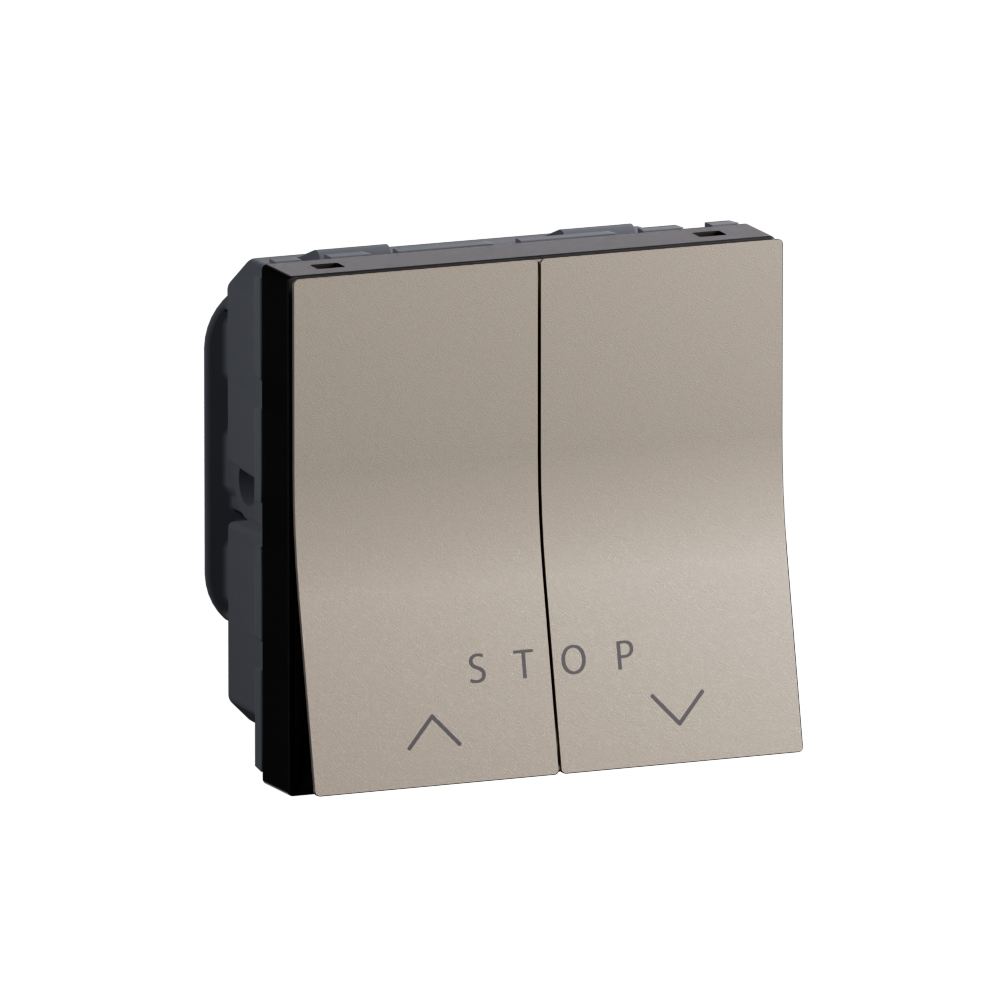

Arteor Advance - 2x1 Module 10A Roller Blinds Push Button Champagne - 2-pole rocker for venetian blinds - Modular IP20 switch

Arteor Advance Legrand

Arteor Advance - 2x1 Module 10A Roller Blinds Push Button Champagne - 2-pole rocker for venetian blinds - Modular IP20 switch

REF. AC26106CH EAN. 3414972925136
Allows convenient control of roller blinds with a 2-pole 10A rocker push button. Its modular 2x1M design with screw terminals simplifies installation in module frames. The champagne matt thermoplastic finish offers durable indoor use.
Download product sheet
Finition :
You can only compare 4 products, you must remove 1 to add this one

Description

Allows convenient control of roller blinds with a 2-pole 10A rocker push button. Its modular 2x1M design with screw terminals simplifies installation in module frames. The champagne matt thermoplastic finish offers durable indoor use.

Product characteristics
  • 2x1-module, 2-pole push-button window blind switch, 10A rated at 250V AC, modular device for domestic switching devices
  • Champagne (gold) matt lacquered thermoplastic finish with warm gray/ivory tones for a premium architectural aesthetic
  • Rocker mechanism engineered for smooth, low-noise actuation with subtle touch and sound feedback
  • 10A rating suitable for switching the full rated current on inductive and resistive SBL loads and LED circuits, IP20, indoor use only
  • Screw-type terminals (4 terminals, 0.75mm² to 1.5mm² flexible or rigid) with snap-in mounting, 45x45x38mm, 25mm minimum box depth, providing secure installation and modularity (2 modules)
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Subtle touch & sound
  • Warm gray finish infused with ivory hues highlights silky elegance
  • The square format enables modularity

Technical characteristics

For venetian blinds Yes
For roller blinds No
Assembly arrangement Modular device for domestic switching devices
Model 2-pole push button
Number of poles 2
Method of operation Rocker
Mounting method Module frame
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Surface protection Lacquered
Surface finishing Matt
Type of fastening Engage (snap)
Connection type Screwed terminal
Colour Gold
Transparent No
Label space/information surface Yes
Suitable for degree of protection (IP) IP20
Rated current 10 A
Nominal voltage 250 V
Number of buttons 2
Number of modules (module system) 2
Device width 45 mm
Device height 45 mm
Device depth 38 mm
Min. depth of built-in installation box 25 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
Voltage type AC
Type of lighting Not applicable
Terminal marking indication Yes
Antimicrobial treatment No
Number of terminals 4
Terminals capacity (Min-Max) 0.75-1.5 mm²
Cable nature for connection Flexible or rigid
