Arteor Advance - 2M scenario push button 230V/12V with 12V LED matt black - Grms compatible - 2-module modular design

Arteor Advance Legrand

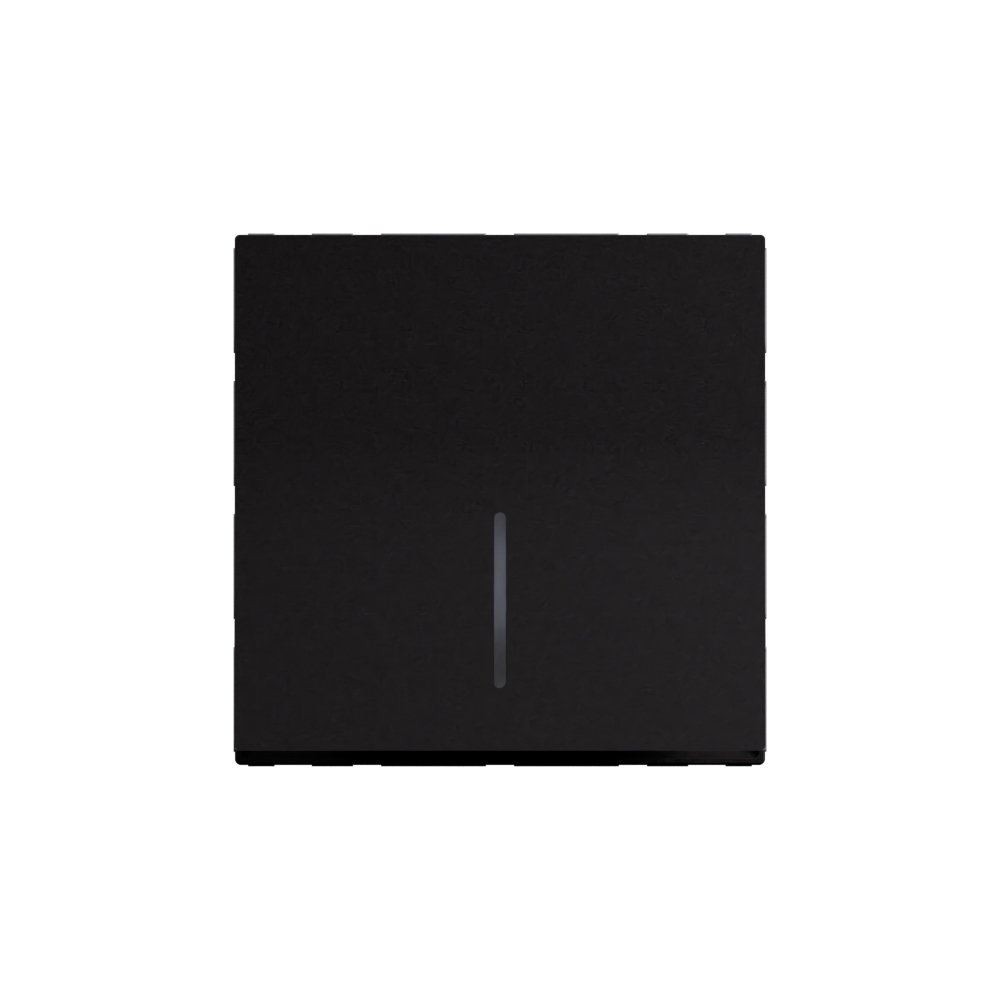

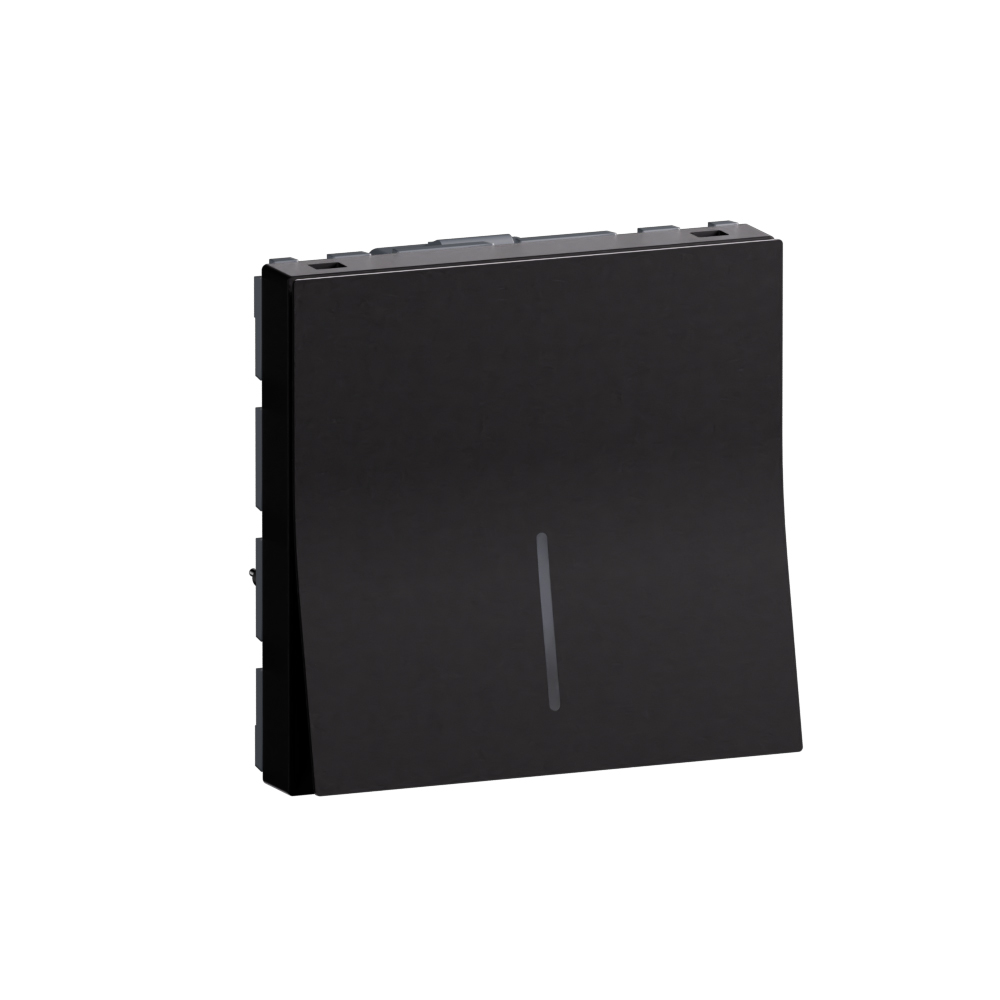

Arteor Advance - 2M scenario push button 230V/12V with 12V LED matt black - Grms compatible - 2-module modular design

REF. AC23118MB EAN. 3414972751896
Offers a gentle touch for effortless light control with smooth, quiet operation. This 2 modules electromechanical push button supports 230V and 12V with 12V LED indication and automatic return. Matt black square format with screw terminals.
Download product sheet
Colour :
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. This 2 modules electromechanical push button supports 230V and 12V with 12V LED indication and automatic return. Matt black square format with screw terminals.

Product characteristics
  • Two-module scenario push button for 230V and 12V circuits with 12V LED indication, enabling dual-voltage control in a single 2M device
  • Matt black thermoplastic front with lacquered, smooth matt finish for a deep black, low-reflection aesthetic matching Arteor Advance ranges
  • Electromechanical single push button with 1 NO contact that automatically returns to its original position for momentary control functions
  • Fully compatible with grms for configurable scenarios and customized room control according to client preferences
  • Modular device for domestic switching with screw terminals (0.75mm² to 1.5mm²) and snap-in mounting, IP20, 45x45x38mm, for indoor installations
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Avantages
  • Subtle touch & sound
  • Deep black with a smooth matt aspect
  • The square format enables modularity for lighting control

Technical characteristics

Operating principle Electromechanical
Number of contacts as normally closed contact 0
Number of contacts as normally open contact 1
Number of contacts as change-over contact 0
Number of rockers 1
Number of modules (module system) 2
Nominal voltage 12 V
With lighting Yes
With light source Yes
With complemantary luminous signal Yes
Mounting method Module frame
Colour Black

Documentation

1 document
Technical Sheet
F04609EN-00.pdf pdf (0.51 Mo)
2 documents
RoHS DIRECTIVE
REACH DECLARATION
1 document
BIM Data
