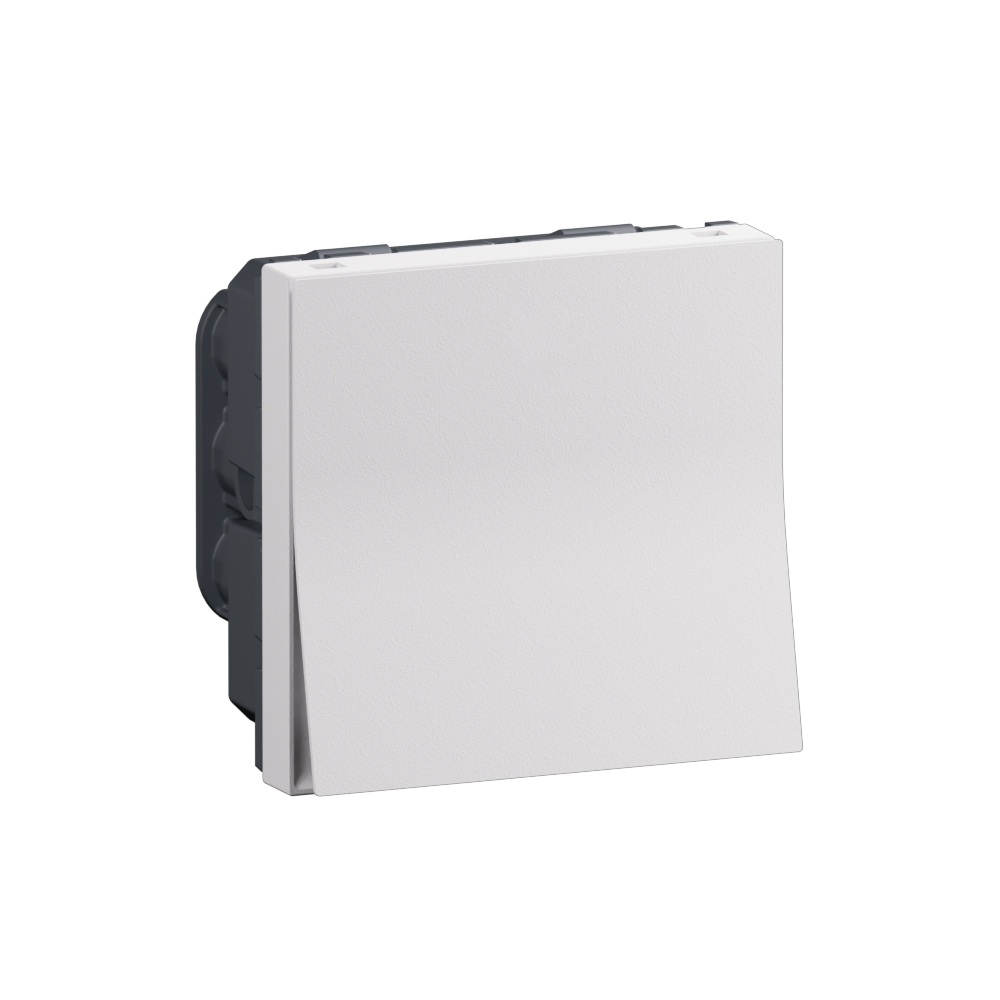

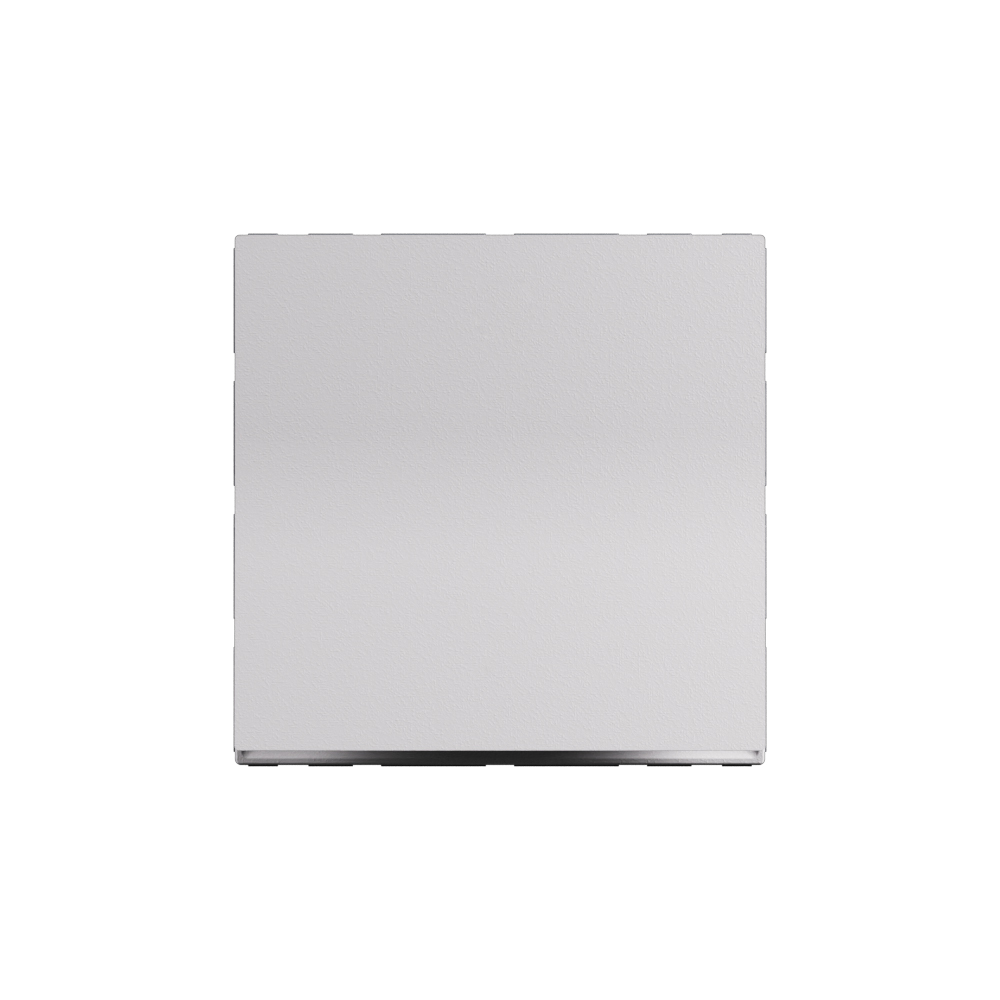

Arteor Advance - 2M intermediate switch 16AX 250V matt white - 2-module intermediate rocker 16AX 250V AC IP20

Arteor Advance Legrand

Arteor Advance - 2M intermediate switch 16AX 250V matt white - 2-module intermediate rocker 16AX 250V AC IP20

REF. AC20109MW EAN. 3414972882323
Offers a gentle touch for effortless light control with smooth, quiet operation. This 2modules 16AX 250V matt white intermediate switch controls lighting from multiple locations and handles inductive, resistive, and LED loads.
Download product sheet
You can only compare 4 products, you must remove 1 to add this one

Description

Offers a gentle touch for effortless light control with smooth, quiet operation. This 2modules 16AX 250V matt white intermediate switch controls lighting from multiple locations and handles inductive, resistive, and LED loads.

Product characteristics
  • Two-module 2M intermediate switch rated 16AX 250V AC for domestic lighting circuits
  • Matt white thermoplastic front with lacquered smooth finish, color similar to RAL 9003 for consistent aesthetics
  • Intermediate rocker switch function enabling light control from multiple locations within the same circuit
  • 16AX switching capacity suitable for full rated current on inductive and resistive SBL loads and LED luminaires
  • IP20, IK04 modular device for screw-mounted module frames with screwed terminals accepting 1mm² to 4mm² flexible or rigid conductors
Recommendation / Restriction
  • Recommended for inside use only

The product's benefits

Installation
  • Has screw-type terminals for easy and secure wire installation.
Usage
  • The switch is rated for up to 40,000 operation cycles, exceeding the standard requirements for exceptional durability.
Avantages
  • Soft touch and sound
  • Powdery white with a smooth matt aspect
  • The square format enables modularity

Technical characteristics

Wiring system Intermediate switch
Method of operation Rocker lever
Assembly arrangement Modular device for domestic switching devices
Number of modules (module system) 2
Push button switch No
Number of rockers 2
Mounting method Module frame
Type of fastening Screw mounting
With mounting plate No
Material Plastic
Material quality Thermoplastic
Halogen free Yes
Antimicrobial treatment No
Surface protection Lacquered
Surface finishing Matt
Colour White
RAL-number (similar) 9003
Colour of switch operator White
Lighting No
Function lighting Other
Type of lighting Other
Suitable for degree of protection (IP) IP20
degree of impact strength (IK) IK04
Nominal voltage 250 V
Rated current 16 A
Switching current for fluorescent lamps 16 AX
Monitoring contact No
Connection type Screwed terminal
Heating switch No
Washing machine switch No
Device width 22.5 mm
Device height 45 mm
Device depth 36.9 mm
Built-in depth 23.8 mm
Min. depth of built-in installation box 35 mm
Compatible with Apple HomeKit No
Compatible with Google Assistant No
Compatible with Amazon Alexa No
IFTTT support available No
Compliant with UK Building Regulations Part M No
Operating / setting temperature (Min-Max) -5-35 °C
Storage temperature (Min-Max) -10-70 °C
Voltage type AC
Frequency (Min-Max) 50-60 Hz
Mandatory neutral No
Terminal marking indication Yes
Terminals capacity (Min-Max) 1-4 mm²
Cable nature for connection Flexible or rigid
Cable section (Min-Max) 1-4 mm²
